RS PRO Type J Thermocouple Cable/Wire, 100m, Unscreened, Glass Fibre Insulation, +350°C Max, 7/0.2mm
- RS Stock No.:
- 827-5864
- Brand:
- RS PRO
3 In stock - FREE next working day delivery available
2 available from Europe for delivery within 2 working day(s).
Price Each
£120.53
(exc. VAT)
£144.64
(inc. VAT)
Units | Per unit |
---|---|
1 + | £120.53 |
- RS Stock No.:
- 827-5864
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

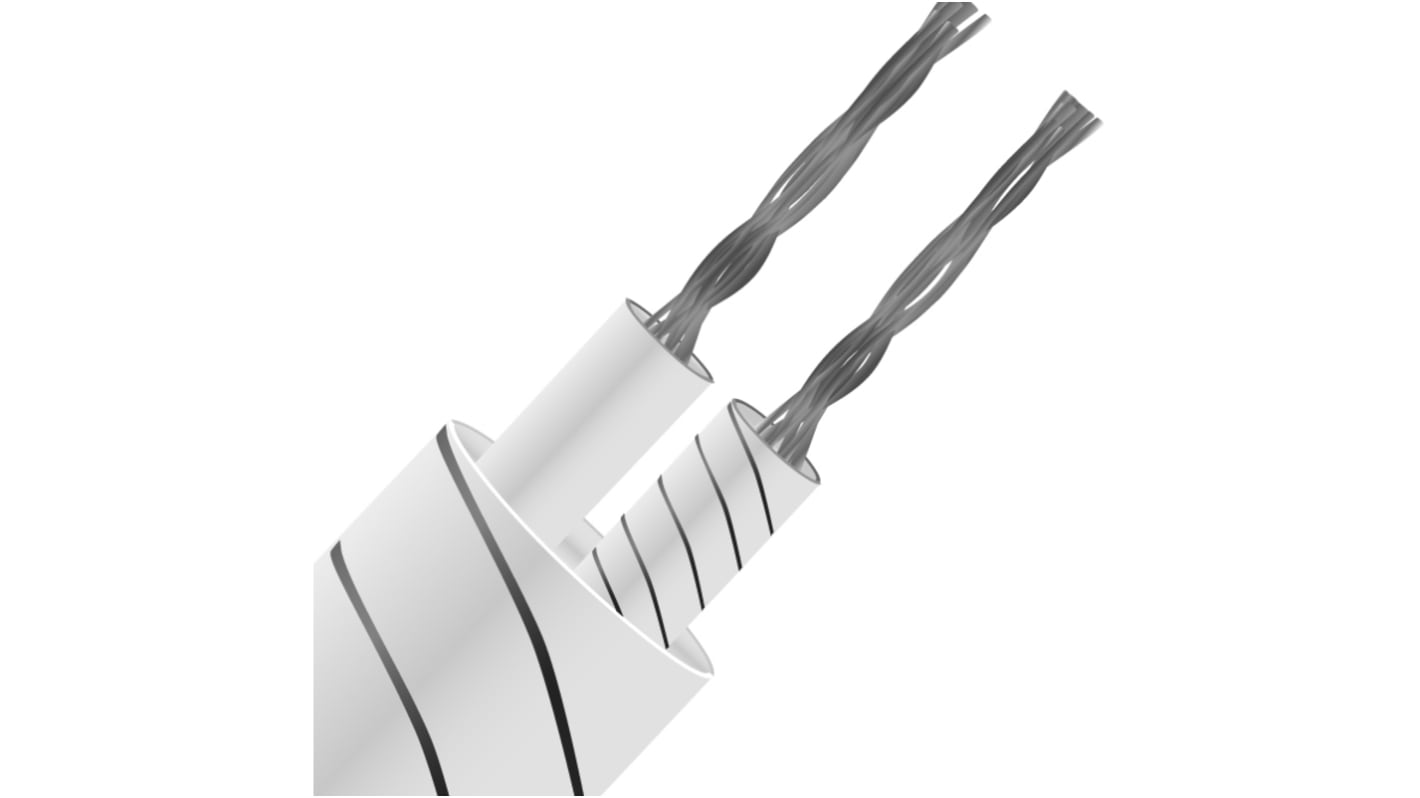

Glassfibre Flat Pair Thermocouple Cables
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Glassfibre insulated flat pair cables in thermocouple types; K, J N or T. Types KX & TX are available in solid 1/0.3mm, JX in 7/0.2mm stranded conductors. Glassfibre insulated flat pair construction, with glassfibre jacket and silicone varnish throughout. The thermocouple cables are also available with a stainless steel overbraid for added protection.
Note
Available in different reel lengths.
Specifications
Attribute | Value |
---|---|
Insulation Material | Glass Fibre |
Length | 100m |
Maximum Operating Temperature | +350°C |
Thermocouple Type | J |
Screened/Unscreened | Unscreened |
Core Strands | 7/0.2mm |
Cable Shape | Flat Pair |
Number of Strands | 2 |
Standards Met | IEC |
