RS PRO Type K Thermocouple Cable/Wire, 200m, Unscreened, PVC Insulation, +105°C Max, 7/0.2mm
- RS Stock No.:
- 827-5612
- Brand:
- RS PRO
Subtotal (1 unit)*
£137.00
(exc. VAT)
£164.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £137.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£66.69
(exc. VAT)
£80.03
(inc. VAT)
- RS Stock No.:
- 827-5612
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Insulation Material | PVC | |
| Length | 200m | |
| Thermocouple Type | K | |
| Maximum Operating Temperature | +105°C | |
| Screened/Unscreened | Unscreened | |
| Core Strands | 7/0.2mm | |
| Cable Shape | Flat Pair | |
| Number of Strands | 2 | |
| Standards Met | IEC | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Insulation Material PVC | ||
Length 200m | ||
Thermocouple Type K | ||
Maximum Operating Temperature +105°C | ||
Screened/Unscreened Unscreened | ||
Core Strands 7/0.2mm | ||
Cable Shape Flat Pair | ||
Number of Strands 2 | ||
Standards Met IEC | ||
- COO (Country of Origin):
- GB

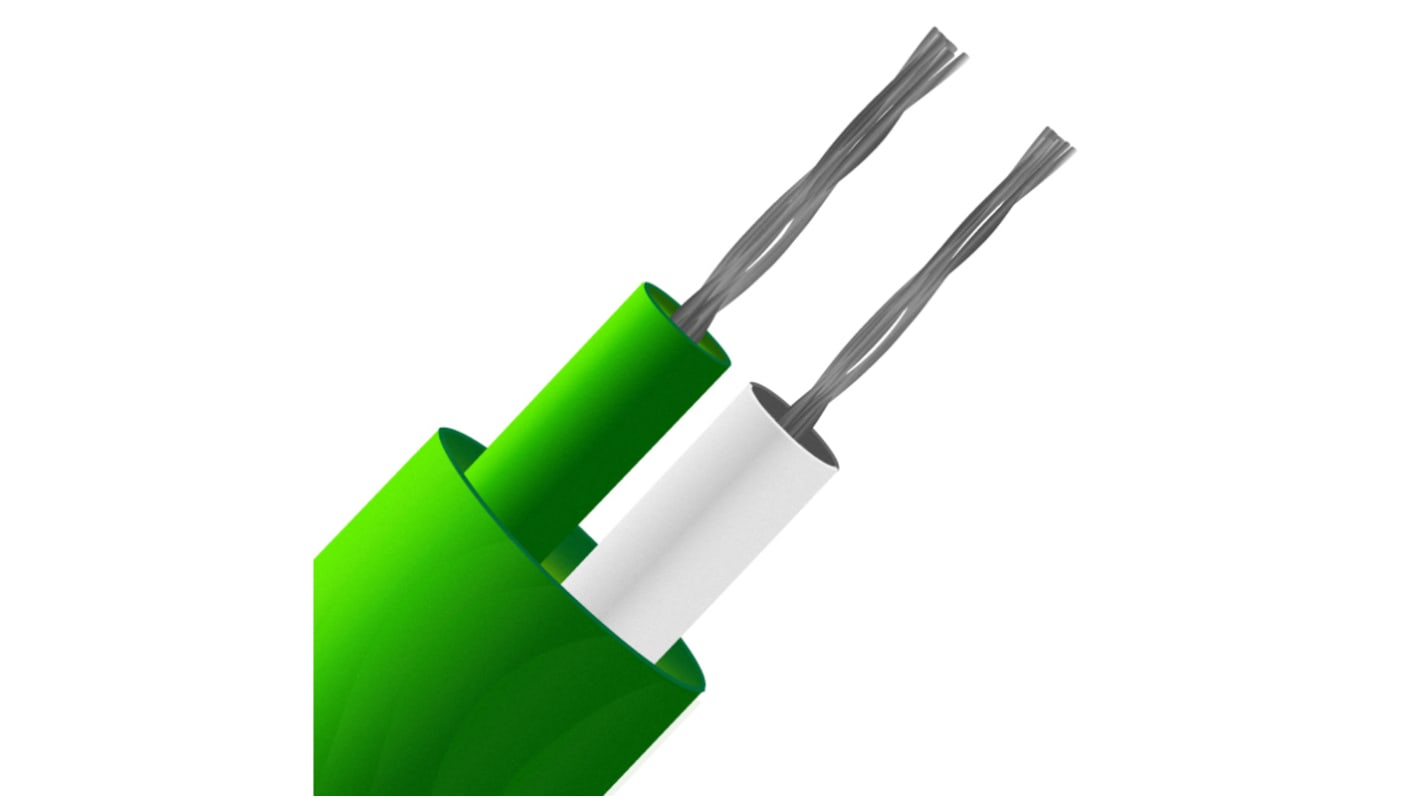

RS PRO Thermocouple and Extension Wire Type K, 200 m
Make your own thermocouples with this Type K thermocouple wire from RS PRO. For ease of use, you can weld the wires together at one end and fit the other end into a plug to connect to the thermometer. The wire comes in a 200 m length that can be cut as necessary, making the wires easy to replace when they get damaged or worn. The product's two cores are sleeved together in a single sheath, making it easy to route without the risk of the wires becoming tangled or caught.
This Type K thermocouple has wires made of nickel chromium and nickel aluminium, making it suitable for temperatures between -10°C and +105°C. This temperature range makes it a good choice for measuring the temperature of water. You'll commonly find this type of thermocouple used in industrial applications where accurate temperature measurements are important.
This Type K thermocouple has wires made of nickel chromium and nickel aluminium, making it suitable for temperatures between -10°C and +105°C. This temperature range makes it a good choice for measuring the temperature of water. You'll commonly find this type of thermocouple used in industrial applications where accurate temperature measurements are important.
Features and Benefits
• Flat pair cable shape
• Seven core strands of 0.2 mm
• PVC (polyvinyl chloride) insulation material
• Length of 200 m
• Maximum operating temperature of +105°C
• Minimum operating temperature of -10°C
• Two cores
• Seven strands
• Type K thermocouple
• Seven core strands of 0.2 mm
• PVC (polyvinyl chloride) insulation material
• Length of 200 m
• Maximum operating temperature of +105°C
• Minimum operating temperature of -10°C
• Two cores
• Seven strands
• Type K thermocouple
