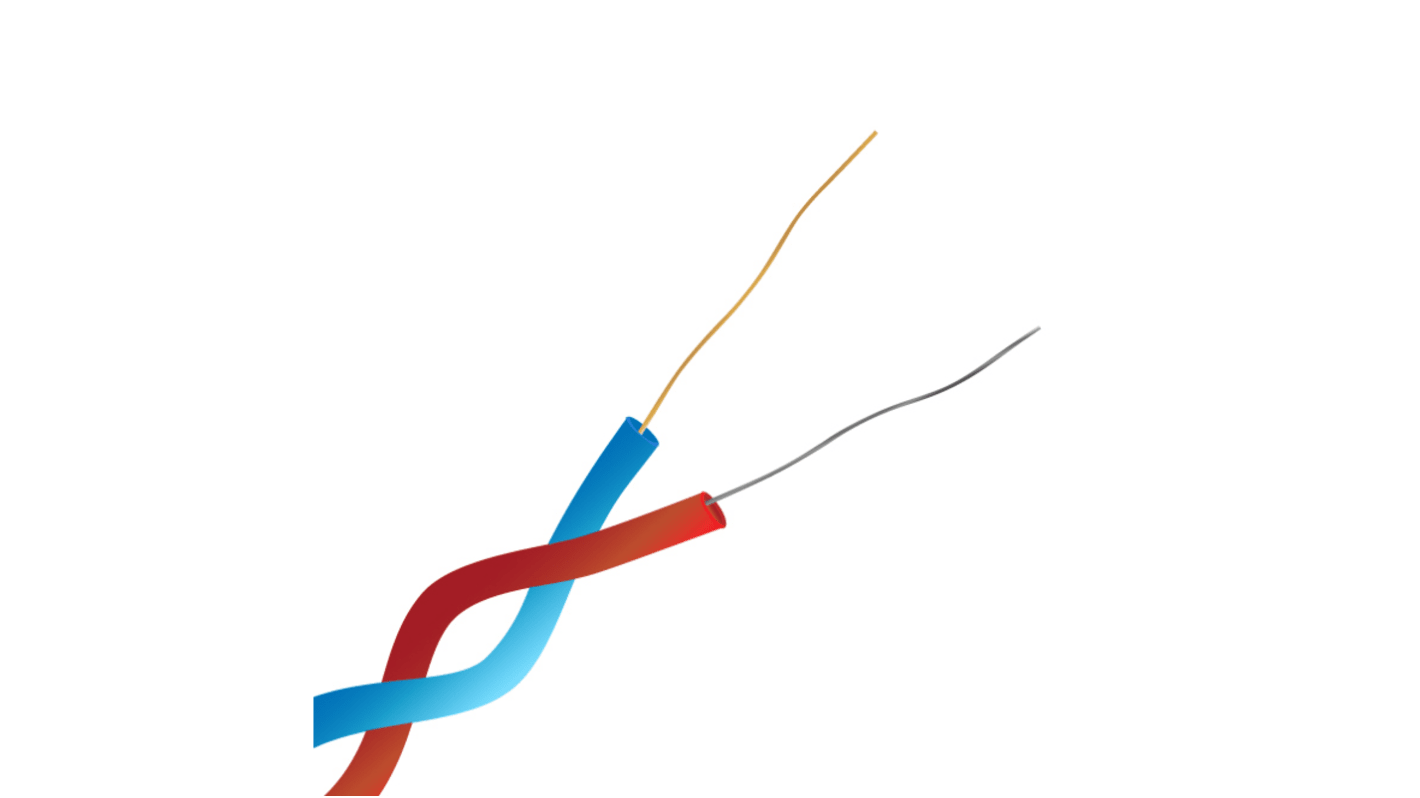

RS PRO Type T Thermocouple Cable/Wire, 25m, Unscreened, PFA Insulation, +260°C Max, 1/0.3mm
- RS Stock No.:
- 814-0080
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£17.38
(exc. VAT)
£20.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £17.38 |
5 - 9 | £16.49 |
10 + | £15.66 |
*price indicative
- RS Stock No.:
- 814-0080
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Length | 25m | |
Insulation Material | PFA | |
Maximum Operating Temperature | +260°C | |
Thermocouple Type | T | |
Screened/Unscreened | Unscreened | |
Core Strands | 1/0.3mm | |
Cable Shape | Twin Twisted | |
Number of Strands | 2 | |
Standards Met | ANSI | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Length 25m | ||
Insulation Material PFA | ||
Maximum Operating Temperature +260°C | ||
Thermocouple Type T | ||
Screened/Unscreened Unscreened | ||
Core Strands 1/0.3mm | ||
Cable Shape Twin Twisted | ||
Number of Strands 2 | ||
Standards Met ANSI | ||
- COO (Country of Origin):
- GB
RS PRO Thermocouple and Extension Wire Type T, 100 m
Need to measure extreme temperatures? Use this RS PRO thermocouple and extension wire. It's suitable for use in a range of applications as its nickel chromium and nickel alloy wires can withstand temperatures of -75ºC to +260ºC.
The cable's twisted shape reduces noise and interference for more accurate measurements. It comes in a convenient length of 100 metres, so you can easily cut the wire to suit your needs. Its PFA (perfluoroalkoxy) Teflon insulation provides resistance to oils, acids and steam, making it suitable for use in harsh environments.
For ease of installation, the wires are thin and flexible enough to fit into tight spaces. You'll commonly find thermocouples made from this wire in demanding industrial applications involving high temperatures.
The cable's twisted shape reduces noise and interference for more accurate measurements. It comes in a convenient length of 100 metres, so you can easily cut the wire to suit your needs. Its PFA (perfluoroalkoxy) Teflon insulation provides resistance to oils, acids and steam, making it suitable for use in harsh environments.
For ease of installation, the wires are thin and flexible enough to fit into tight spaces. You'll commonly find thermocouples made from this wire in demanding industrial applications involving high temperatures.
Features and Benefits
- Twisted cable shape
- One core strand of 0.3 mm
- PFA (perfluoroalkoxy) Teflon insulation material
- Length of 100 m
- Maximum operating temperature of +260ºC
- Minimum operating temperature of -75°C
- Two cores
- One strand
- Type T thermocouple
