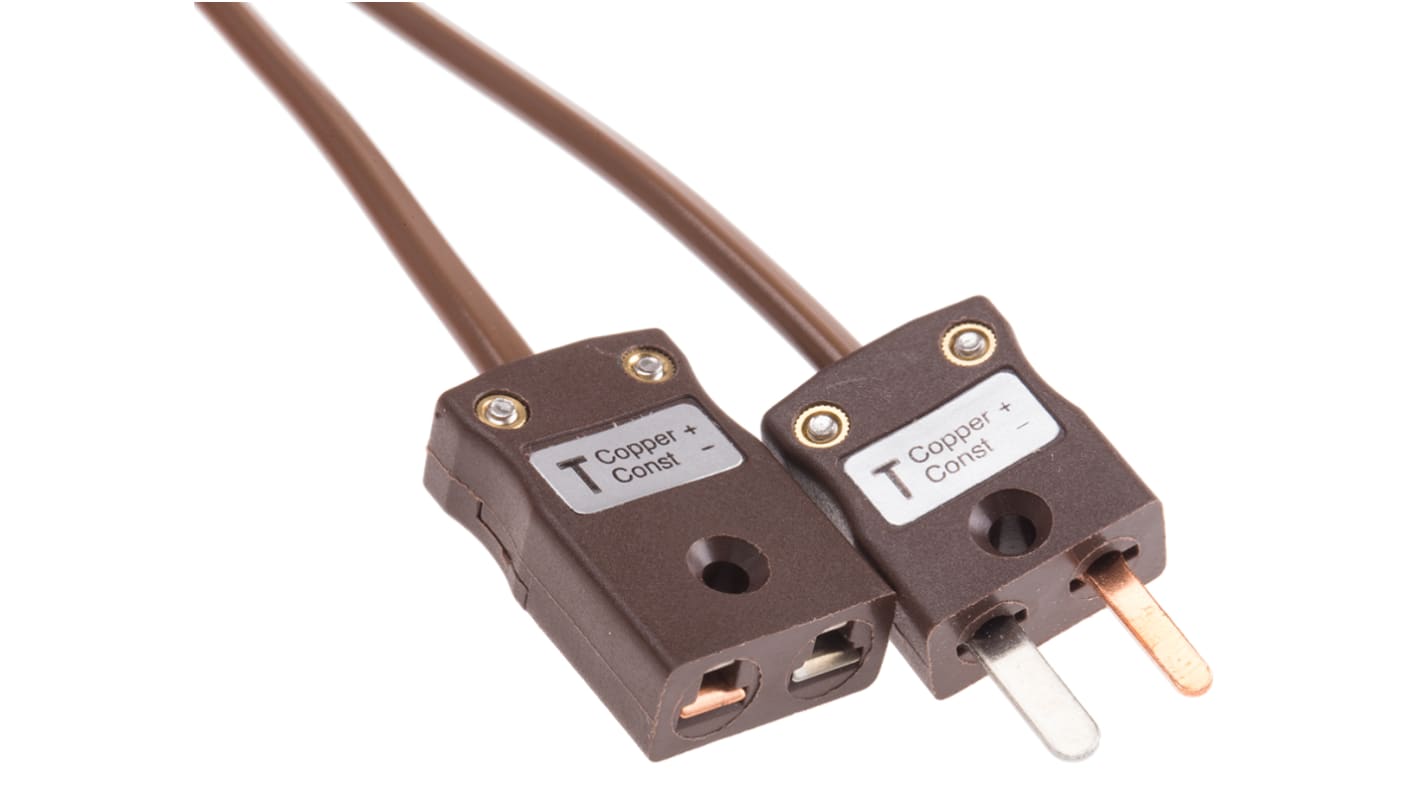

Extension Cable Type T, -10 → +220 °C 2 Core PVC Sheath 5m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Thermocouple Extensions Leads

A range of thermocouple extension leads in types K, J, T and N available with either a miniature or standard IEC connector. The thermocouple extension leads are available in 2 m, 5 m and 10 m lengths.

Cable Construction:

PVC insulated cable
IEC colour coded
Laid flat, side by side & PVC sheathed
Insulation rating -10 → 105 °C

Miniature connector (flat plug pins) or standard connector (solid, round plug pins) versions available
Contacts are polarised to prevent incorrect connection

Specifications
Attribute Value
Thermocouple Type T
Number of Cores 2
Length 5m
Minimum Operating Temperature -10°C
Maximum Operating Temperature +220°C
Core Strands 7/0.2 mm
Insulation Material PVC
Cable Shape Multicore
Number of Strands 7
Size of Strands 0.2 mm
Standards Met IEC, RoHS Compliant
66 In stock for FREE next working day delivery
Price Each
£ 16.81
(exc. VAT)
£ 20.17
(inc. VAT)
Units
Per unit
1 - 4
£16.81
5 - 9
£15.96
10 +
£15.14
