RS PRO Type K Thermocouple Cable/Wire, 10m, Unscreened, Glass Fibre Insulation, +350°C Max, 1/0.315mm
- RS Stock No.:
- 151-209
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 reel of 10 metres)*
£13.33
(exc. VAT)
£16.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 271 unit(s) ready to ship
- Plus 33 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | £13.33 | £1.333 |
| 5 - 9 | £12.65 | £1.265 |
| 10 + | £12.00 | £1.20 |
*price indicative
- RS Stock No.:
- 151-209
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Insulation Material | Glass Fibre | |
| Length | 10m | |
| Maximum Operating Temperature | +350°C | |
| Thermocouple Type | K | |
| Screened/Unscreened | Unscreened | |
| Core Strands | 1/0.315mm | |
| Cable Shape | Flat Pair | |
| Number of Strands | 2 | |
| Size of Strands | 0.3 mm | |
| Standards Met | BS | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Insulation Material Glass Fibre | ||
Length 10m | ||
Maximum Operating Temperature +350°C | ||
Thermocouple Type K | ||
Screened/Unscreened Unscreened | ||
Core Strands 1/0.315mm | ||
Cable Shape Flat Pair | ||
Number of Strands 2 | ||
Size of Strands 0.3 mm | ||
Standards Met BS | ||
- COO (Country of Origin):
- GB

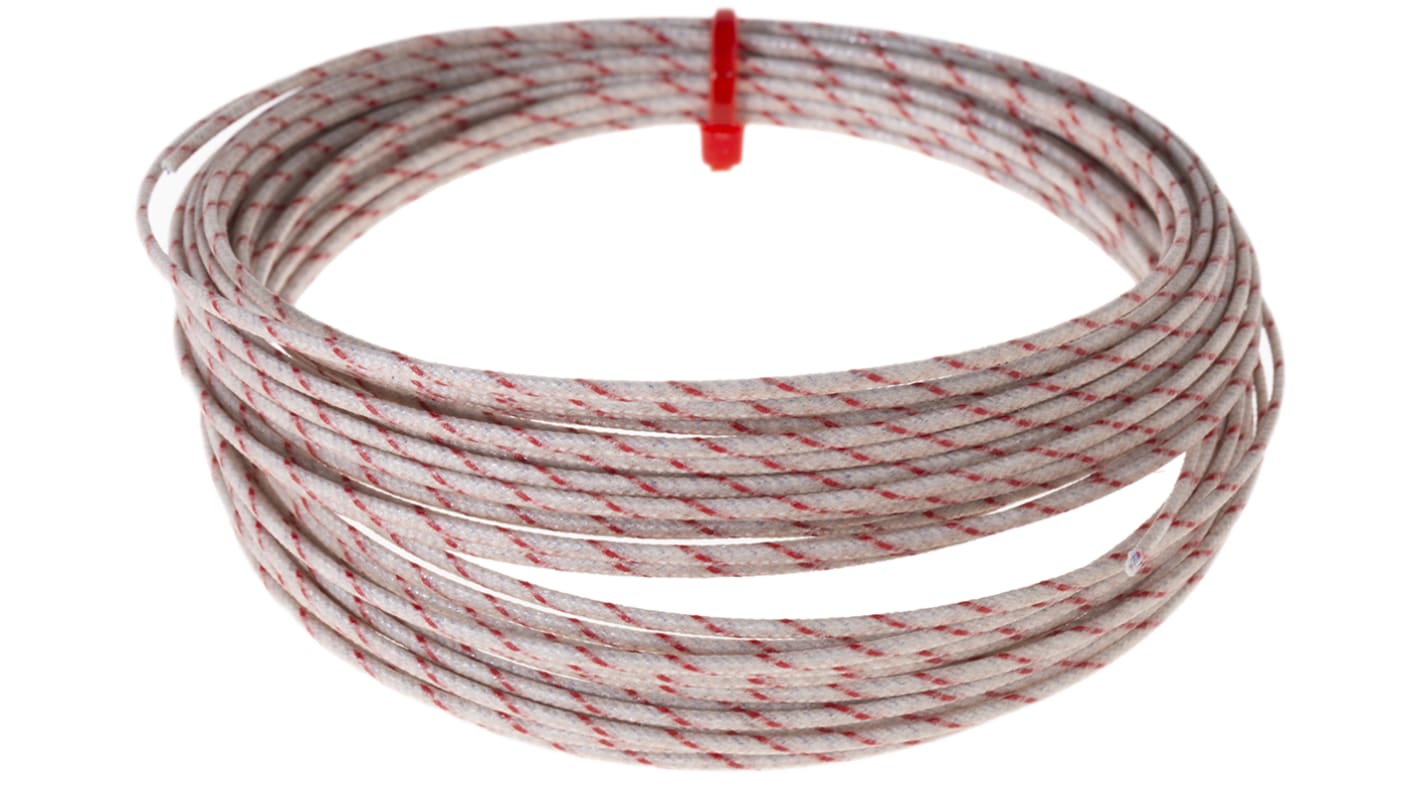

RS PRO KX Extension Cable
This extension cable is suitable for lengthening thermocouple leads without introducing an unwanted electromagnetic field (EMF). It's a KX (extension type) cable with a positive conductor made of Chromel and a negative conductor made of Alumel, designed to extend Type K thermocouples. The overall glass fibre insulation means the cable has a high resistance to bending and damage. It also protects you from electric shock, making the component safe to use and acts as a shield for electromagnetic interference (EMI) to provide seamless transmission.
With an operating temperature range of between -75°C and +480°C, this cable is capable of withstanding harsh environmental conditions. It's also 10 m long, which means it can cover a large distance while still operating effectively.
With an operating temperature range of between -75°C and +480°C, this cable is capable of withstanding harsh environmental conditions. It's also 10 m long, which means it can cover a large distance while still operating effectively.
Features and Benefits
• Single-core cable shape
• One core strand of 0.3 mm
• Fibreglass insulation material
• Length of 10 m
• Operating temperature range of -75°C to +480°C
• One core
• Unscreened
• Meets British Standards (BS) 1843 and is RoHS (Restriction of Hazardous Substances) compliant
• Type K thermocouple
• One core strand of 0.3 mm
• Fibreglass insulation material
• Length of 10 m
• Operating temperature range of -75°C to +480°C
• One core
• Unscreened
• Meets British Standards (BS) 1843 and is RoHS (Restriction of Hazardous Substances) compliant
• Type K thermocouple
