RS PRO RS-984 USB, Wi-Fi Thermal Imaging Camera, -20 → +550 °C, 120 x 120pixel Detector Resolution With RS

View all Thermal Imaging Cameras

Subtotal (1 unit)*

£1,078.46

(exc. VAT)

£1,294.15

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,078.46

*price indicative

RS Stock No.:
279-6347
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Temperature Measurement Range

-20 → +550 °C

Detector Resolution

120 x 120pixel

Interface Type

USB, Wi-Fi

Model Number

RS-984

Thermal Sensitivity

100mK

Best Temperature Measurement Accuracy

Blow 100°C ±2°C or 2% of readings whichever is greater

Focus Type

Focus-Free

Calibrated

RSCAL

Refresh Rate

25Hz

Minimum Focus Distance

0.5m

Display Size

3.5in

Accuracy

Blow 100°C ±2°C or 2% of readings whichever is greater

Vertical Field of View

37°

Field of View

50 x 37°

Dimensions L x W x D

224 x 77 x 96mm

Visual Camera

Yes

Image Storage

Internal Storage, Micro SD Card

Maximum Temperature Measurement

+550 °C

Dimensions

224 x 77 x 96mm

Horizontal Field of View

50°

Application

Thermal Imaging

Spatial Resolution IFOV

7.6mrad

Depth

96mm

COO (Country of Origin):
CN

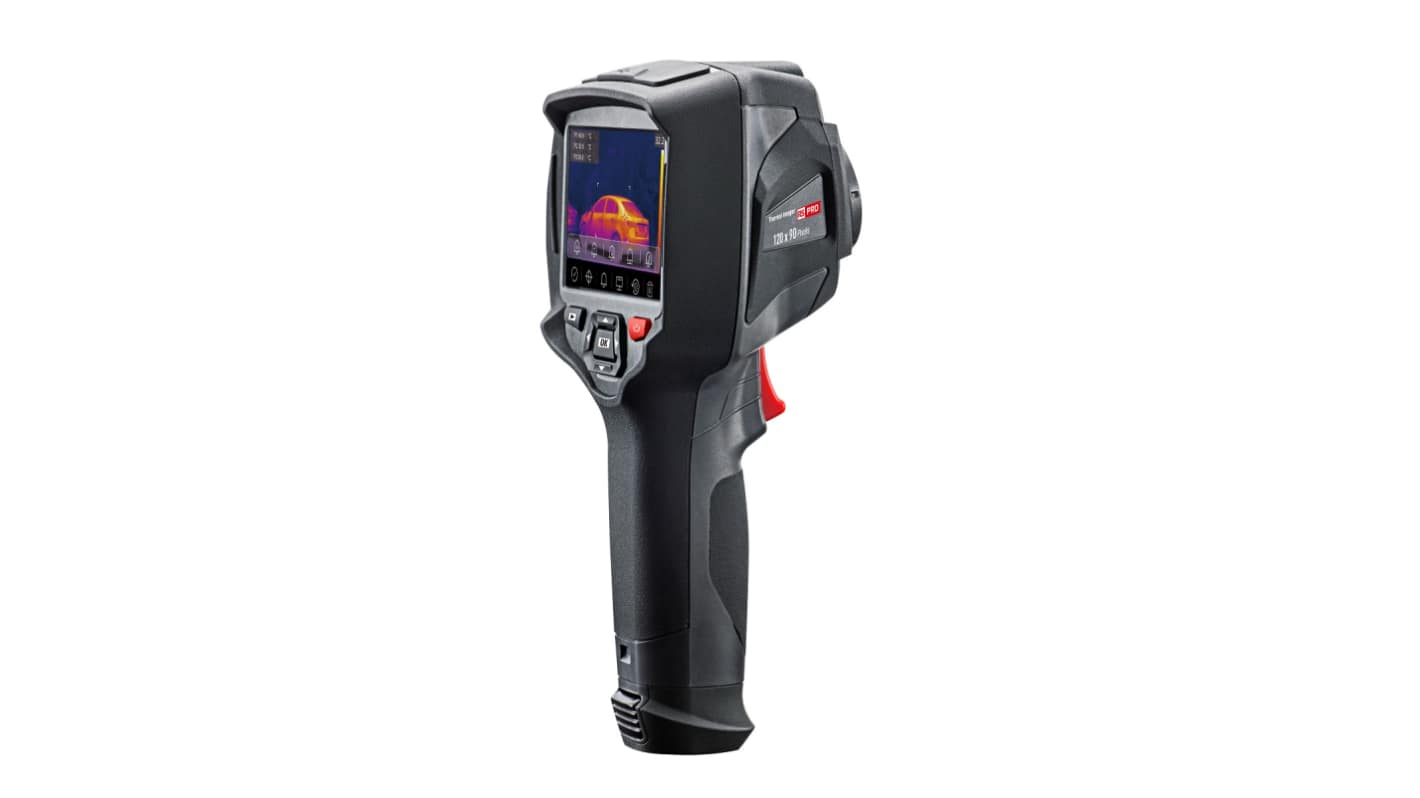

RS PRO 550°C Thermal Imaging Camera with 3.5in LCD Screen (RS-984)


A rugged thermal imaging camera perfect for predictive maintenance applications and equipment trouble shooting. Featuring easy one handed operation the thermal camera will capture and display the thermal and visual reading on the LCD display simply by focusing the lens.

Once focussed the thermal camera can display and record audio and video capturing it on the internal storage or a Micro SD card for straightforward transfer to a PC or laptop. Interface connections include both USB C and Wi-Fi.

The thermal imager displays IR and Visual image with Zoom ability for closer inspection.

The cameras Li-ion battery will run for a total of 4 continuous hours between charges, with Auto shutdown to save battery life, and can be charged via the adaptor supplied.

The thermal cameras robust design is well suited to an industrial environment tested and protected against falls of up to 2m due to its hardwearing Polycarbonate and ABS construction.

Features and Benefits


120 x 90 pixel IR resolution

50 x 37° field of view

3.5in LCD display

IR and Visual image

Centre spot and 3 manual spots

Focus free

Zoom

IP54 rated

PC and ABS construction

USB C / Wi-Fi connections

Auto shutdown

3.4GB internal memory

4 hour runtime

Li-ion rechargeable battery with power adaptor
