MPN

RS PRO Bluetooth, USB, Wi-Fi Thermal Imaging Camera with WiFi, -20 °C→+ 400 °C, 160 x 120pixel Detector Resolution With

RS Stock No.:: 230-9423
Brand:: RS PRO

RS PRO Bluetooth, USB, Wi-Fi Thermal Imaging Camera with WiFi, -20 °C→+ 400 °C, 160 x 120pixel Detector Resolution With

Subtotal (1 unit)*

£1,706.82

(exc. VAT)

£2,048.18

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

6 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,706.82

*price indicative

RS Stock No.:: 230-9423
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Temperature Measurement Range	-20 °C→+ 400 °C
	Detector Resolution	160 x 120pixel
	Display Resolution	640 x 480pixel
	Interface Type	Bluetooth, USB, Wi-Fi
	Thermal Sensitivity	<50mK
	Focus Type	Manual
	Calibrated	RSCAL
	Refresh Rate	50Hz
	Minimum Focus Distance	0.3m
	Display Size	3.5in
	Image Storage	Micro SD Card
	Model Number p	RS-9887
	Field of View	41.5° x 31.1°
	Optional Lenses	None
	Visual Camera	Yes
	Dimensions	243 x 103 x 160mm
	Accuracy	±2 °C
	Spatial Resolution IFOV	2.28mrad
	Other Built-in Measurements	None
	IR/Visual Image Combination	Full IR, Picture-in-Picture, Visible
	Battery Level Indicator	Yes
	Emissivity	0.01∼1.0
	Application	Electrical, HVAC, Industrial, Residential
	Maximum Temperature Measurement	+400 °C
	Weight	920g

	Select all
	Brand RS PRO
	Temperature Measurement Range -20 °C→+ 400 °C
	Detector Resolution 160 x 120pixel
	Display Resolution 640 x 480pixel
	Interface Type Bluetooth, USB, Wi-Fi
	Thermal Sensitivity <50mK
	Focus Type Manual
	Calibrated RSCAL
	Refresh Rate 50Hz
	Minimum Focus Distance 0.3m
	Display Size 3.5in
	Image Storage Micro SD Card
	Model Number p RS-9887
	Field of View 41.5° x 31.1°
	Optional Lenses None
	Visual Camera Yes
	Dimensions 243 x 103 x 160mm
	Accuracy ±2 °C
	Spatial Resolution IFOV 2.28mrad
	Other Built-in Measurements None
	IR/Visual Image Combination Full IR, Picture-in-Picture, Visible
	Battery Level Indicator Yes
	Emissivity 0.01∼1.0
	Application Electrical, HVAC, Industrial, Residential
	Maximum Temperature Measurement +400 °C
	Weight 920g

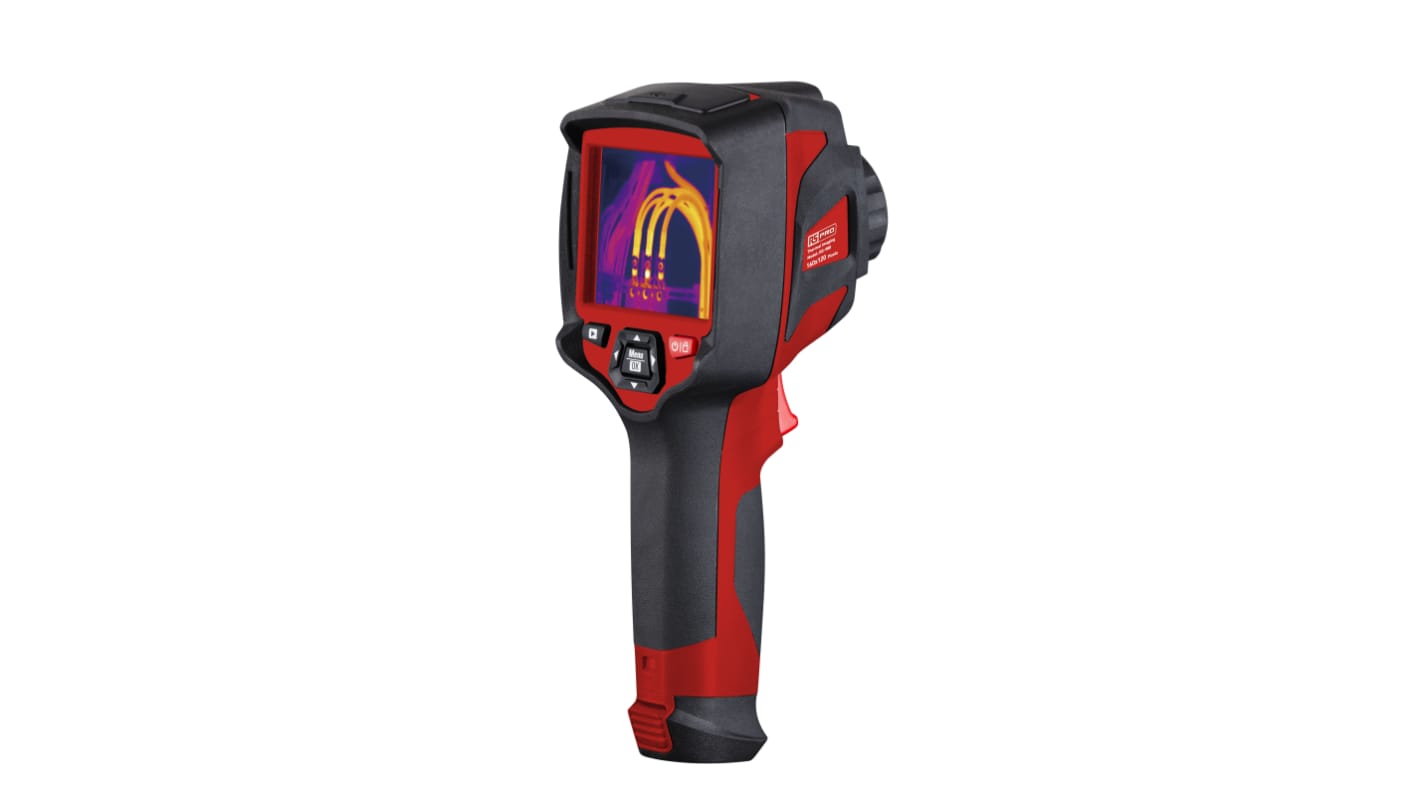

RS PRO RS-988 Thermal Imaging Camera with Wi-Fi Connectivity

Introducing the RS PRO RS-988 Thermal Imaging Camera with Wi-Fi capability. This high-quality infrared (IR) thermal camera provides accurate and reliable thermal detection and measurement, by combining all the important features for thermographic measurement at an affordable price. This hi-tech thermal imager is used as a non-contact method to visualise temperature differences and is suitable for use across a wide range of applications like inspection work or preventative maintenance tasks. The drop-proof, compact and lightweight design makes this an ideal thermal imager to have with you to save time and be able to get quick and precise thermal readings, while the built-in wireless connectivity function allows for easy transfer of data for further analysis at the user’s convenience. This robust RS PRO thermal camera is a versatile and essential companion for engineers and technicians working in the service and maintenance industries.

Features and Benefits:

The RS PRO RS-988 hand-held thermal camera provides accurate, fast and reliable temperature measurement using infrared point and shoot technology and high-quality thermal imaging

Thermal images are displayed on the large, 640x480 pixel LCD screen, producing superior image quality and making the results easy to read, displaying critical temperature conditions

The state-of-the-art camera has the ability for data logging via the internal memory, while the built-in Wi-Fi instant share function allows for easy transfer of data to the user’s smartphone or Wi-Fi-enabled device for further investigation

With a 4-hour battery life and an easy-to-use interface, this thermal imaging unit is ideal for predictive maintenance, equipment troubleshooting and verification

The compact, rugged and lightweight design allows for optimum portability and performance, even in harsh working conditions

Object temperature range of -20°C to 150°C (low range) / 0°C to 650°C (high range)

Supplied with battery, App software, adaptor, USB cable, and convenient carry case for easy storage and protection of the unit when not in use

Applications:

Thermal Imaging Cameras are handheld devices that are most often used for predictive maintenance, equipment troubleshooting and verification. Thermal images are displayed on a screen and the data logging capacity enables the user to save images to the camera’s internal memory. For easy connectivity, most Thermal Cameras are now equipped with Wi-Fi or Bluetooth instant share functionality, allowing thermal images can be transferred to smartphones for quick reporting and analysis. Thermal Imaging Cameras are used in:

HVAC

Construction and building

Industrial and automation

How does a Thermal Imaging Camera work?

Thermal Imaging cameras create thermal images, also known as a thermogram, through a process called Thermography. This allows the user to visualise heat sources in real-time, making temperature measurements more accurate.

Can Thermal Imaging Cameras see through objects?

Whilst Thermal Imaging Cameras can't see through objects, they can detect heat sources produced on the surface of objects, such as locating a fire or heat source behind a wall.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
