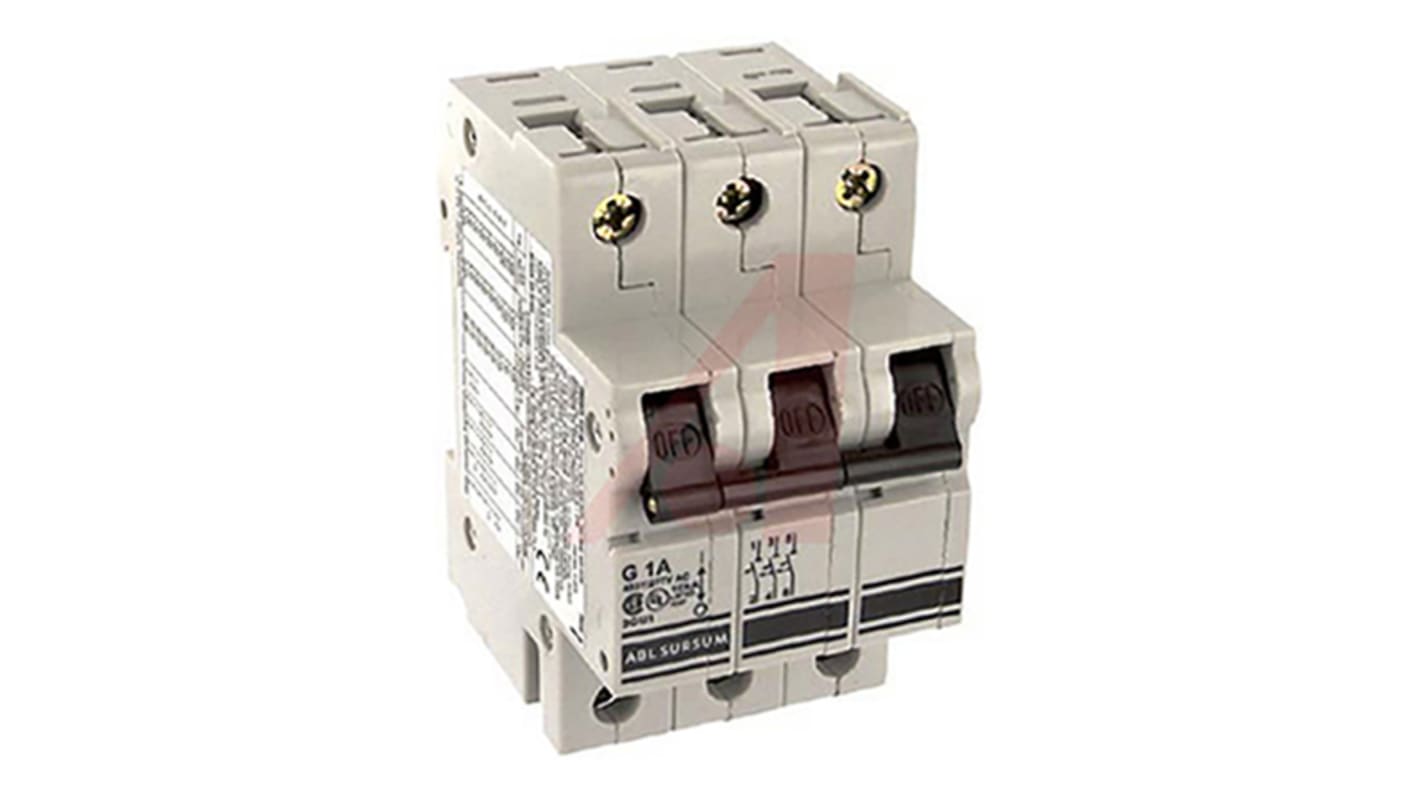

Altech Motor Protection Circuit Breaker - V-EA 3 Pole 480Y/277V Voltage Rating DIN Rail Mount, 1A Current Rating

View all Thermal Breakers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
899-9100
Mfr. Part No.:
3GU1
Brand:
Altech
Find similar products by selecting one or more attributes.
Select all

Brand

Altech

Current Rating

1A

Number of Poles

3

Voltage Rating

480Y/277V

Series

V-EA

Tripping Mechanism

Thermal-Magnetic

Reset Actuator Type

Handle

Tripping Characteristics

Type G

Rated AC Voltage

480Y/277V

Mounting Style

DIN Rail Mount

Circuit Breaker Type

MCCB

Overall Dimensions

93.3 x 52.5 x 74.7mm

Break Time

Time Delay

Terminal Contact Type

Box Clamp, Ring Tongue Terminal

Overall Length

93.3mm

Special Features

IP20 Terminal Protection

Overall Depth

74.7mm

Breaking Capacity at Maximum Voltage Rating

10 kA

COO (Country of Origin):
DE

Altech V-EA Series MCBs G Characteristic


Altech V-EA series MCBs suitable for motor disconnect, overload protection, general purpose AC use, AC resistance, AC discharge lamps and AC incandescent lamps.

DIN Rail Mounted
17.5mm width per pole
Thermal Magnetic
480Y / 277 V ac 50/60Hz
10 kA Short Circuit Withstand Capacity


Altech MCBs
