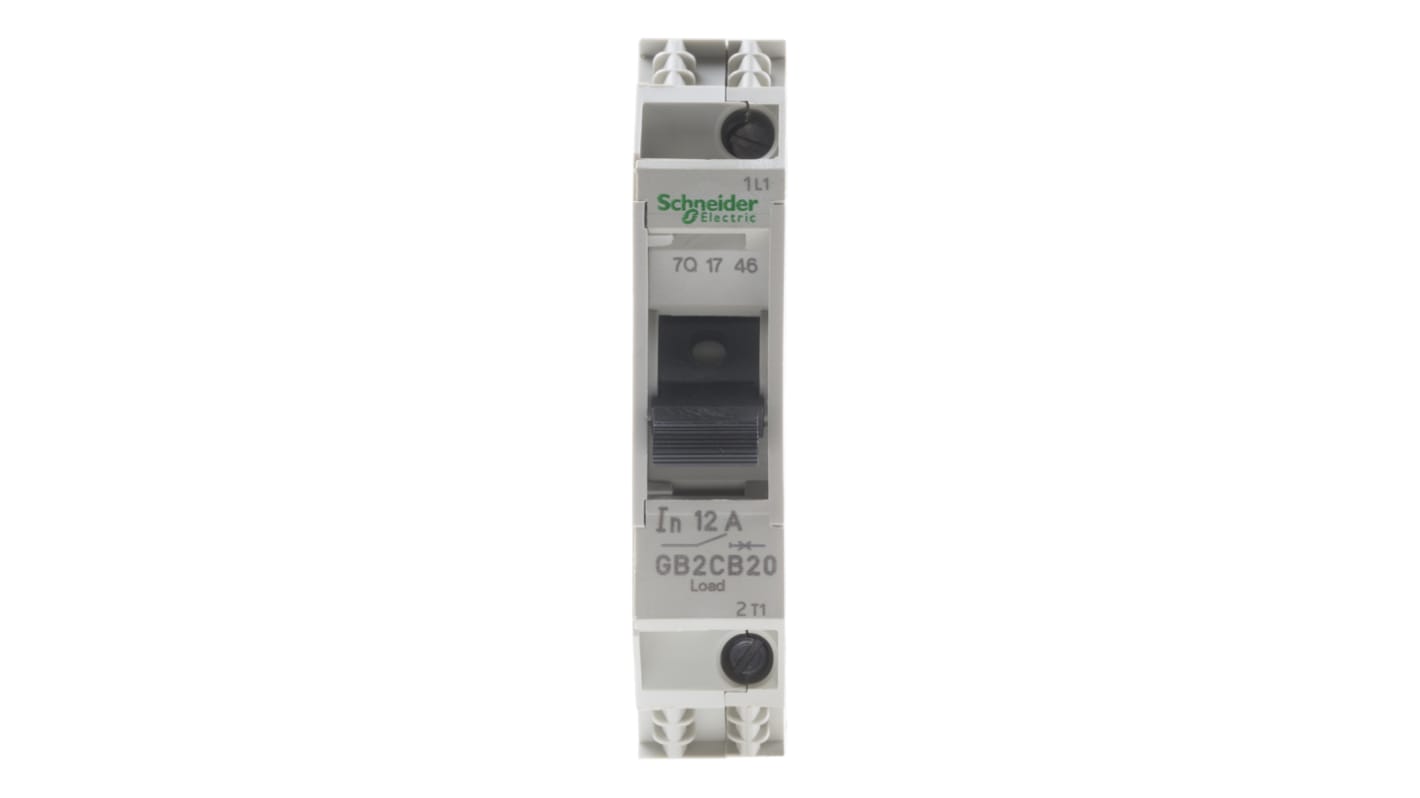

Schneider Electric Thermal Circuit Breaker - GB2 Single Pole 277V ac Voltage Rating DIN Rail Mount, 12A Current Rating
- RS Stock No.:
- 312-3724
- Mfr. Part No.:
- GB2CB20
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£27.45
(exc. VAT)
£32.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.45 |
*price indicative
- RS Stock No.:
- 312-3724
- Mfr. Part No.:
- GB2CB20
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 12A | |
| Number of Poles | 1 | |
| Voltage Rating | 277 V ac, 415V ac | |
| Width | 15mm | |
| Series | GB2 | |
| Mounting Style | DIN Rail Mount | |
| Overall Depth | 82mm | |
| Overall Length | 74mm | |
| Overall Dimensions | 74 x 15 x 82mm | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
| Breaking Capacity at Maximum Voltage Rating | 1.5 kA | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 12A | ||
Number of Poles 1 | ||
Voltage Rating 277 V ac, 415V ac | ||
Width 15mm | ||
Series GB2 | ||
Mounting Style DIN Rail Mount | ||
Overall Depth 82mm | ||
Overall Length 74mm | ||
Overall Dimensions 74 x 15 x 82mm | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
Breaking Capacity at Maximum Voltage Rating 1.5 kA | ||
Non Compliant
GB2 Thermal Magnetic Circuit Breakers
DIN rail mounted, mechanically reset protection devices.
Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc
Rated operational voltage of 415V
74mm high; depth 67mm (1P) 70mm (2P)
Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc
Rated operational voltage of 415V
74mm high; depth 67mm (1P) 70mm (2P)
Standards
IEC947-2
