Hirschmann Test & Measurement, 32A, 1000V ac/dc, Red, 250mm Lead Length
- RS Stock No.:
- 884-8894
- Mfr. Part No.:
- 934071101
- Brand:
- Hirschmann Test & Measurement
Bulk discount available
Subtotal (1 unit)*
£8.92
(exc. VAT)
£10.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 57 unit(s) shipping from 20 October 2025
- Plus 13 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.92 |
| 10 - 24 | £8.26 |
| 25 + | £7.59 |
*price indicative
- RS Stock No.:
- 884-8894
- Mfr. Part No.:
- 934071101
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Lead Length | 250mm | |
| Current Rating | 32A | |
| Test Lead Type | 4 mm Connector Test Leads | |
| Colour | Red | |
| Voltage Rating | 1000V ac/dc | |
| Connector A Gender | Male | |
| Connector B Gender | Male | |
| Connector A Shrouded | Yes | |
| Connector B Shrouded | Yes | |
| Connector A Stackable | Yes | |
| Connector B Stackable | Yes | |
| Connector A Orientation | Straight | |
| Connector B Orientation | Straight | |
| Contact Material | Beryllium Copper | |
| Insulation Material | PA | |
| Safety Category Level | CAT III | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +70°C | |
| Operating Temperature Range | -15 → +70 °C | |
Select all | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Lead Length 250mm | ||
Current Rating 32A | ||
Test Lead Type 4 mm Connector Test Leads | ||
Colour Red | ||
Voltage Rating 1000V ac/dc | ||
Connector A Gender Male | ||
Connector B Gender Male | ||
Connector A Shrouded Yes | ||
Connector B Shrouded Yes | ||
Connector A Stackable Yes | ||
Connector B Stackable Yes | ||
Connector A Orientation Straight | ||
Connector B Orientation Straight | ||
Contact Material Beryllium Copper | ||
Insulation Material PA | ||
Safety Category Level CAT III | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +70°C | ||
Operating Temperature Range -15 → +70 °C | ||
- COO (Country of Origin):
- DE

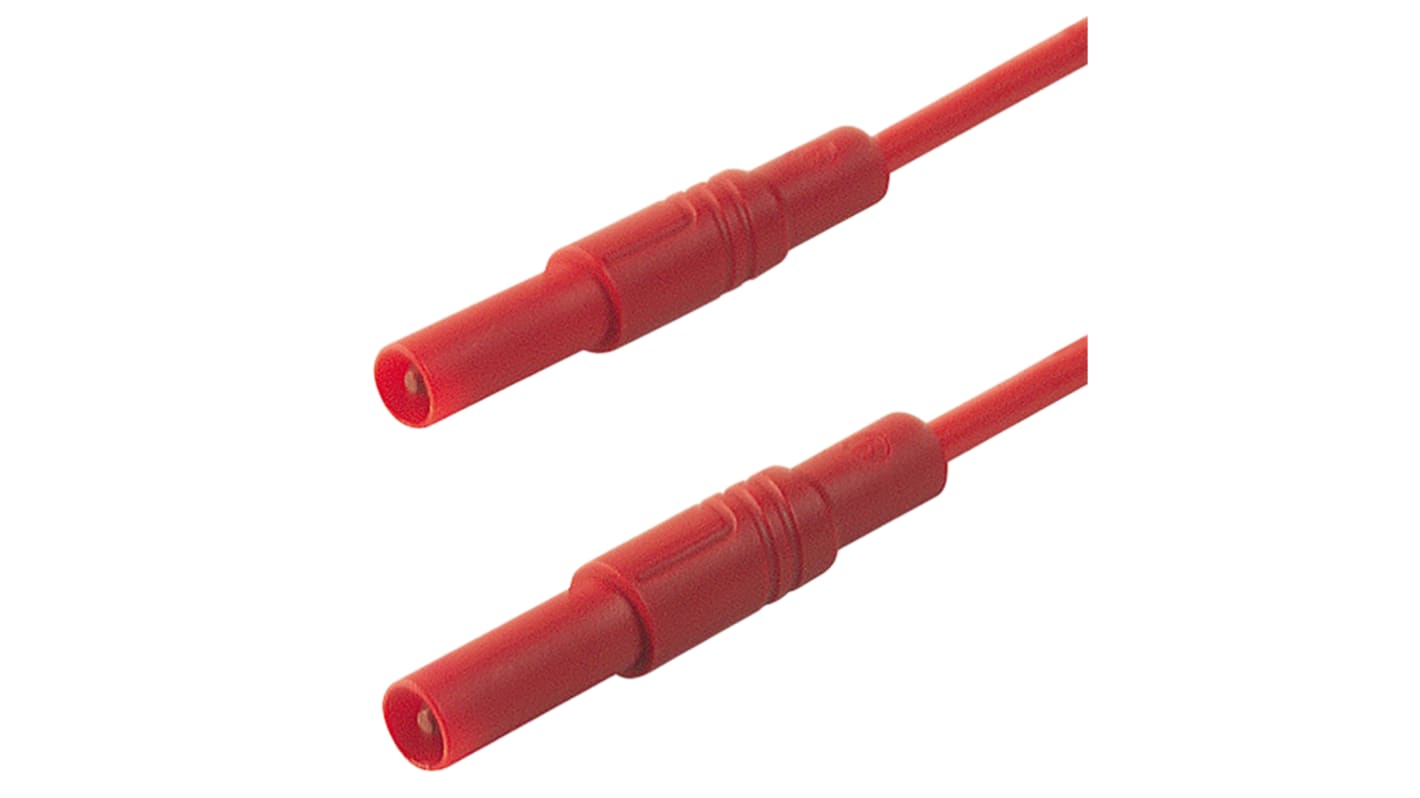

MLS GG 25/2.5 CAT III 4mm Measuring Leads, 25cm
Hirschmann Test and Measurement MLS GG 25/2.5 4mm CAT III measuring leads have a 4mm diameter safety connector with a straight outlet. These 25cm long MLS GG 25/2.5 measuring and test leads have a nickel plated copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve. The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.
Features and Benefits
Rated voltage 1000 VAC/DC
Rated current 32A
CAT III
PVC Insulated
25cm in length
Wire stranding 320 x 0.10mm
Contact resistance 12 mΩ
Rated current 32A
CAT III
PVC Insulated
25cm in length
Wire stranding 320 x 0.10mm
Contact resistance 12 mΩ
