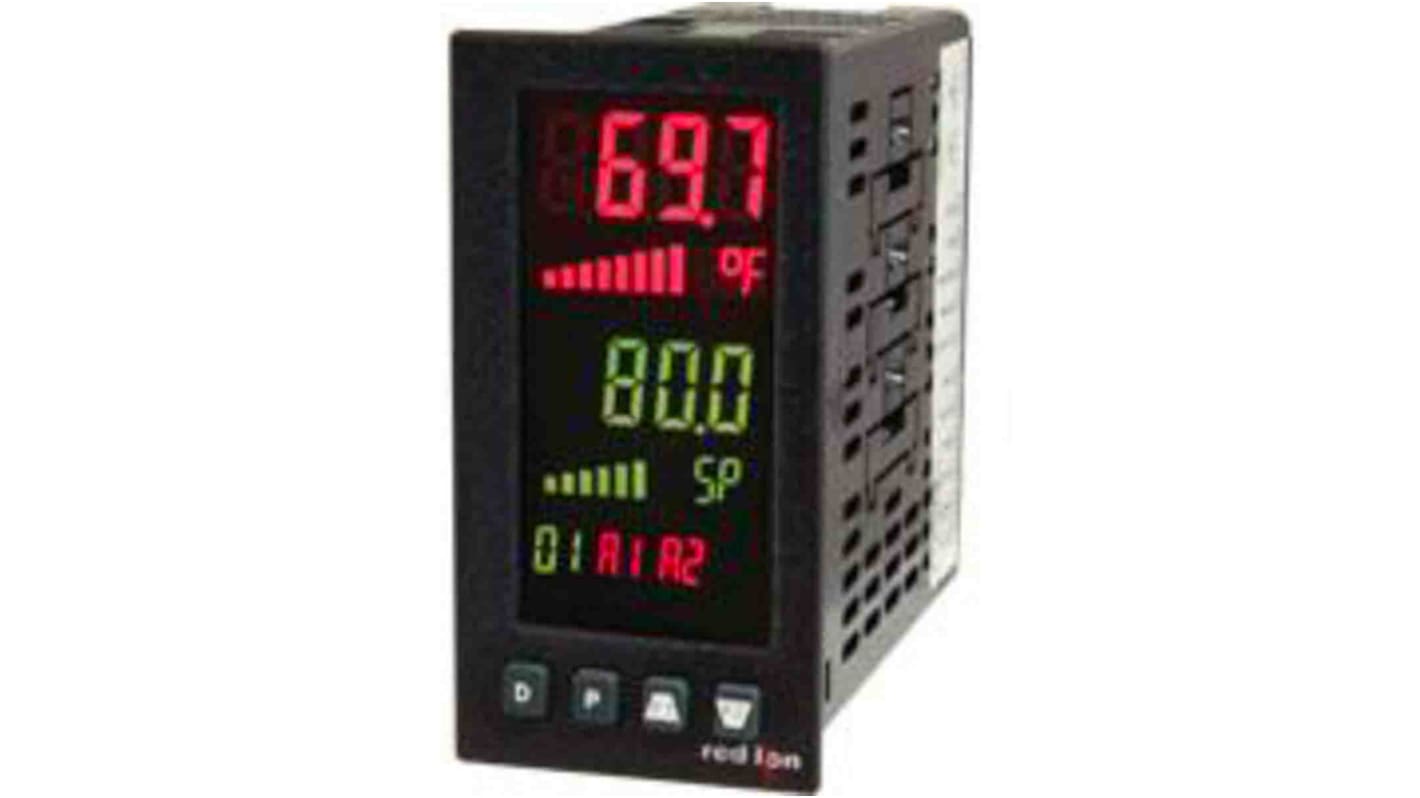

Red Lion PX2CV Panel Mount PID Temperature Controller, 49.53 x 96.52mm 1 Input, 1 Output Analogue, 21.6 → 250 V
- RS Stock No.:
- 195-9193
- Mfr. Part No.:
- PX2CVR00
- Brand:
- Red Lion
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 195-9193
- Mfr. Part No.:
- PX2CVR00
- Brand:
- Red Lion
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Red Lion | |
| Output Type | Analogue | |
| Supply Voltage | 21.6 → 250 V dc, 40 → 250 V ac | |
| Size | 49.53 x 96.52mm | |
| Number of Inputs | 1 | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +50°C | |
| Temperature Range | 0 → +1768 (R Type) °C, 0 → +1768 (S Type) °C, 0 → +2315 (C Type) °C, -200 → +400 (T Type) °C, -200 → +750 (E Type) °C, -200 → +760 (J Type) °C, -200 → +1250 (K Type) °C, -200 → +1300 (N Type) °C, +150 → +300 (B Type) °C, +300 → +1820 (B Type) °C | |
| Control Type | PID Controller | |
| Communication Module Available | Yes | |
| Display Type | LCD | |
| IP Rating | IP20, IP65 | |
| Series | PX2CV | |
| Additional Functionality | PID Controller | |
| Input Type | Analogue | |
| Mounting Type | Panel Mount | |
| Panel Depth | 105mm | |
| Termination Type | Screw | |
Select all | ||
|---|---|---|
Brand Red Lion | ||
Output Type Analogue | ||
Supply Voltage 21.6 → 250 V dc, 40 → 250 V ac | ||
Size 49.53 x 96.52mm | ||
Number of Inputs 1 | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +50°C | ||
Temperature Range 0 → +1768 (R Type) °C, 0 → +1768 (S Type) °C, 0 → +2315 (C Type) °C, -200 → +400 (T Type) °C, -200 → +750 (E Type) °C, -200 → +760 (J Type) °C, -200 → +1250 (K Type) °C, -200 → +1300 (N Type) °C, +150 → +300 (B Type) °C, +300 → +1820 (B Type) °C | ||
Control Type PID Controller | ||
Communication Module Available Yes | ||
Display Type LCD | ||
IP Rating IP20, IP65 | ||
Series PX2CV | ||
Additional Functionality PID Controller | ||
Input Type Analogue | ||
Mounting Type Panel Mount | ||
Panel Depth 105mm | ||
Termination Type Screw | ||
- COO (Country of Origin):
- US
PID Control With Reduced Overshoot
Universal Input for Process, Temperature, Voltage, Current And Resistance
Programmable Dual Line Display With Units And Bar Graph
Four Programmable Universal Annunciators
Tri-colour Display, With 7 Programmable colour Zones
Field Installable Option Cards for Setpoints, Communication and Retransmitted analogue output
Support for FlexCards, including Second Analog Input, Remote Setpoint, Heater Current Monitor or a 2nd PID Controller
Ramp/Soak Capability, up to 16 profiles with 20 steps each
Up To 16 Alarms With Boolean Logic Functionality
Built-In USB Programming Port Enabling Unit Configuration With Crimson® Programming Software
Sealed Front Bezel
Universal Input for Process, Temperature, Voltage, Current And Resistance
Programmable Dual Line Display With Units And Bar Graph
Four Programmable Universal Annunciators
Tri-colour Display, With 7 Programmable colour Zones
Field Installable Option Cards for Setpoints, Communication and Retransmitted analogue output
Support for FlexCards, including Second Analog Input, Remote Setpoint, Heater Current Monitor or a 2nd PID Controller
Ramp/Soak Capability, up to 16 profiles with 20 steps each
Up To 16 Alarms With Boolean Logic Functionality
Built-In USB Programming Port Enabling Unit Configuration With Crimson® Programming Software
Sealed Front Bezel
