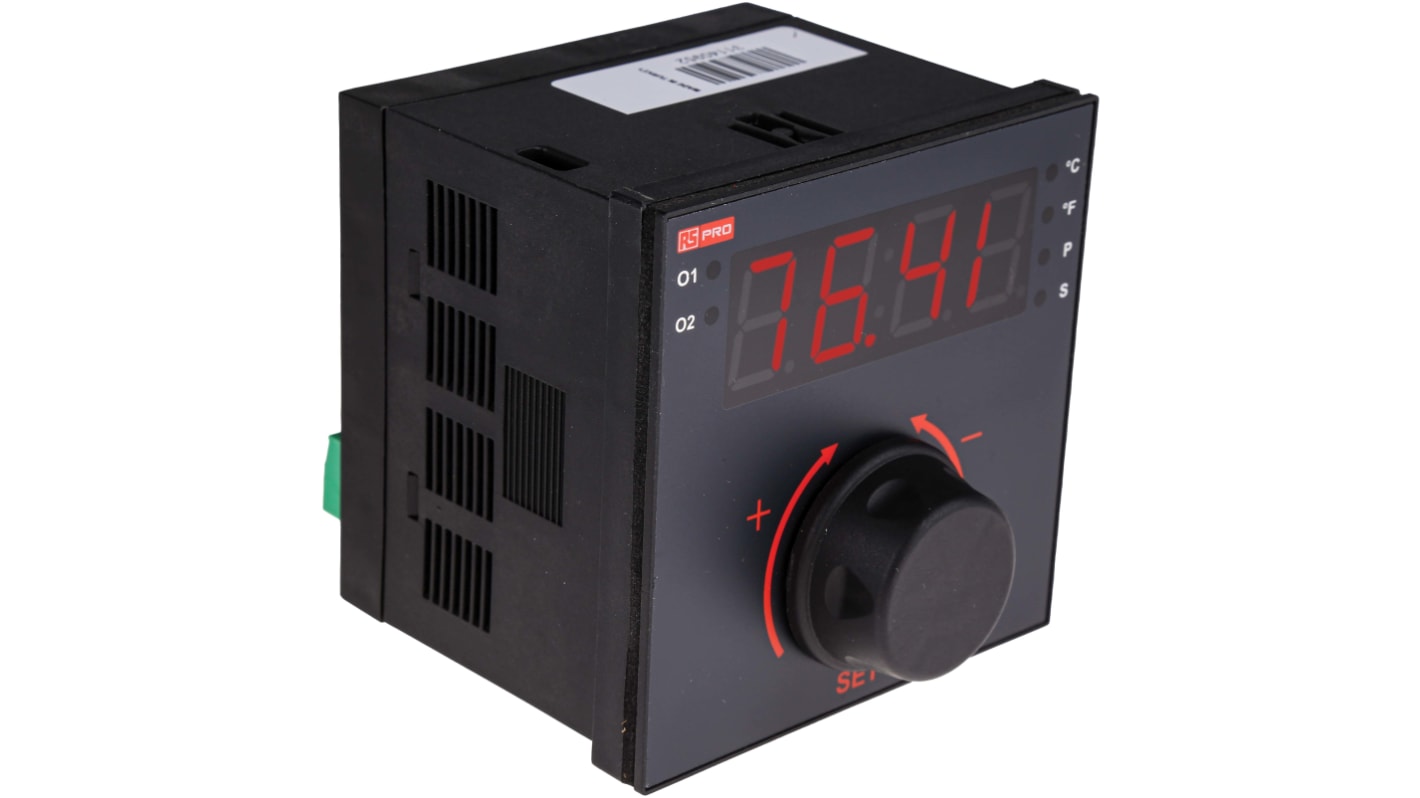

RS PRO PID Temperature Controller, 96 x 96mm 1 Input, 2 Output Relay, SSR, 230 V ac Supply Voltage

View all Temperature Controllers

Subtotal (1 unit)*

£133.32

(exc. VAT)

£159.98

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 5 left, ready to ship
  • Plus 4 left, ready to ship from another location
  • Plus 16 left, shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£133.32

*price indicative

RS Stock No.:
188-5167
Distrelec Article No.:
304-25-419
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Output Type

Relay, SSR

Supply Voltage

230 V ac

Size

96 x 96mm

Number of Inputs

1

Number of Outputs

2

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+50°C

Temperature Range

0 → 50 °C, -200 → +1700 °C

Display Type

11 Digit

IP Rating

IP20, IP65

Input Type

Cu-50, J Type Thermocouple, K Type Thermocouple, L Type Thermocouple, PT100, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple

COO (Country of Origin):
TR

RS PRO PID Temperature Controller, 230 V ac


This PID (proportional integral derivative) temperature controller from RS PRO is a robust device ideal for the control and maintenance of temperature control, with the ability to adjust accordingly depending on the required temperature. This high quality PID controller utilises thermocouple: J, K, R, S, T and L (IEC584.1)(ITS90) sensors and features TC/RTD temperature sensor inputs.

Features and Benefits:


  • 4 digits display

  • Temperature sensor input (TC / RTD)

  • Programmable ON/OFF, P, PI, PD and PID control types

  • Adjustable Process Offset Value

  • Adaptation of PID coefficients to the system by Auto Tune/Self Tune

  • Programmable control and alarm functions for control outputs

  • IP65 protection at front, IP20 at rear

  • Operating Temperature : 0 C to +50 C

Application


PID (proportional integral derivative) temperature controllers are devices used to regulate and control temperature in a range of industrial control applications. They are available in various sizes and can accept a variety of temperature sensors as an input including RTD or thermocouple to compare the actual temperature to the set point temperature.
