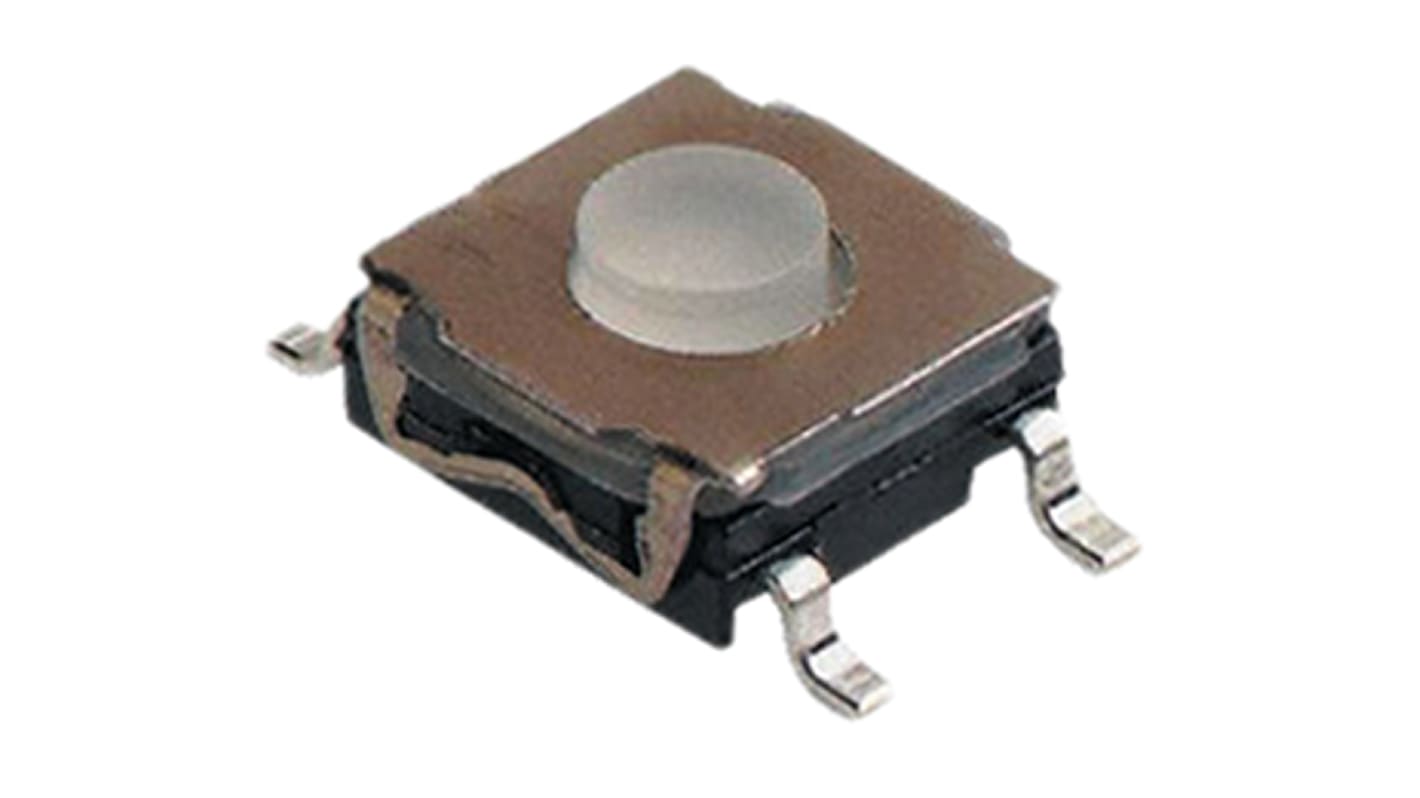

IP67 Button Tactile Switch, SPST 50 mA 3.5mm Surface Mount
- RS Stock No.:
- 899-8582
- Mfr. Part No.:
- KSC222G LFS
- Brand:
- C & K
Available to back order for despatch 01/10/2024
Added
Price 1 Reel of 2000
£407.75
(exc. VAT)
£489.30
(inc. VAT)
| Reel(s) | Per Reel | Per unit* |
| 1 + | £407.75 | £0.204 |
| *price indicative | ||
- RS Stock No.:
- 899-8582
- Mfr. Part No.:
- KSC222G LFS
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
KSC Series Tactile Switches
The KSC Series tactile switches have been designed for surface mount applications with a choice of either J or gull wing terminals. Potential applications include automotive, cellular phones, industrial electronics, network infrastructure, IT and elevators. They are sealed to IP67 and have a single pole, normally open contact with a momentary action.
Life; 1 million cycles
Positive tactile feeling
Available in 1.6N and 3N actuator forces
J bend or Gullwing terminations
IP67
Long life Silver contacts
2 Actuator lengths; 3.5mm & 5.2mm
Momentary action
Positive tactile feeling
Available in 1.6N and 3N actuator forces
J bend or Gullwing terminations
IP67
Long life Silver contacts
2 Actuator lengths; 3.5mm & 5.2mm
Momentary action
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
| Actuator Length | 3.5mm |
| Actuator Type | Button |
| Length | 6.2mm |
| Width | 6.2mm |
| Dimensions | 6.2 x 6.2 x 3.5mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Height | 3.5mm |
| Voltage Rating | 32V dc |
| Operating Force | 200 g |
| Mechanical Life | 1000000Operations |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
