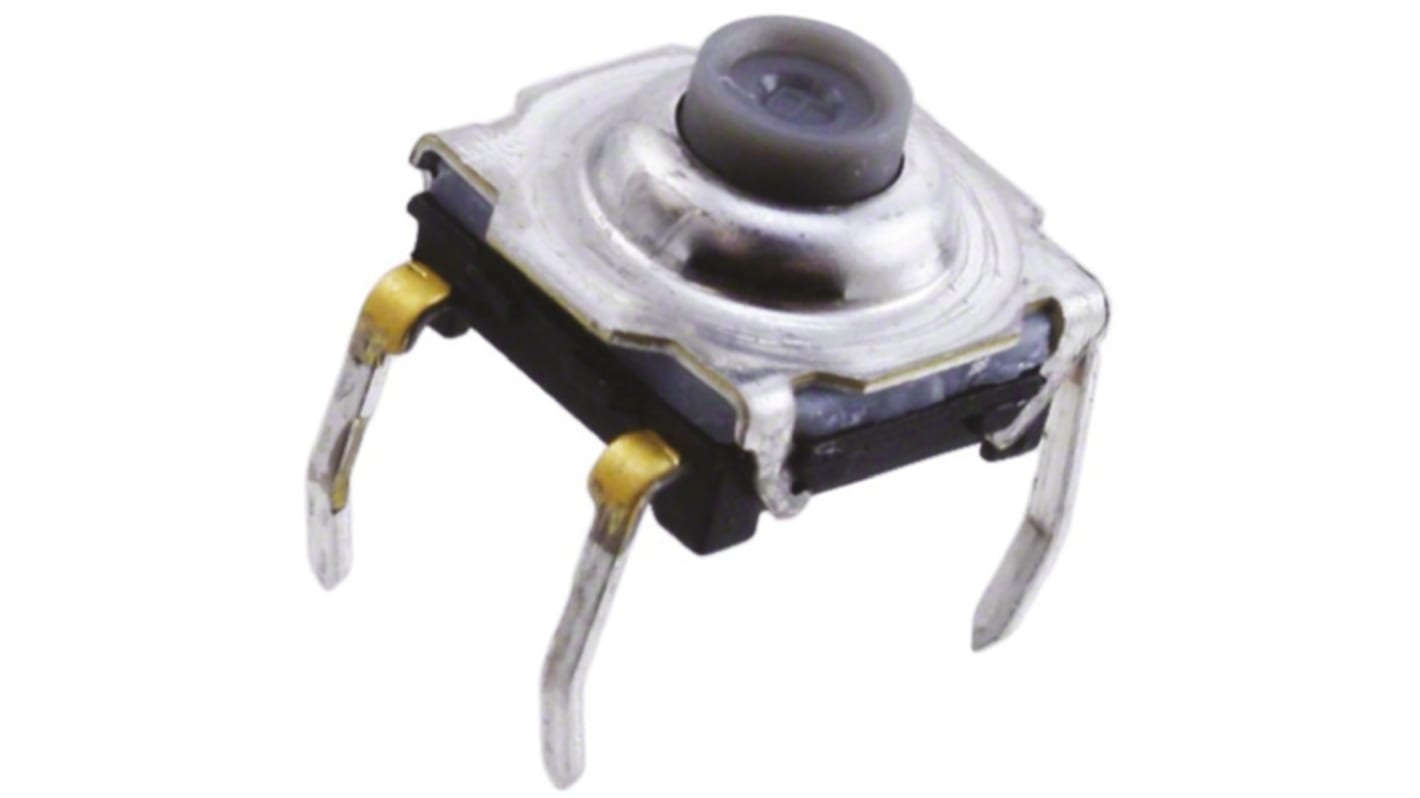

C & K IP60 Side, Top Tactile Switch, SPST 10 mA @ 32 V dc
- RS Stock No.:
- 793-1620P
- Mfr. Part No.:
- KSA0M431LFT
- Brand:
- C & K
Bulk discount available
Subtotal 25 units (supplied in a bag)*
£19.50
(exc. VAT)
£23.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 75 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 49 | £0.78 |
| 50 - 99 | £0.75 |
| 100 - 499 | £0.69 |
| 500 + | £0.59 |
*price indicative
- RS Stock No.:
- 793-1620P
- Mfr. Part No.:
- KSA0M431LFT
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Terminal Type | PC Terminal | |
| Actuator Type | Side, Top | |
| Contact Current Rating | 10 mA @ 32 V dc | |
| IP Rating | IP60 | |
| Operating Force | 3.75 N | |
| Minimum Operating Temperature | -40°C | |
| Mechanical Life | 100000Cycles | |
| Operating Temperature Range | -40 → +125°C | |
| Contact Material | Gold Plated | |
| Maximum Operating Temperature | +125°C | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type PC Terminal | ||
Actuator Type Side, Top | ||
Contact Current Rating 10 mA @ 32 V dc | ||
IP Rating IP60 | ||
Operating Force 3.75 N | ||
Minimum Operating Temperature -40°C | ||
Mechanical Life 100000Cycles | ||
Operating Temperature Range -40 → +125°C | ||
Contact Material Gold Plated | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- FR
Tactile Switches
All switches have a contact configuration of SPST N/O
Designed for manual insertion
The ball actuated type can be used in applications where the actuation force is out of line with the vertical. A tolerance of up to ±30° can be accommodated
Insulation resistance: >100GΩ at 100Vdc
Sealed against soldering flux
Average travel 0.3mm
The ball actuated type can be used in applications where the actuation force is out of line with the vertical. A tolerance of up to ±30° can be accommodated
Insulation resistance: >100GΩ at 100Vdc
Sealed against soldering flux
Average travel 0.3mm
Note
Tactile
