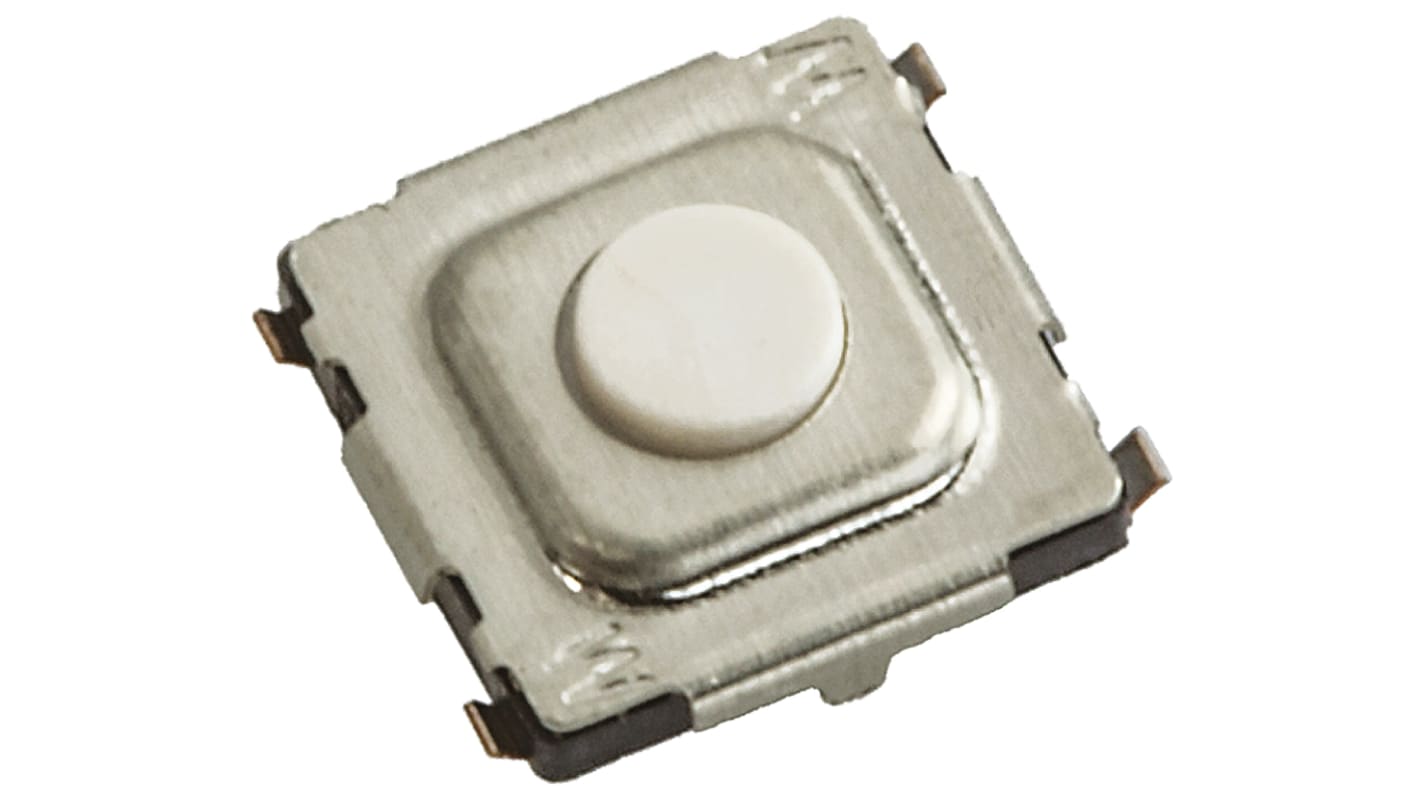

Wurth Elektronik White Tactile Switch, SPST 20 mA 0.3mm Surface Mount
- RS Stock No.:
- 785-6364
- Mfr. Part No.:
- 431153015826
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£0.43
(exc. VAT)
£0.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 109 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £0.43 |
*price indicative
- RS Stock No.:
- 785-6364
- Mfr. Part No.:
- 431153015826
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Length | 0.3mm | |
| Actuator Colour | White | |
| Actuator Type | Tactile | |
| Length | 5mm | |
| Width | 5mm | |
| Dimensions | 5 x 5 x 1.5mm | |
| Illuminated | No | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 20 mA | |
| Operating Force | 2.55 N | |
| Voltage Rating | 15V dc | |
| Height | 1.5mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Mechanical Life | 200000Cycles | |
| Contact Material | Stainless Steel | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Length 0.3mm | ||
Actuator Colour White | ||
Actuator Type Tactile | ||
Length 5mm | ||
Width 5mm | ||
Dimensions 5 x 5 x 1.5mm | ||
Illuminated No | ||
Mounting Type Surface Mount | ||
Contact Current Rating 20 mA | ||
Operating Force 2.55 N | ||
Voltage Rating 15V dc | ||
Height 1.5mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Mechanical Life 200000Cycles | ||
Contact Material Stainless Steel | ||
- COO (Country of Origin):
- CN
Tactile Switch WS-TSS
Copper alloy cover
Stainless Steel contacts with silver cladding
Reflow process as per JEDEC J-020D-STD
Operating temperature range -40°C to +85°C
Stainless Steel contacts with silver cladding
Reflow process as per JEDEC J-020D-STD
Operating temperature range -40°C to +85°C
Tactile
