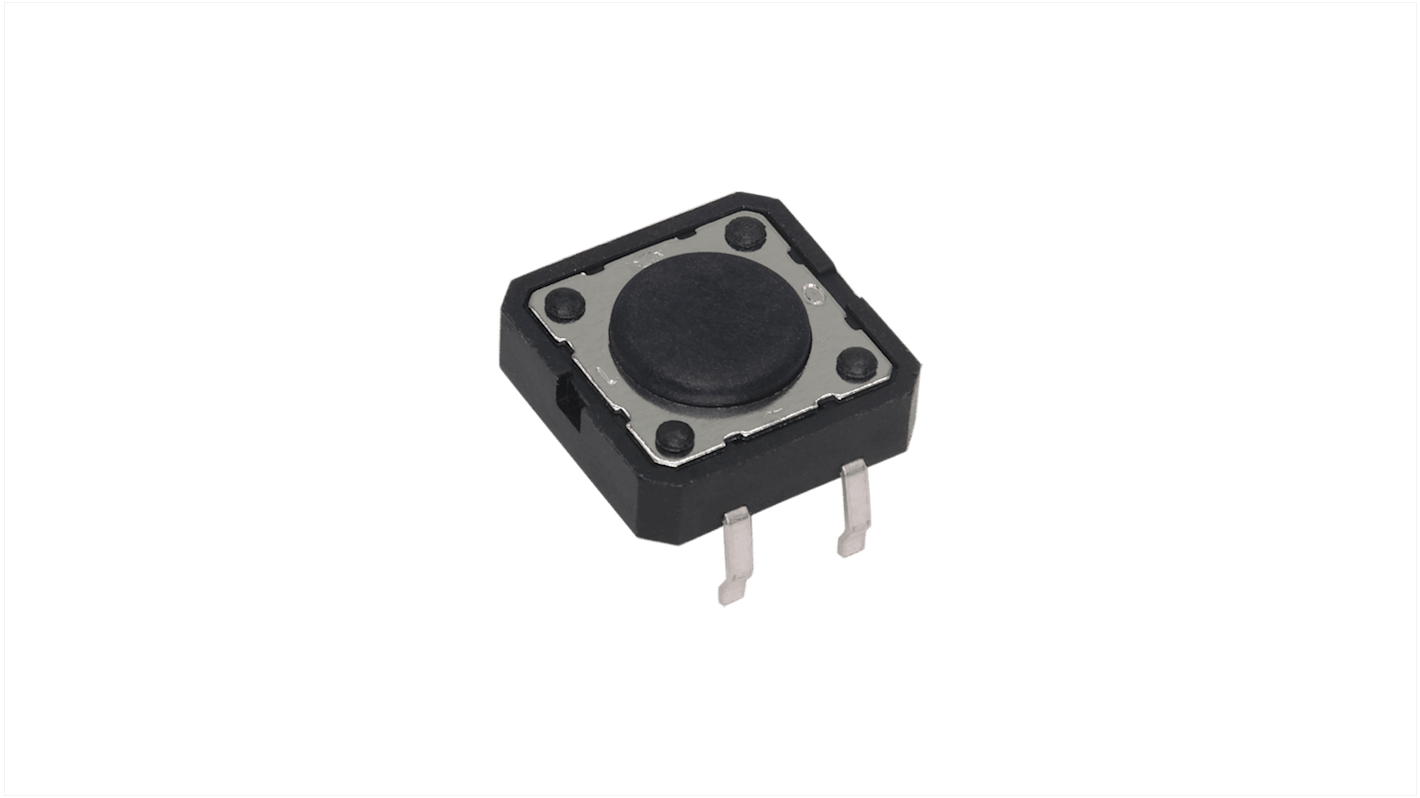

Black Button Tactile Switch, SPST 0.6 VA Surface Mount
- RS Stock No.:
- 248-5418
- Mfr. Part No.:
- PTS125SM73SMTR21M LFS
- Brand:
- C & K
Available to back order for despatch 02/07/2024
Added
Price Each (On a Reel of 900)
£0.24
(exc. VAT)
£0.29
(inc. VAT)
| Units | Per unit | Per Reel* |
| 900 - 900 | £0.24 | £216.00 |
| 1800 - 2700 | £0.227 | £204.30 |
| 3600 + | £0.215 | £193.50 |
| *price indicative | ||
- RS Stock No.:
- 248-5418
- Mfr. Part No.:
- PTS125SM73SMTR21M LFS
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The C&K’s PTS125 series 12mm tactile switches are most often seen used in industrial, consumer products, instrumentation and computing equipment. This switch is straight, top actuated, and required actuating force is 180 gms. This switch has pegs and a 7.3 mm square snap fit actuator. Also, it has 1 million working (life) cycles. It has bounce time of less than 5 ms, and operating temperature of -40˚C to 85˚C.
Maximum voltage is 12 Vdc and maximum current is 50 mA
Dielectric strength of 250 Vac (1 mn)
Contact resistance of less than 100 mΩ and insulation resistance of more than 100 MΩ
Dielectric strength of 250 Vac (1 mn)
Contact resistance of less than 100 mΩ and insulation resistance of more than 100 MΩ
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Through Hole |
| Switch Operation | SPST-NO |
| Actuator Colour | Black |
| Actuator Type | Button |
| Mounting Type | Surface Mount |
| Contact Current Rating | 0.6 VA |
