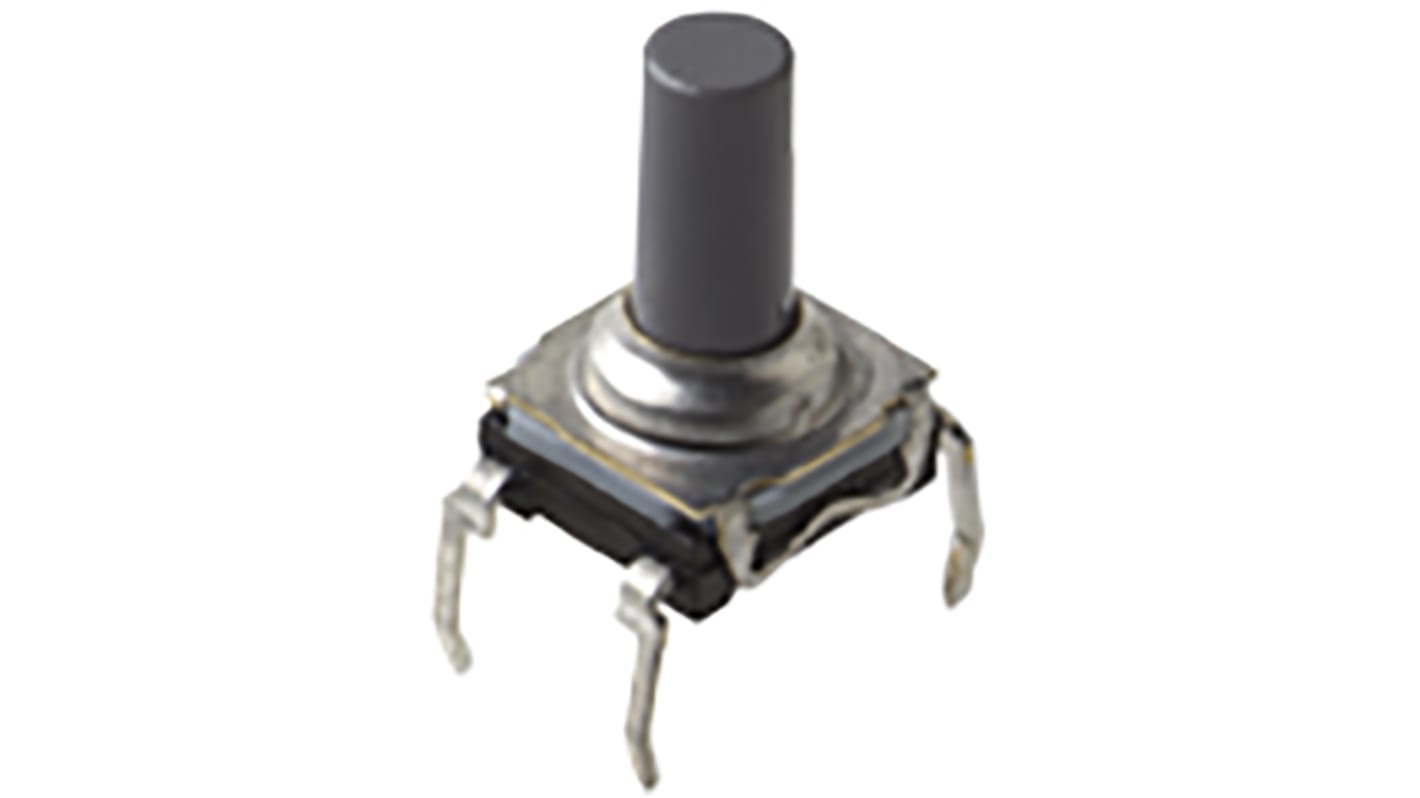

C & K IP60 Side Tactile Switch, SPST 50 mA 11.1mm Through Hole
- RS Stock No.:
- 176-9512
- Mfr. Part No.:
- KSL0V211 LFTR
- Brand:
- C & K
Discontinued
- RS Stock No.:
- 176-9512
- Mfr. Part No.:
- KSL0V211 LFTR
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Terminal Type | PC Pin | |
| Switch Operation | Momentary | |
| Actuator Length | 11.1mm | |
| Actuator Type | Side | |
| Length | 7.4mm | |
| Width | 7.3mm | |
| Dimensions | 7.4 x 7.3mm | |
| Illuminated | No | |
| Mounting Type | Through Hole | |
| Contact Current Rating | 50 mA | |
| IP Rating | IP60 | |
| Voltage Rating | 32V dc | |
| Operating Force | 1.3 N | |
| Contact Material | Silver | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type PC Pin | ||
Switch Operation Momentary | ||
Actuator Length 11.1mm | ||
Actuator Type Side | ||
Length 7.4mm | ||
Width 7.3mm | ||
Dimensions 7.4 x 7.3mm | ||
Illuminated No | ||
Mounting Type Through Hole | ||
Contact Current Rating 50 mA | ||
IP Rating IP60 | ||
Voltage Rating 32V dc | ||
Operating Force 1.3 N | ||
Contact Material Silver | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- FR
Featuring a top or side actuated design, the KSL series sealed tact switch from C&K comes equipped with cambered terminals to ensure self-retention – and can be used for automation or manual insertion. The switches’ durability makes them ideal for telecommunication networks and automation and industrial applications that need to withstand harsh environments.
Designed for automatic or manual insertion
Cambered terminals to ensure self retention
Top or side actuated
Large choice of caps
Typical Applications
Automotive
Industrial
Telecommunication networks
Cambered terminals to ensure self retention
Top or side actuated
Large choice of caps
Typical Applications
Automotive
Industrial
Telecommunication networks
