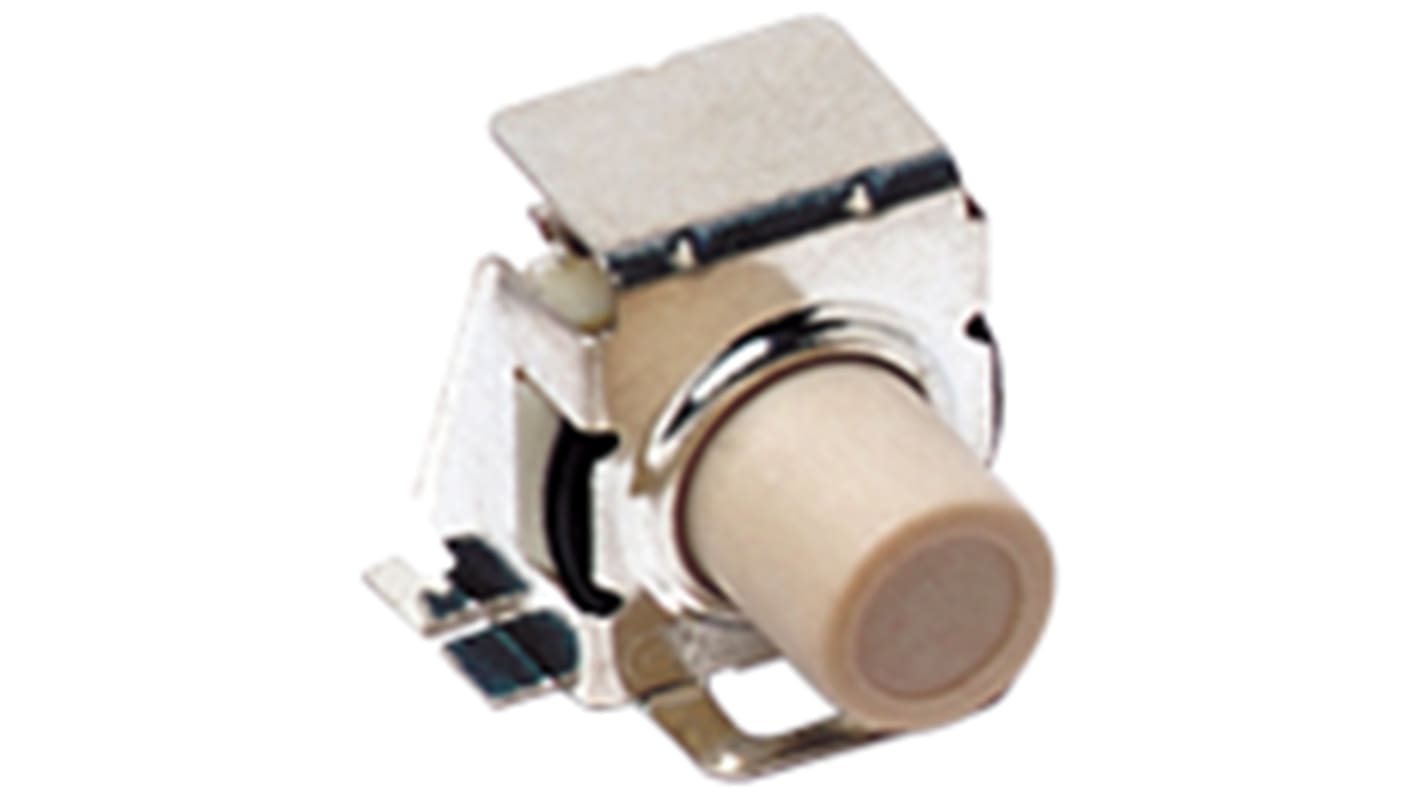

IP57 Side Tactile Switch, SPST 100 mA @ 4 V dc 1.12mm Surface Mount
- RS Stock No.:
- 176-9472
- Mfr. Part No.:
- KT11P3SA2M34 LFS
- Brand:
- C & K
Available to back order for despatch 22/07/2024
Added
Price Each (On a Reel of 600)
£0.955
(exc. VAT)
£1.146
(inc. VAT)
| Units | Per unit | Per Reel* |
| 600 + | £0.955 | £573.00 |
| *price indicative | ||
- RS Stock No.:
- 176-9472
- Mfr. Part No.:
- KT11P3SA2M34 LFS
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
C&K’s KT series full SMT top and side actuated sealed tact switch has a high shear force with an extended bracket that gives it a long operating life. This feature, along with the KT’s G or J terminations, makes it ideal for computer, instrumentation and power supply applications.
Full SMT side-actuated tact switch
SMT top-actuated tact switch with G or J terminations
High shear force with extended bracket
Easy to pick & place with top plate tab
Rubber or hard plastic actuator
Press fit or snap fit caps
Typical Applications
Telecommunications
Computer products
Instrumentation
Power supply
SMT top-actuated tact switch with G or J terminations
High shear force with extended bracket
Easy to pick & place with top plate tab
Rubber or hard plastic actuator
Press fit or snap fit caps
Typical Applications
Telecommunications
Computer products
Instrumentation
Power supply
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | SMT |
| Switch Operation | Momentary |
| Actuator Length | 1.12mm |
| Actuator Type | Side |
| Length | 7.11mm |
| Width | 6.29mm |
| Dimensions | 7.11 x 6.29mm |
| Illuminated | No |
| Mounting Type | Surface Mount |
| Contact Current Rating | 100 mA @ 4 V dc |
| IP Rating | IP57 |
| Operating Force | 3 N |
| Voltage Rating | 32V ac/dc |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +90°C |
| Contact Material | Silver |
