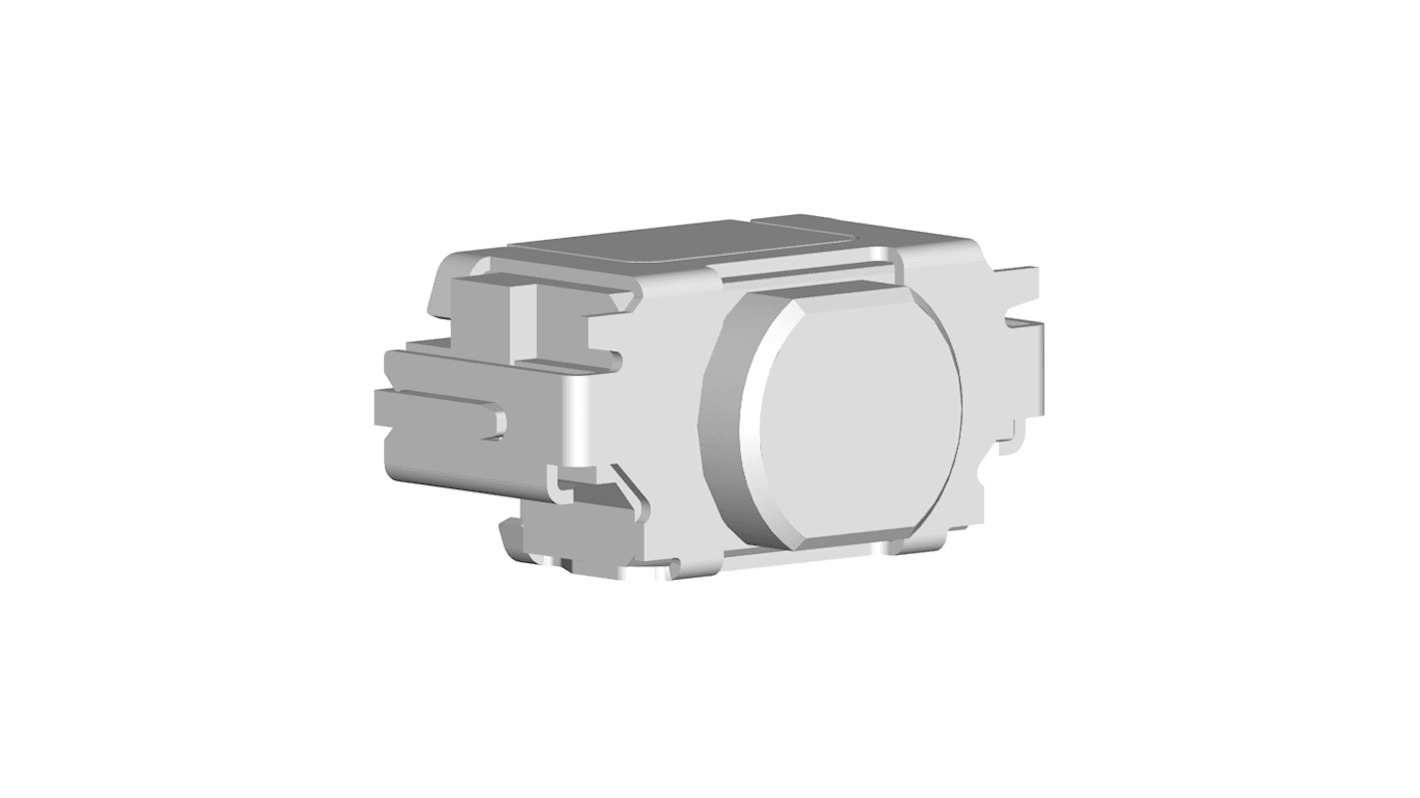

KNITTER-SWITCH Brown Push Button Tactile Switch 50 mA 3mm Surface Mount
- RS Stock No.:
- 164-9485
- Mfr. Part No.:
- TSS 3222 NP-RA
- Brand:
- KNITTER-SWITCH
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 164-9485
- Mfr. Part No.:
- TSS 3222 NP-RA
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Terminal Type | Solder Tab | |
| Switch Operation | Momentary | |
| Actuator Length | 3mm | |
| Actuator Colour | Brown | |
| Actuator Type | Push Button | |
| Length | 6mm | |
| Width | 3.5mm | |
| Dimensions | 6 x 3.5mm | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 50 mA | |
| Operating Force | 160 N | |
| Voltage Rating | 12V dc | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +90°C | |
| Maximum Operating Temperature | +90°C | |
| Contact Material | Silver Plated Stainless Steel | |
Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Terminal Type Solder Tab | ||
Switch Operation Momentary | ||
Actuator Length 3mm | ||
Actuator Colour Brown | ||
Actuator Type Push Button | ||
Length 6mm | ||
Width 3.5mm | ||
Dimensions 6 x 3.5mm | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA | ||
Operating Force 160 N | ||
Voltage Rating 12V dc | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +90°C | ||
Maximum Operating Temperature +90°C | ||
Contact Material Silver Plated Stainless Steel | ||
- COO (Country of Origin):
- CN
Brown Push Button Tactile Switch
The KNITTER-SWITCH is an ON/OFF push button tactile switch. The tactile switch has silver plated stainless steel contact. The mounting type is surface mount.
Features and Benefits
• Switching operation is latching
• Terminal type is solder tab
• Contact current rating is 50mA
• Voltage rating is 12VDC
• Operating force is 160N
• Dielectric strength is 100V
• Packing on tape, 3000 pieces/reel
• Mechanical life 1000000 operations
• Service temperature ranges between -40°C and 90°C
• Terminal type is solder tab
• Contact current rating is 50mA
• Voltage rating is 12VDC
• Operating force is 160N
• Dielectric strength is 100V
• Packing on tape, 3000 pieces/reel
• Mechanical life 1000000 operations
• Service temperature ranges between -40°C and 90°C
Applications
• Calculators
• Kitchen appliances
• Magnetic locks
• Mechanical devices
• Electronic devices
• Kitchen appliances
• Magnetic locks
• Mechanical devices
• Electronic devices
