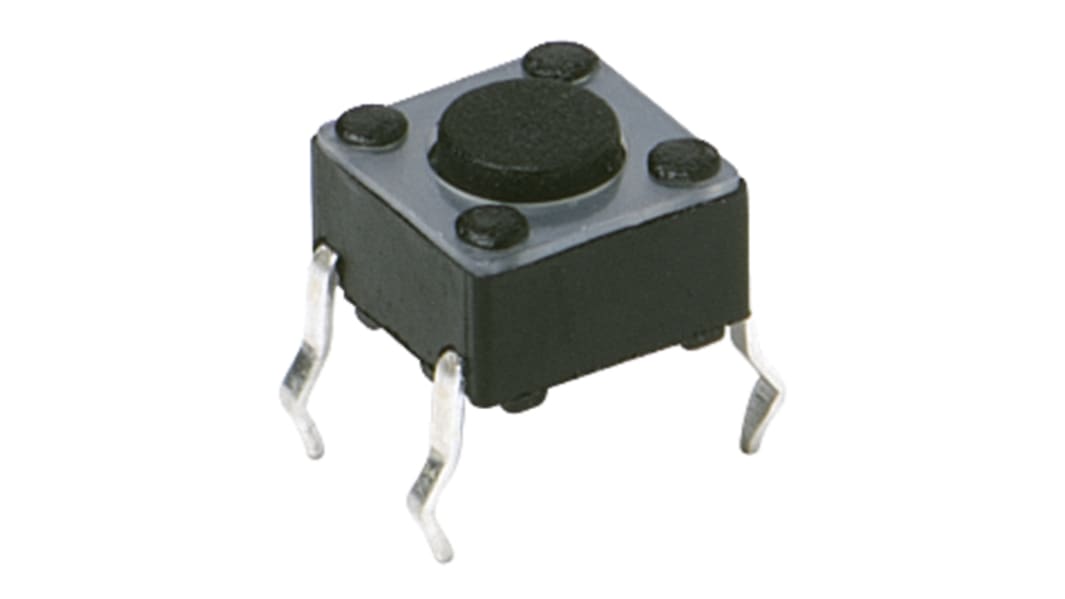

C & K IP40 Black Button Tactile Switch, SPST 50 mA 3.5 (Dia.)mm Through Hole
- RS Stock No.:
- 135-9521
- Mfr. Part No.:
- PTS645SL502 LFS
- Brand:
- C & K
Bulk discount available
Subtotal (1 pack of 20 units)*
£4.44
(exc. VAT)
£5.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,280 unit(s) shipping from 22 October 2025
- Plus 480 unit(s) shipping from 22 October 2025
- Plus 5,160 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
20 - 80 | £0.222 | £4.44 |
100 - 180 | £0.212 | £4.24 |
200 - 480 | £0.20 | £4.00 |
500 + | £0.189 | £3.78 |
*price indicative
- RS Stock No.:
- 135-9521
- Mfr. Part No.:
- PTS645SL502 LFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | C & K | |
Contact Configuration | SPST | |
Terminal Type | PC Pin | |
Switch Operation | Momentary | |
Actuator Length | 3.5 (Dia.)mm | |
Actuator Colour | Black | |
Actuator Type | Button | |
Length | 6mm | |
Width | 6mm | |
Dimensions | 6 x 6mm | |
Mounting Type | Through Hole | |
Contact Current Rating | 50 mA | |
IP Rating | IP40 | |
Operating Force | 1.3 N | |
Voltage Rating | 12V dc | |
Operating Temperature Range | -20 → +60°C | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -20°C | |
Contact Material | Silver Plated | |
Select all | ||
---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type PC Pin | ||
Switch Operation Momentary | ||
Actuator Length 3.5 (Dia.)mm | ||
Actuator Colour Black | ||
Actuator Type Button | ||
Length 6mm | ||
Width 6mm | ||
Dimensions 6 x 6mm | ||
Mounting Type Through Hole | ||
Contact Current Rating 50 mA | ||
IP Rating IP40 | ||
Operating Force 1.3 N | ||
Voltage Rating 12V dc | ||
Operating Temperature Range -20 → +60°C | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Contact Material Silver Plated | ||
- COO (Country of Origin):
- CN
C&K PTS645 Series Tactile Switches
From C & K Switches, a range of straight and vertical termination SMT and THT tactile switches. The PTS645 series of switches are available with standard top actuation and various actuator lengths making them ideal for applications where space is limited. Colour coded for easy identification of actuation force. The IP40 switches in the PTS645 family have a momentary function with SPST-NO contact arrangement.
Features and Benefits
• IP40
• 6 x 6 mm footprint
• Various actuator lengths
• Colour coded actuators for force identification
• Straight or vertical termination pins
• 6 x 6 mm footprint
• Various actuator lengths
• Colour coded actuators for force identification
• Straight or vertical termination pins
Applications
• Industrial
• Consumer products
• Instrumentation
• Computers
• Consumer products
• Instrumentation
• Computers
