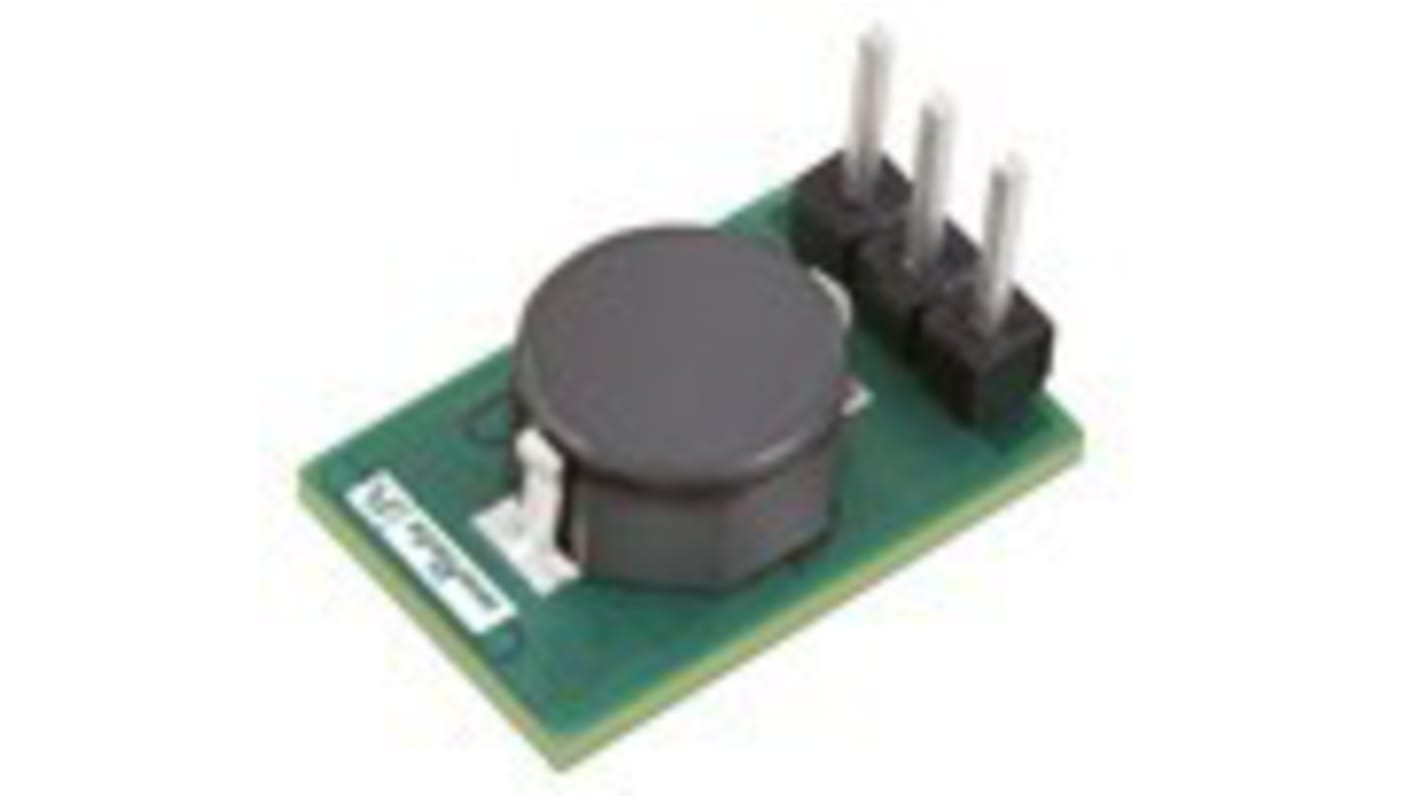

Murata Power Solutions Non-Isolated DC-DC Converter, Through Hole, 12V dc Output Voltage, 12V dc Input Voltage, 1A
- RS Stock No.:
- 173-6958P
- Mfr. Part No.:
- OKI-78SR-12/1.0-W36H-C
- Brand:
- Murata Power Solutions
Discontinued
- RS Stock No.:
- 173-6958P
- Mfr. Part No.:
- OKI-78SR-12/1.0-W36H-C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 12V dc | |
| Output Current | 1A | |
| Input Voltage | 12V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | TO-220 | |
| Power Rating | 12W | |
| Efficiency | 95.3% | |
| Ripple And Noise | 75mV Pk-Pk | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
| Series | OKI-78SR | |
| Line Regulation | ±0.25% | |
| Depth | 16.5mm | |
| Allowed Circuit Configurations | Parallel | |
| Length | 10.4mm | |
| Protection Features | Short Circuit Protection | |
| Switching Frequency Range | 500kHz | |
| Width | 8.6mm | |
| Weight | 2g | |
| Maximum Input Current | 530mA | |
| Power Signal Conversion Type | DC-DC | |
| MTBF | 78700000h | |
| Rated Output Power | 12W | |
| Load Regulation | ±0.25% | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 12V dc | ||
Output Current 1A | ||
Input Voltage 12V dc | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package TO-220 | ||
Power Rating 12W | ||
Efficiency 95.3% | ||
Ripple And Noise 75mV Pk-Pk | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Series OKI-78SR | ||
Line Regulation ±0.25% | ||
Depth 16.5mm | ||
Allowed Circuit Configurations Parallel | ||
Length 10.4mm | ||
Protection Features Short Circuit Protection | ||
Switching Frequency Range 500kHz | ||
Width 8.6mm | ||
Weight 2g | ||
Maximum Input Current 530mA | ||
Power Signal Conversion Type DC-DC | ||
MTBF 78700000h | ||
Rated Output Power 12W | ||
Load Regulation ±0.25% | ||
- COO (Country of Origin):
- CN
Murata Power Solutions Non-Isolated DC-DC Converter
The Murata Power Solutions non-isolated DC-DC converter is parallel configuration through hole mount type converter. it is fabricated on a 10.4mm x 16.5mm single output converter. It required output voltage is 12VDC and 1.0A is maximum output current. Based on fixed frequency the high efficiency means very low heat and low electrical noise requiring no external component. The fixed single output converters provide both tight regulation and high efficiency directly at power usage site and are direct plug-in instead of linear regulators hence no extra outside component is required
Features and Benefits
• High efficiency with no external components
• No heat sink direct replacement for 3-terminal
• Outstanding thermal derating performance
• Short circuit protection
• Horizontal mount and small footprint
• No heat sink direct replacement for 3-terminal
• Outstanding thermal derating performance
• Short circuit protection
• Horizontal mount and small footprint
Applications
• Control boxes
• Control boxes
• ITE commercials
• ITE commercials
• Control boxes
• ITE commercials
• ITE commercials
Certifications
• UL certified
