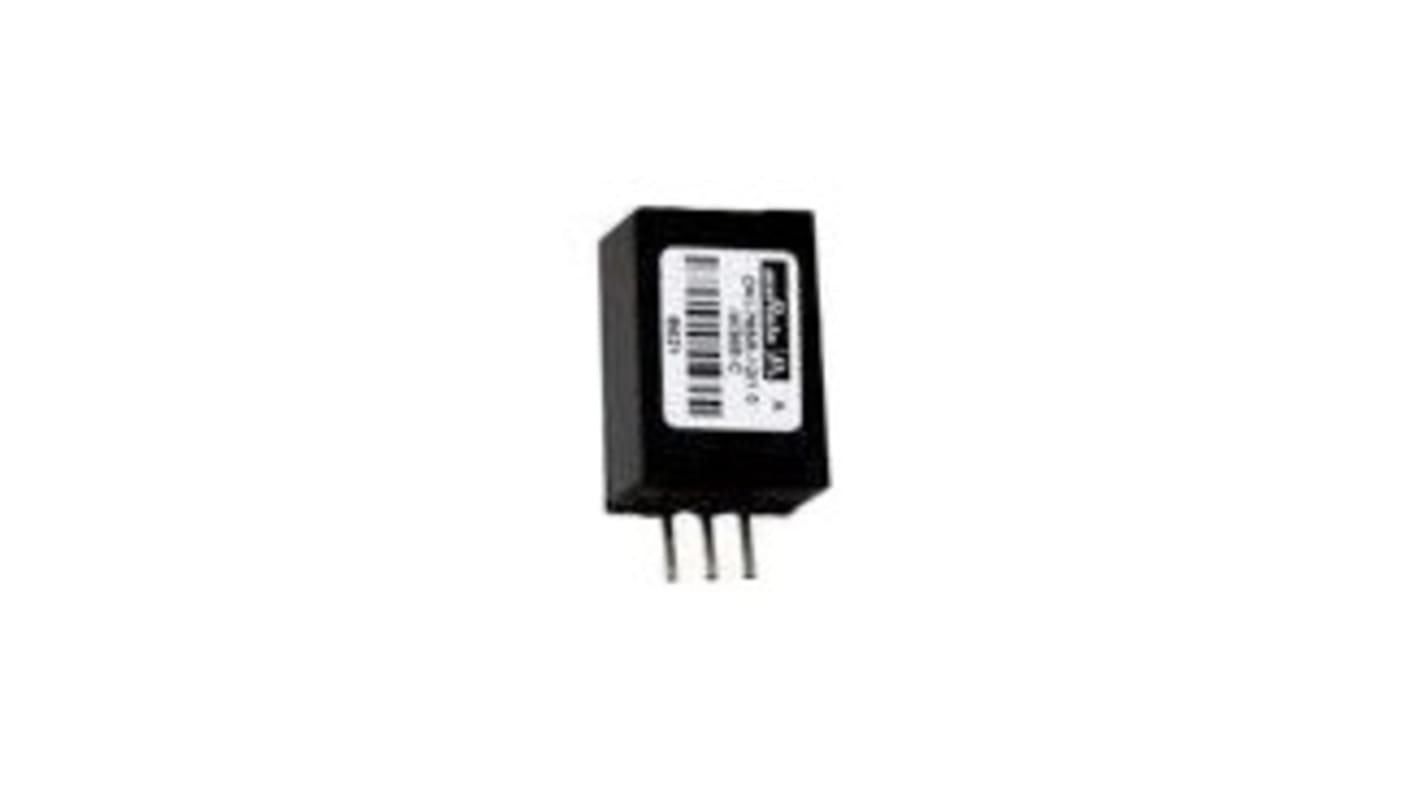

Murata Power Solutions Non-Isolated DC-DC Converter, Through Hole, 12V dc Output Voltage, 24V dc Input Voltage, 1A
- RS Stock No.:
- 173-6921
- Mfr. Part No.:
- OKI-78SR-12/1.0-W36E-C
- Brand:
- Murata Power Solutions
Discontinued
- RS Stock No.:
- 173-6921
- Mfr. Part No.:
- OKI-78SR-12/1.0-W36E-C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 12V dc | |
| Output Current | 1A | |
| Input Voltage | 24V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | TO-220 | |
| Power Rating | 12W | |
| Efficiency | 95.3% | |
| Ripple And Noise | 75mV Pk-Pk | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
| Series | OKI-78SR | |
| Line Regulation | ±0.25% | |
| Width | 10mm | |
| Rated Output Power | 12W | |
| MTBF | 78700000h | |
| Switching Frequency Range | 500kHz | |
| Allowed Circuit Configurations | Parallel | |
| Protection Features | Short Circuit Protection | |
| Length | 11.9mm | |
| Weight | 4.5g | |
| Depth | 17.6mm | |
| Load Regulation | ±0.25% | |
| Power Signal Conversion Type | DC-DC | |
| Maximum Input Current | 530mA | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 12V dc | ||
Output Current 1A | ||
Input Voltage 24V dc | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package TO-220 | ||
Power Rating 12W | ||
Efficiency 95.3% | ||
Ripple And Noise 75mV Pk-Pk | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Series OKI-78SR | ||
Line Regulation ±0.25% | ||
Width 10mm | ||
Rated Output Power 12W | ||
MTBF 78700000h | ||
Switching Frequency Range 500kHz | ||
Allowed Circuit Configurations Parallel | ||
Protection Features Short Circuit Protection | ||
Length 11.9mm | ||
Weight 4.5g | ||
Depth 17.6mm | ||
Load Regulation ±0.25% | ||
Power Signal Conversion Type DC-DC | ||
Maximum Input Current 530mA | ||
- COO (Country of Origin):
- CN
Murata Power Solutions Non-Isolated DC-DC Converter
The Murata power solutions non-isolated DC-DC converter is a switching regulator used for the embedded application. It has three nominal output voltage terminals, 12VDC and up to 1.5A as the maximum output. Based on fixed frequency, the high efficiency stands for very low heat and low electrical noise, requiring no external component. The fixed single output converters provide both tight regulation and high efficiency directly at power usage site and are direct plug-in instead of linear regulators, eliminating the need for an extra outside component.
Features and Benefits
• High efficiency with no external components
• Outstanding thermal derating performance
• Short circuit protection
• Vertical SIP or horizontal mount, small footprint, in an encapsulated package
• Outstanding thermal derating performance
• Short circuit protection
• Vertical SIP or horizontal mount, small footprint, in an encapsulated package
Applications
• Control boxes
• ITE commercials
• ITE commercials
Certifications
• UL approved
