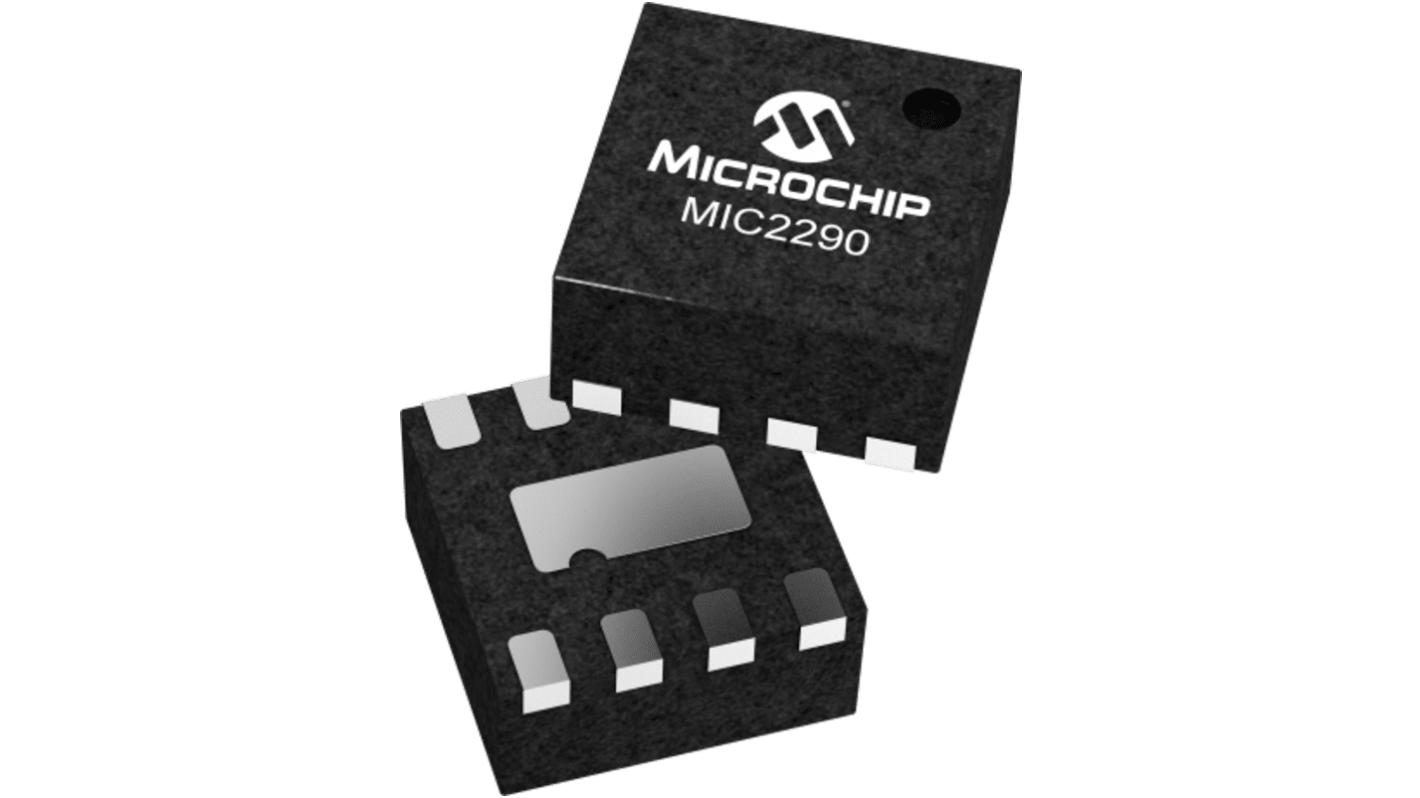

Microchip MIC2290YML-TR, 1-Channel Boost, Switching, Voltage Regulator, 500 mA, 34 V dc 1.35 MHz, 8-Lead DFN (2 x 2 mm)
- RS Stock No.:
- 649-496
- Mfr. Part No.:
- MIC2290YML-TR
- Brand:
- Microchip
Bulk discount available
Subtotal (1 tape of 5 units)*
£4.26
(exc. VAT)
£5.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.852 | £4.26 |
| 50 - 120 | £0.832 | £4.16 |
| 125 - 495 | £0.81 | £4.05 |
| 500 + | £0.758 | £3.79 |
*price indicative
- RS Stock No.:
- 649-496
- Mfr. Part No.:
- MIC2290YML-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Regulator Type | Boost, Switching | |
| Product Type | Voltage Regulator | |
| Number of Outputs | 1 | |
| Output Voltage | 34 V dc | |
| Switching Frequency | 1.35MHz | |
| Load Regulation | 0.2 % (Typical), 1 % | |
| Mount Type | Surface | |
| Package Type | 8-Lead DFN (2 x 2 mm) | |
| Quiescent Current | 5mA | |
| Output Current | 500mA | |
| Pin Count | 8 | |
| Switching Regulator | Yes | |
| Width | 2 mm | |
| Standards/Approvals | RoHS-compliant | |
| Series | MIC2290 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Input Voltage | 10V | |
| Minimum Input Voltage | 2.5V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Regulator Type Boost, Switching | ||
Product Type Voltage Regulator | ||
Number of Outputs 1 | ||
Output Voltage 34 V dc | ||
Switching Frequency 1.35MHz | ||
Load Regulation 0.2 % (Typical), 1 % | ||
Mount Type Surface | ||
Package Type 8-Lead DFN (2 x 2 mm) | ||
Quiescent Current 5mA | ||
Output Current 500mA | ||
Pin Count 8 | ||
Switching Regulator Yes | ||
Width 2 mm | ||
Standards/Approvals RoHS-compliant | ||
Series MIC2290 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Input Voltage 10V | ||
Minimum Input Voltage 2.5V | ||
Automotive Standard No | ||
The Microchip 1.2MHz , PWM, boost-switching regulator. Its features an internal Schottky diode that reduces circuit board area and total solution cost. High power density is achieved with the MIC2290's internal 34V/0.5A switch, allowing it to power large loads in a tiny footprint. It implements a constant frequency 1.2MHz PWM control scheme. The high frequency operation saves board space by reducing external component sizes.
Internal Schottky diode
2.5V to 10V input voltage
Output voltage adjustable to 34V
Over 500mA switch current
