    Recom Encapsulated, Switching Power Supply, 5V dc, 600mA, 3W

    RS Stock No.:
    901-1478P
    Mfr. Part No.:
    RAC03-05SER/277
    Brand:
    Recom
    Recom
    View all Switching Power Supplies
    60 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each (Supplied in a Tube)

    £20.32

    (exc. VAT)

    £24.38

    (inc. VAT)

    UnitsPer unit
    5 - 9£20.32
    10 - 24£19.87
    25 - 49£19.47
    50 +£19.05
    Packaging Options:
    RS Stock No.:
    901-1478P
    Mfr. Part No.:
    RAC03-05SER/277
    Brand:
    Recom
    COO (Country of Origin):
    TW

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    TW

    Product Details

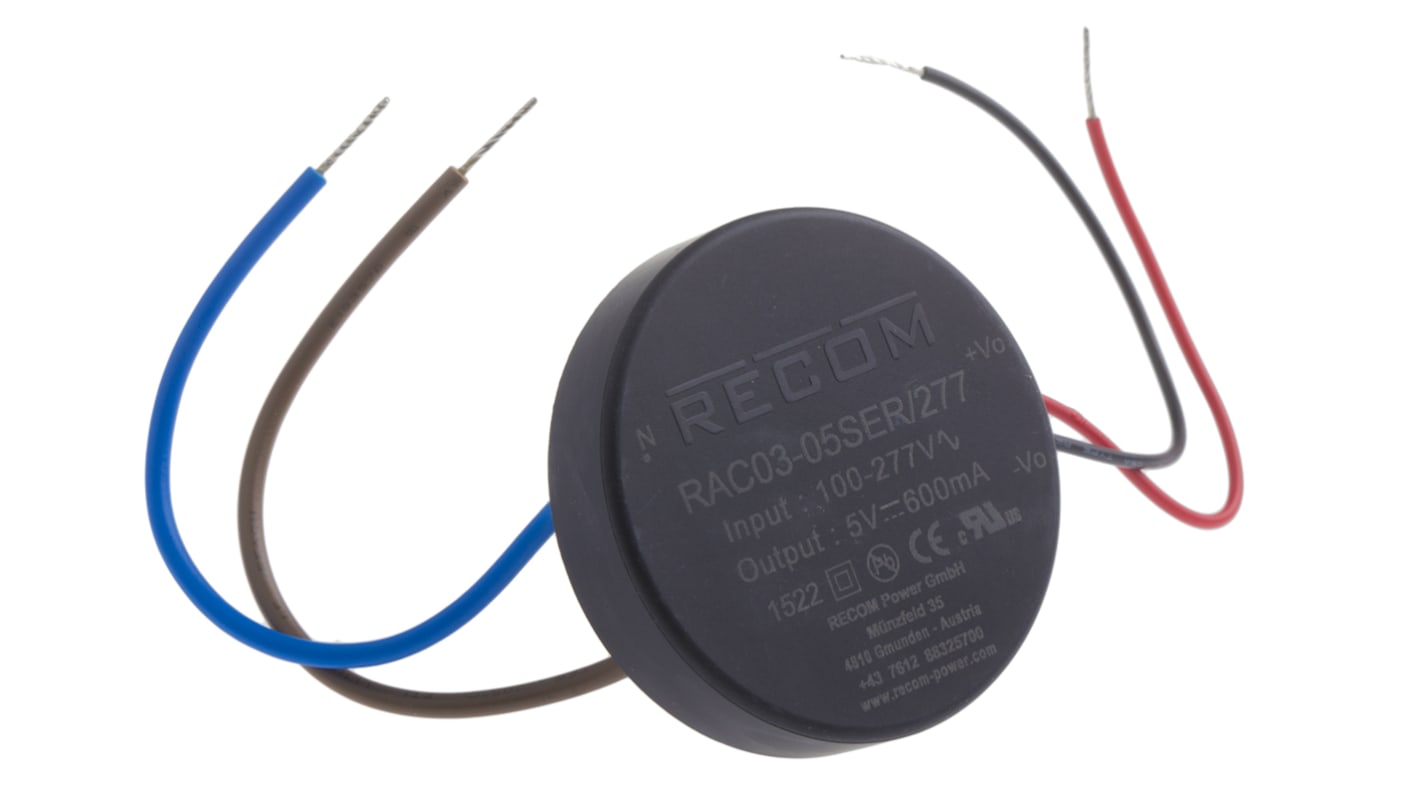

    Recom 3W Single Output, Wired, Encapsulated Regulated AC-DC Converters - RAC03-SER/277 Series


    The Recom wired 3W RAC03-SER/277 series power modules are regulated AC/DC converters with 3kVAC isolation and a round, flat shape. This series has been designed to offer low stand-by consumption and an ultra-wide input voltage range. Uses include a variety of applications in building automation, security and communication systems.

    One of the most important features is the extended operating temperature range, as a consequence this series of power modules can now be used in areas where temperatures drop as low as -40°C.


    40mW max. No Load Power Consumption
    High Efficiency up to 76%
    Isolated Output 3kVAC / 1 min
    SCP, OVP Protection
    Wide Operating Temperature Range: -40°C to +85°C
    Reliable even at freezing temparatures
    Universal Input 85-305VAC


    Standards

    EN60335


    Specifications

    AttributeValue
    Output Voltage5V dc
    Output Current600mA
    Power Rating3W
    Number of Outputs1
    Input Voltage120 → 430 V dc, 85 → 305 V ac
    Mounting TypeChassis Mount
    Package TypeEncapsulated
    Width50.3mm
    Depth11mm
    Weight41g
    Efficiency70%
    Maximum Temperature+85°C
    Minimum Temperature-40°C
