Recom Switching Power Supply, RACM100-24S, 24V dc, 4.17A, 100W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 877-1810
- Mfr. Part No.:
- RACM100-24S
- Brand:
- Recom
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£88.95
(exc. VAT)
£106.74
(inc. VAT)
- RS Stock No.:
- 877-1810
- Mfr. Part No.:
- RACM100-24S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 24V dc | |
| Output Current | 4.17A | |
| Power Rating | 100W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 91.4mm | |
| Width | 62mm | |
| Medical Approved | Yes | |
| Depth | 39.2mm | |
| Series | RACM100 | |
| Weight | 210g | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 24V dc | ||
Output Current 4.17A | ||
Power Rating 100W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 91.4mm | ||
Width 62mm | ||
Medical Approved Yes | ||
Depth 39.2mm | ||
Series RACM100 | ||
Weight 210g | ||
Maximum Temperature +85°C | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- TW

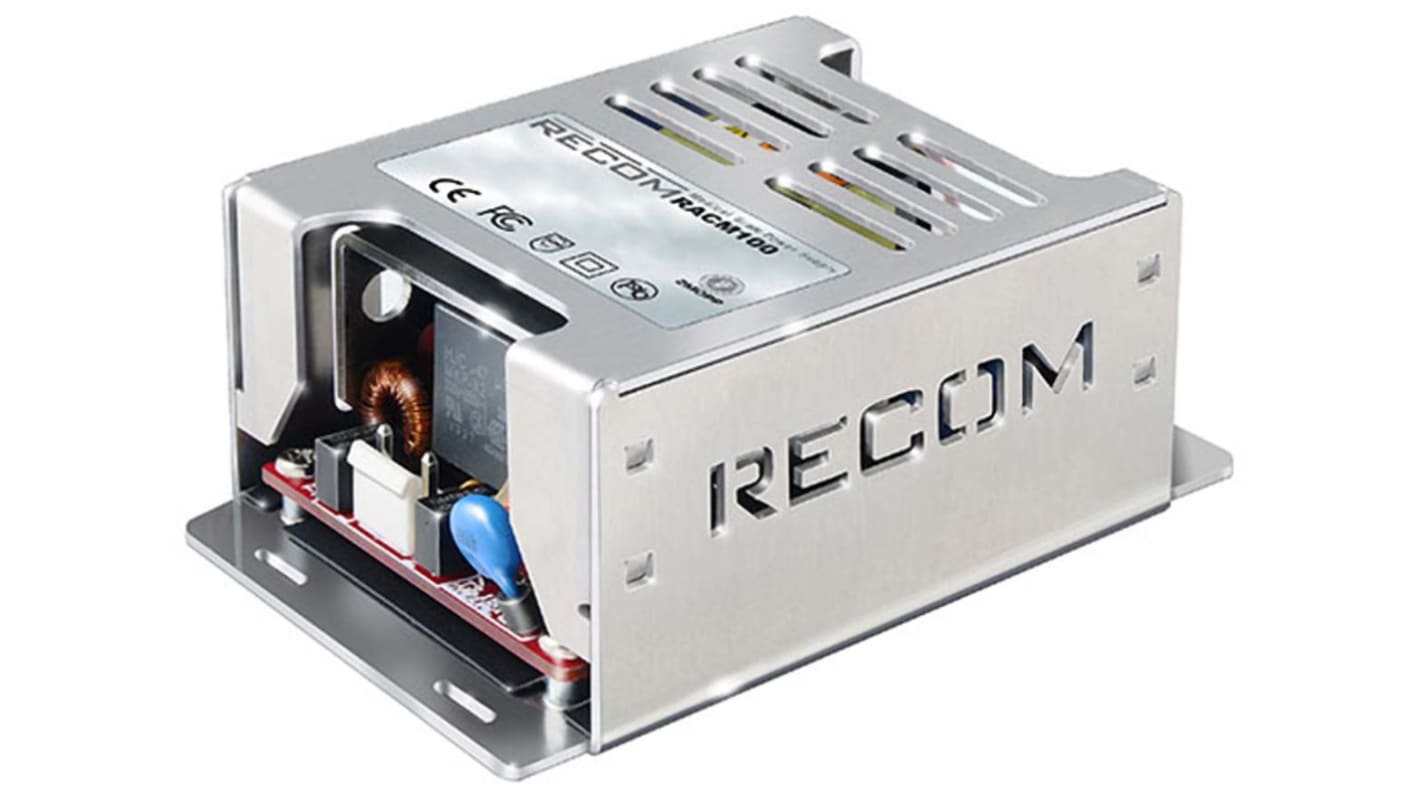

100W Switch Mode Medical Enclosed Power Supply - RACM100 Series
The Recom RACM100 Series is a range of medical power supplies with 2 x MOPP safety approvals. These enclosed AC-DC converters are great where space is an issue, with their compact 3x2 inches package. The RACM100 enclosed power supplies feature a universal input voltage range from 85 to 264Vac, 4kVac isolation and require no minimum load. The AC-DC converters come with a fully protected range of output voltages. The RACM100 series of enclosed power supplies also feature BF rated outputs with less than 100μA leakage current and a built-in class B EMI filter. These single output AC-DC converters are certified to medical safety standards IEC/ES/EN-60601-1 3rd edition.
2MOPP/250Vac
Suitable for built in Class II Applications
Wide Input Voltage Range (85-264Vac)
Low Leakage Current (˂75μA)
5000m Operation
Active Power Factor Correction
Suitable for built in Class II Applications
Wide Input Voltage Range (85-264Vac)
Low Leakage Current (˂75μA)
5000m Operation
Active Power Factor Correction
Standards
EN-55011, EN-55022, ES-60601, IEC/EN-60601
Approvals
CE, FC, cULus, UL, 2MOPP
