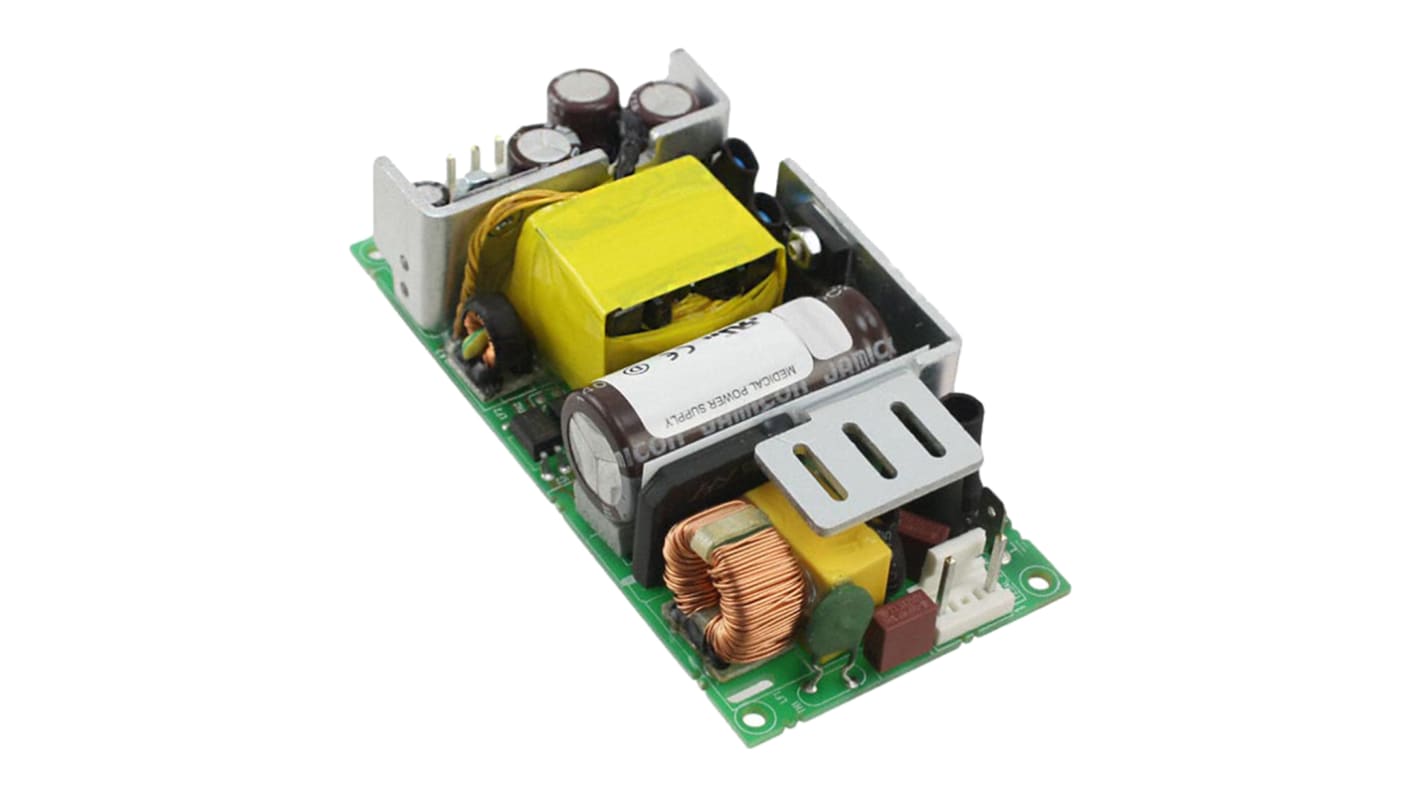

SL POWER CONDOR Embedded Switch Mode Power Supply SMPS, MINT1065A4875C01, 48V dc, 1.35A, 65W, 1 Output, 100 →

View all Switching Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
851-3239
Mfr. Part No.:
MINT1065A4875C01
Brand:
SL POWER CONDOR
Find similar products by selecting one or more attributes.
Select all

Brand

SL POWER CONDOR

Output Voltage

48V dc

Output Current

1.35A

Power Rating

65W

Number of Outputs

1

Input Voltage

100 → 240V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

101.6mm

Width

50.8mm

Depth

26mm

Efficiency

90%

Weight

150g

Minimum Temperature

0°C

Maximum Temperature

+70°C

COO (Country of Origin):
MX

Switch Mode, Single Output, Medical Power Supply, MINT1065 Series


The SL Power Electronics MINT1065 family is a series of single output, medical open-frame AC/DC power supplies. These switch mode power supplies come in a size of 2 x 4 x 1.2 inches, the MINT1065 provides 65W continuous output power, with up to 90% efficiency. The MINT1065 power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit, overload and overvoltage. The MINT1065 series of switching power supplies are ideal for medical applications.

65W Convection Cooled AC-DC Power Supply
Universal Input 90-264Vac
Less than 0.5W No Load Power Dissipation
Rugged EMC Compliant Design
Small package
Meets Efficiency Level IV Efficiency

Standards

EN/IEC/UL60601-1, 2nd Edition
EN/IEC/UL60950-1, 2nd Edition

Approvals

UL, EN, IEC
