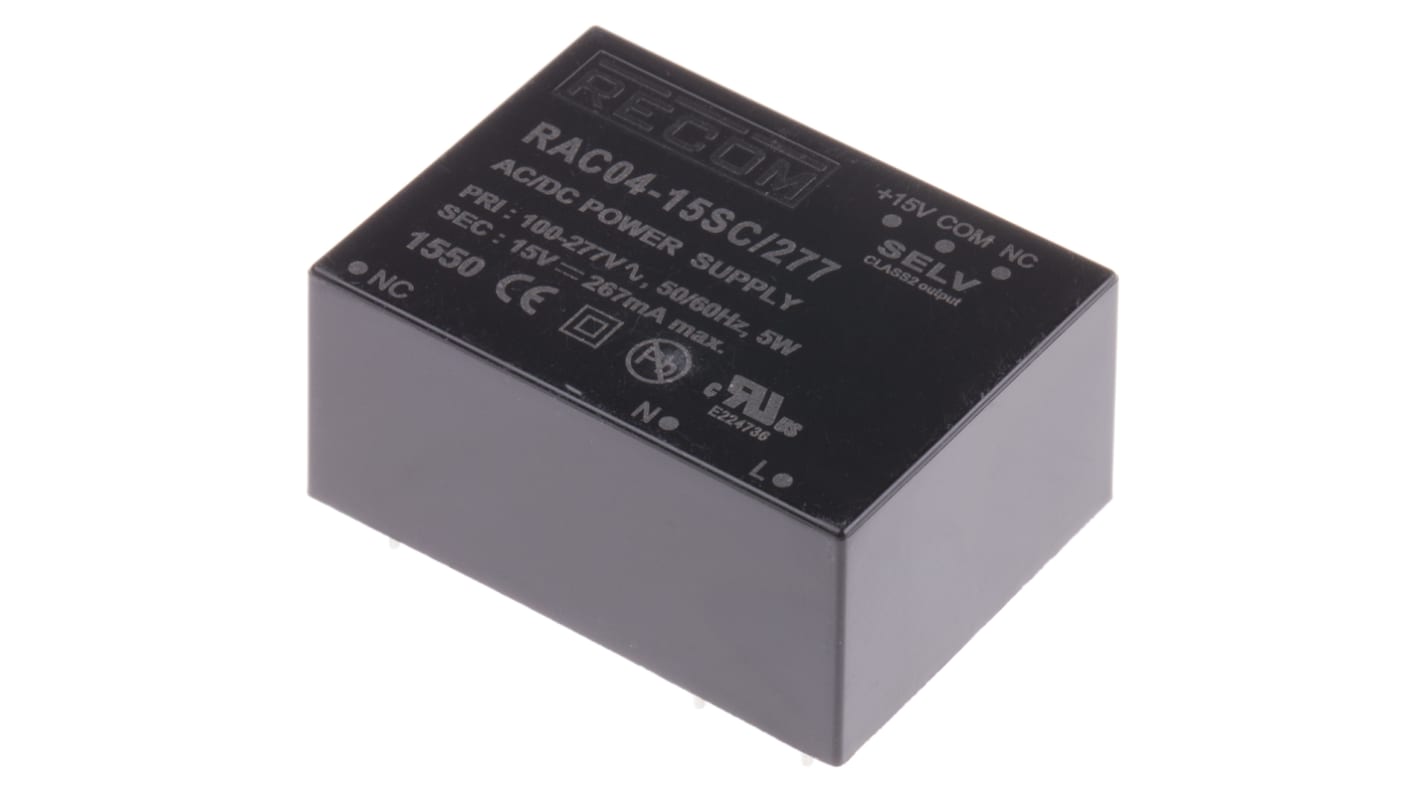

Recom Switching Power Supply, RAC04-15SC/277, 15V dc, 267mA, 4W, 1 Output, 115 → 370 V dc, 80 → 264V ac
- RS Stock No.:
- 843-9490
- Mfr. Part No.:
- RAC04-15SC/277
- Brand:
- Recom
Available to back order for despatch 21/11/2024
Added
Price Each (In a Pack of 12)
£17.543
(exc. VAT)
£21.052
(inc. VAT)
| Units | Per unit | Per Pack* |
| 12 - 48 | £17.543 | £210.516 |
| 60 - 108 | £17.017 | £204.204 |
| 120 - 288 | £16.491 | £197.892 |
| 300 - 588 | £15.964 | £191.568 |
| 600 + | £15.438 | £185.256 |
| *price indicative | ||
- RS Stock No.:
- 843-9490
- Mfr. Part No.:
- RAC04-15SC/277
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 4W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC04/277 Series
The RAC04/277 encapsulated Power Supply is part of the Recom Powerline series. This 4W Regulated AC/DC converter offers universal output and High efficiency of up to 79%. The RAC04/277 has a Maximum No Load ˂50mW and Maximum input Power ˂0.5W at 0.3W Output Power. The Recom RAC04/277 regulated converter comes with a three year warranty.
Universal input 90-305Vac
High efficiency up to 79%
Isolated Output 3.75kVac / 1 minute
Short circuit protection
Meets EN55022 Class B
Fixed Output Voltage
High efficiency up to 79%
Isolated Output 3.75kVac / 1 minute
Short circuit protection
Meets EN55022 Class B
Fixed Output Voltage
Standards
EN-60950-1, UL-60950-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 15V dc |
| Output Current | 267mA |
| Power Rating | 4W |
| Number of Outputs | 1 |
| Input Voltage | 115 → 370 V dc, 80 → 264V ac |
| Mounting Type | Through Hole |
| Package Type | Encapsulated |
| Length | 36.7mm |
| Width | 27.2mm |
| Depth | 17.1mm |
| Series | RAC04/277 |
| Efficiency | 79% |
| Minimum Temperature | -25°C |
| Maximum Temperature | +65°C |
| Weight | 31.5g |
