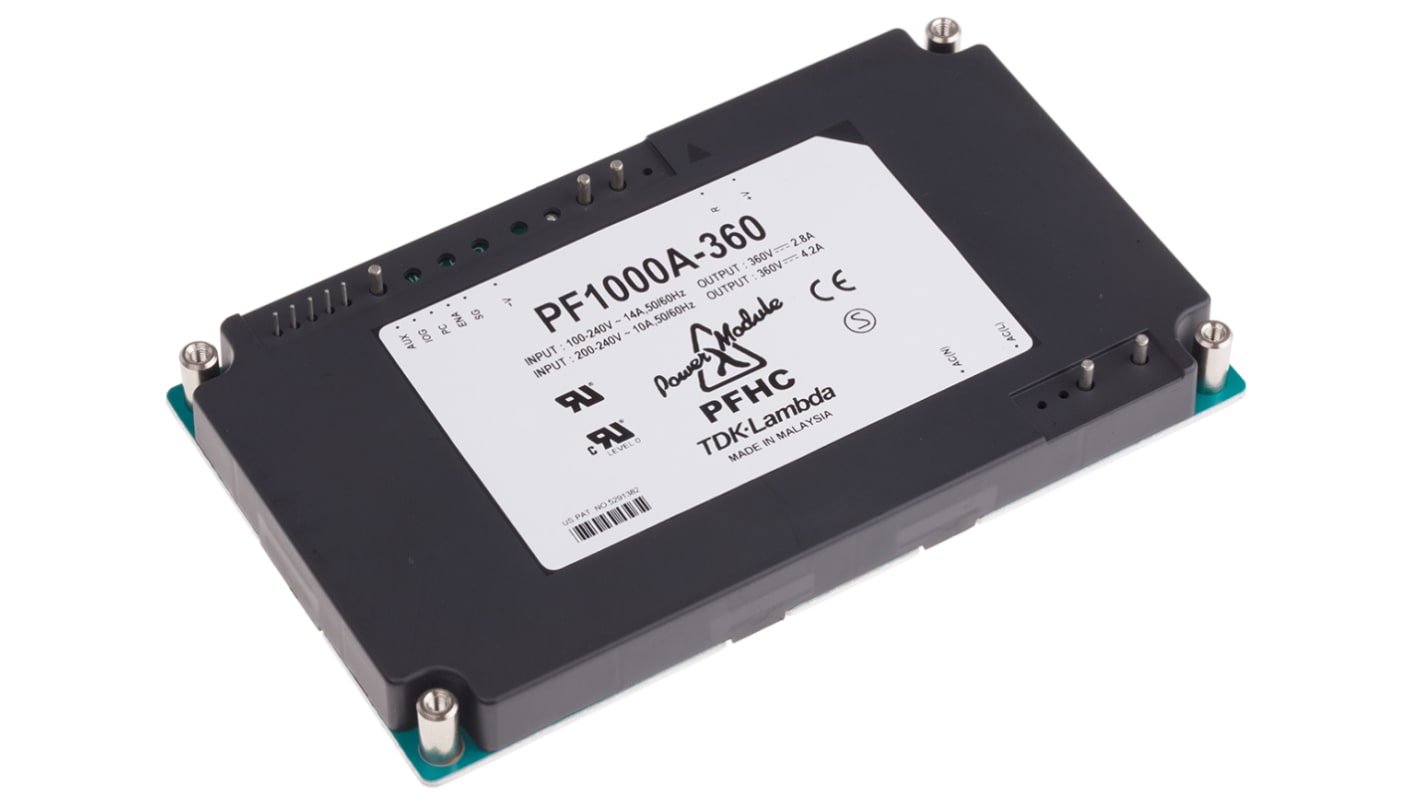

TDK-Lambda Switching Power Supply, PF-1000A-360, 360V dc, 4.2A, 1.5kW, 1 Output, 85 → 265V ac Input Voltage

RS Stock No.:: 839-9695
Mfr. Part No.:: PF-1000A-360
Brand:: TDK-Lambda

TDK-Lambda Switching Power Supply, PF-1000A-360, 360V dc, 4.2A, 1.5kW, 1 Output, 85 → 265V ac Input Voltage

Price Each

£232.93

(exc. VAT)

£279.52

(inc. VAT)

6 In stock - FREE next working day delivery available

Units	Per unit
1 - 4	£232.93
5 - 9	£226.88
10 - 24	£221.14
25 - 49	£215.68
50 +	£210.48

RS Stock No.:: 839-9695
Mfr. Part No.:: PF-1000A-360
Brand:: TDK-Lambda

Technical Reference

Datasheet - PF

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

TDK-Lambda, 500W to 1000W PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply, PF-A Series

The TDK Lambda PF Series of Rectifier and Power Factor Correction Modules come with efficiency up to 90%. These encapsulated power supplies are baseplate-cooled products, particularly suited for working in harsh environments. The PF series accepts a wide, universal AC input from 85V to 265V at 47-63Hz and features active power factor correction and an input to output isolation of 3kV for one minute. The PF series of encapsulated power supplies provides a convenient AC-DC solution for applications such as distributed power architectures and customised designs with specific dimensions.

Suitable for use in Custom Power Supplies
Parallel operation
12.7mm low profile
Power Factor corrected (PF)
Supports Global Use
Operation up to 85˚C
Operates in harsh environments

Standards

UL, CSA, EN, CE Mark

Approvals

UL60950-1, CSA22.2 No.60950-1, EN60950-1, & CE Mark

Specifications

Attribute	Value
Output Voltage	360V dc
Output Current	4.2A
Power Rating	1.5kW
Number of Outputs	1
Input Voltage	85 → 265V ac
Mounting Type	PCB Mount
Package Type	Encapsulated
Length	146mm
Width	86mm
Depth	12.7mm
Efficiency	94%
Weight	250g
Minimum Temperature	-20°C
Maximum Temperature	+85°C
