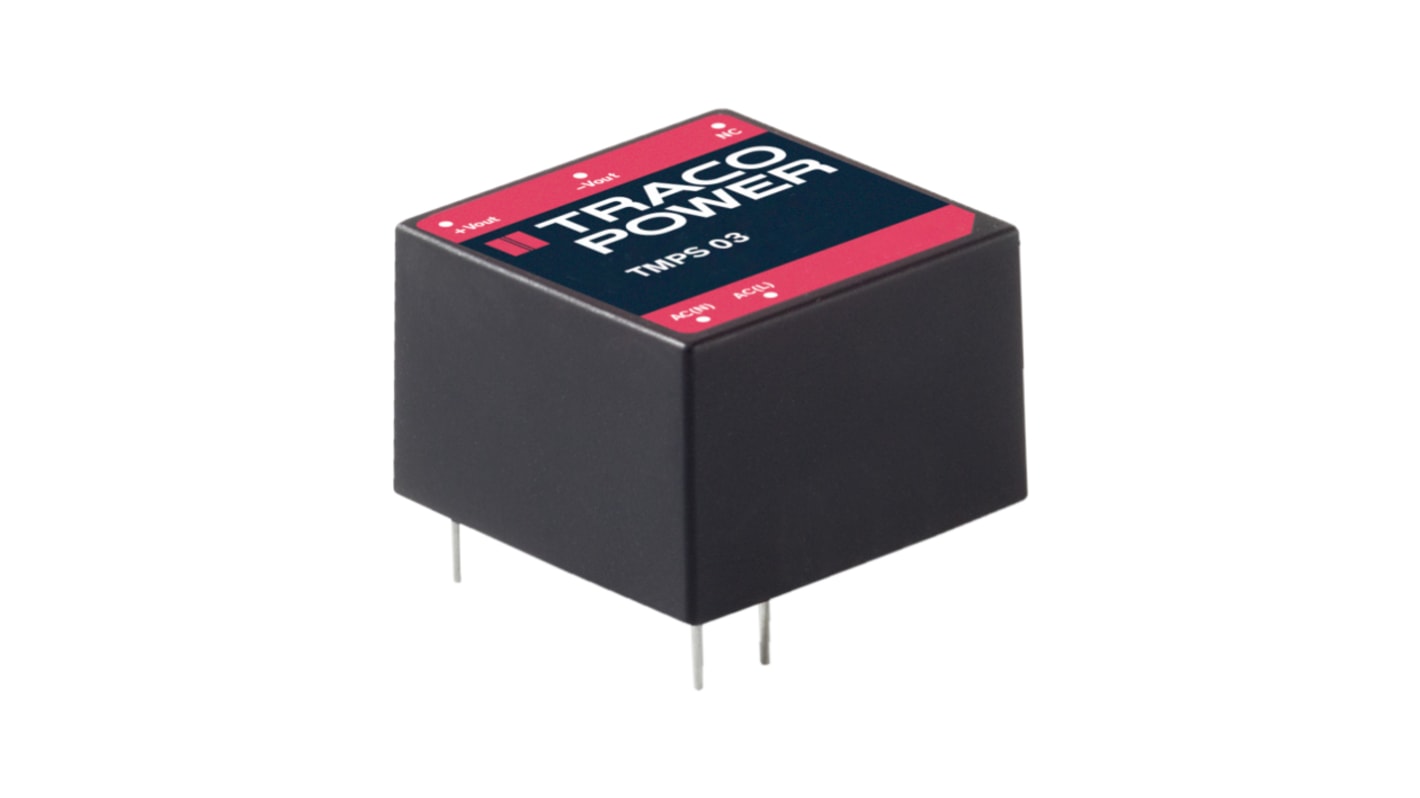

TRACOPOWER Switching Power Supply, TMPS 03-105, 5V dc, 600mA, 3W, 1 Output, 120 → 370 V, 85 → 264 V Input
- RS Stock No.:
- 830-3228
- Mfr. Part No.:
- TMPS 03-105
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£13.37
(exc. VAT)
£16.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 67 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £13.37 |
5 - 9 | £12.97 |
10 - 24 | £12.57 |
25 - 49 | £12.04 |
50 + | £11.50 |
*price indicative
- RS Stock No.:
- 830-3228
- Mfr. Part No.:
- TMPS 03-105
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 5V dc | |
Output Current | 600mA | |
Power Rating | 3W | |
Number of Outputs | 1 | |
Input Voltage | 120 → 370 V, 85 → 264 V | |
Mounting Type | PCB Mount | |
Package Type | Encapsulated | |
Length | 25.4mm | |
Width | 25.4mm | |
Medical Approved | No | |
Embedded | No | |
Depth | 16.3mm | |
Series | TMPS 03 | |
Efficiency | 72% | |
Minimum Temperature | -25°C | |
Weight | 17.4g | |
Maximum Temperature | +70°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Output Current 600mA | ||
Power Rating 3W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V, 85 → 264 V | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 25.4mm | ||
Width 25.4mm | ||
Medical Approved No | ||
Embedded No | ||
Depth 16.3mm | ||
Series TMPS 03 | ||
Efficiency 72% | ||
Minimum Temperature -25°C | ||
Weight 17.4g | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER TMPS 03 Series Switching Power Supply, 3W Power Rating, 120 to 370 V/85 to 264 V Input Voltage - TMPS 03-105
This switching power supply is designed to deliver efficient power for various electronic applications. With an output voltage of 5V DC and a current rating of 600mA, it is essential for devices that need stable power delivery. Its compact encapsulated design ensures easy integration into different systems, making it beneficial in both electrical and mechanical sectors.
Features & Benefits
• Single output for straightforward connectivity
• Efficiency rating of 72% for reduced energy waste
• PCB mount design facilitates space-saving installations
• Wide input voltage range enhances application versatility
• Operates effectively across varying temperatures
• Lightweight at 17.4g for convenient installation
• Efficiency rating of 72% for reduced energy waste
• PCB mount design facilitates space-saving installations
• Wide input voltage range enhances application versatility
• Operates effectively across varying temperatures
• Lightweight at 17.4g for convenient installation
Applications
• Suitable for automation control systems
• Ideal for powering LED displays and signage
• Effective for low-profile equipment
• Employed in electronic devices requiring stable voltage
• Used in industrial settings to power sensors and actuators
• Ideal for powering LED displays and signage
• Effective for low-profile equipment
• Employed in electronic devices requiring stable voltage
• Used in industrial settings to power sensors and actuators
How does the efficiency impact energy consumption?
The efficiency rating indicates the proportion of input energy converted into output. A higher efficiency results in less energy waste, leading to lower operating costs.
Can this power supply be used in outdoor applications?
While it performs well in various conditions, ensure that the installation site is protected from extreme weather to maintain its effectiveness.
What is the mounting type, and how does it affect installation?
This unit is designed for PCB mounting, allowing easy integration into circuit boards, making the installation process efficient.
What input voltage range does it support, and is it versatile?
It supports a wide input voltage range, promoting compatibility with various power supplies and enhancing versatility across different applications.
Is there a specific environment for optimal operation?
The unit operates effectively within a temperature range of -25 to +70°C, making it suitable for diverse operating conditions.
Switch Mode - Traco, TMPS Series
