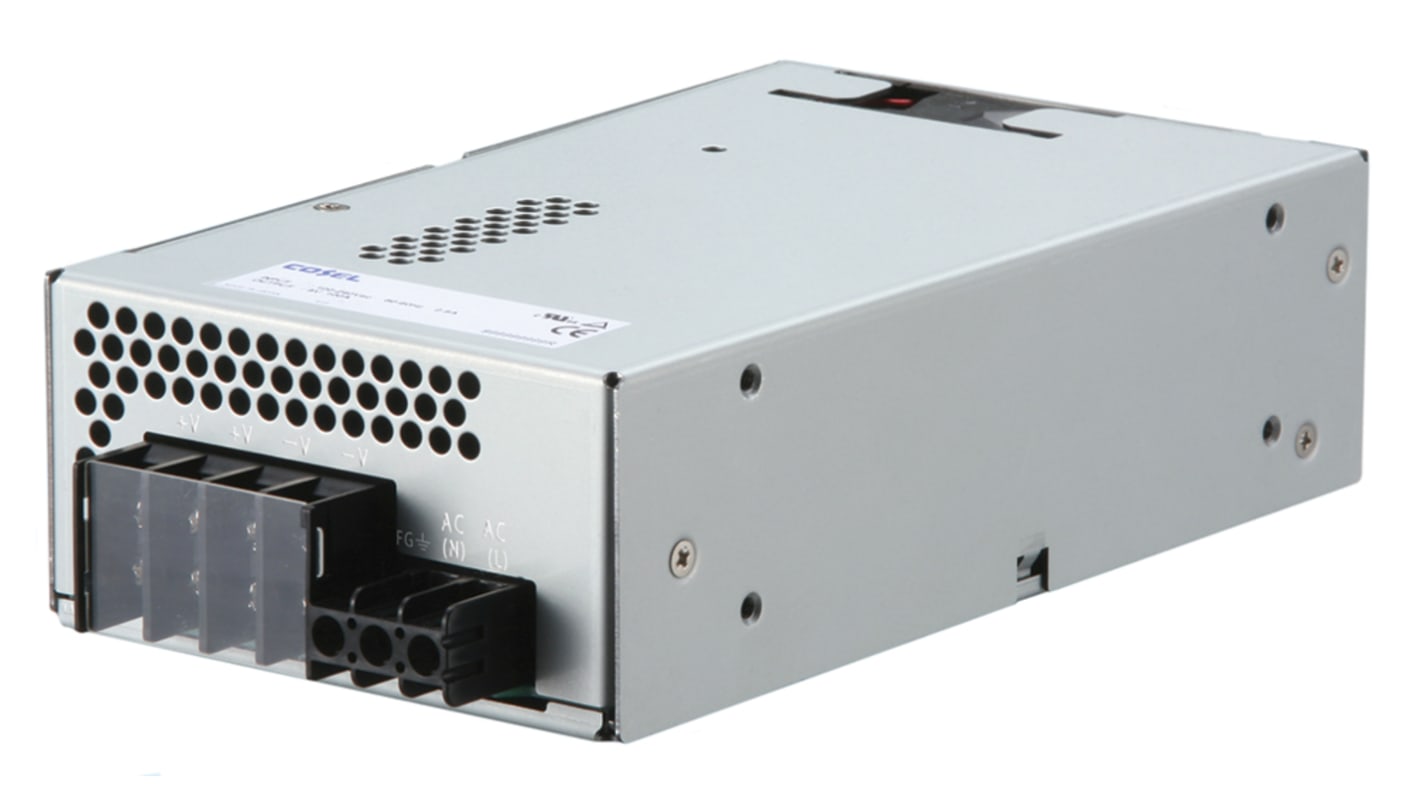

Cosel Embedded Switch Mode Power Supply SMPS, 15V dc, 40A, 600W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 828-8567
- Mfr. Part No.:
- PLA600F-15
- Brand:
- Cosel
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£124.22
(exc. VAT)
£149.06
(inc. VAT)
- RS Stock No.:
- 828-8567
- Mfr. Part No.:
- PLA600F-15
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 15V dc | |
| Output Current | 40A | |
| Power Rating | 600W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 239mm | |
| Width | 61mm | |
| Depth | 120mm | |
| Efficiency | 84% | |
| Maximum Temperature | +70°C | |
| Weight | 2kg | |
| Minimum Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 15V dc | ||
Output Current 40A | ||
Power Rating 600W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 239mm | ||
Width 61mm | ||
Depth 120mm | ||
Efficiency 84% | ||
Maximum Temperature +70°C | ||
Weight 2kg | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- CN
PLA600F Series Single Output Switch Mode Power Supply
PLA600F embedded switch mode power supplies (SMPS) from Cosel feature a compact design, with a low profile design that meets 2U height (61 mm). PLA600F switching power suppliers are a cost effective solution with a long lifetime.
Features and Benefits:
Screw hold type terminal block
Green LED operating indicator
Slow fan speed at no load
Harmonic attenuator
Different optional functions are available
Forced cooling by an internal fan
Note
Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations
Standards
UL60950-1, cUL (CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Conducted noise complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Harmonic attenuator complies with IEC61000-3-2 class A
Complies with SEMI F47
Conducted noise complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Harmonic attenuator complies with IEC61000-3-2 class A
Complies with SEMI F47
Approvals
UL, US, TUV, CE
