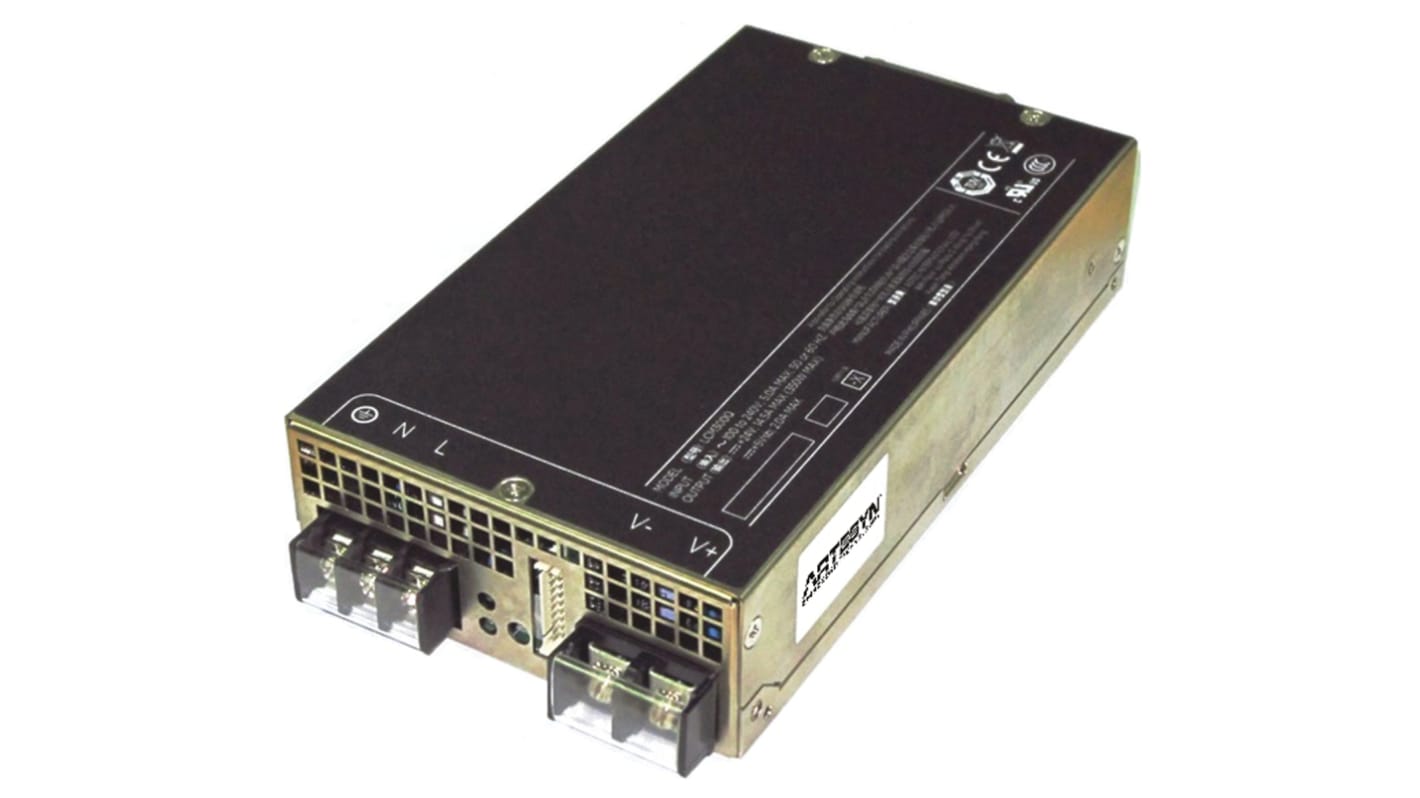

Artesyn, LCM300U -T Switching Power Supply 36V dc, 310 W 374V dc
- RS Stock No.:
- 819-3624
- Mfr. Part No.:
- LCM300U -T
- Brand:
- Artesyn
Subtotal (1 unit)*
£177.92
(exc. VAT)
£213.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £177.92 |
*price indicative
- RS Stock No.:
- 819-3624
- Mfr. Part No.:
- LCM300U -T
- Brand:
- Artesyn
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Artesyn | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 36V dc | |
| Number of Outputs | 1 | |
| Mount Type | Rack | |
| Power | 310W | |
| SMPS Output Current | 8.4A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 177.8mm | |
| Length | 101.6mm | |
| Width | 41mm | |
| Weight | 800g | |
| Standards/Approvals | CSA, RoHS, UL | |
| Series | LCM300Q | |
| Efficiency | 91% | |
| Maximum Input Voltage | 374V dc | |
| Minimum Input Voltage | 127V dc, 90V dc | |
| Output Current | 8.4A | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Artesyn | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 36V dc | ||
Number of Outputs 1 | ||
Mount Type Rack | ||
Power 310W | ||
SMPS Output Current 8.4A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Depth 177.8mm | ||
Length 101.6mm | ||
Width 41mm | ||
Weight 800g | ||
Standards/Approvals CSA, RoHS, UL | ||
Series LCM300Q | ||
Efficiency 91% | ||
Maximum Input Voltage 374V dc | ||
Minimum Input Voltage 127V dc, 90V dc | ||
Output Current 8.4A | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- PH
300W, Switch Mode, Medical Approved, Single Output Embedded Power Supply - LCM300
The Emerson Network Power LCM300 Series is a very cost effective solution for single output bulk front end Power supplies. This Power supply has a typical high efficiency of 91% and comes in a very convenient size. The LCM300 can be used for applications in industrial, medical, military and process automation.
Convenient size 7 x 4 x 1.6 inches
Industrial and Medical safety approvals
-40°C to 70°C with derating
Typical efficiency 91%
Variable speed Smart Fan
Total Max power 310 W
Total Max Current 25 A
Sinlge output
3 years Warranty
