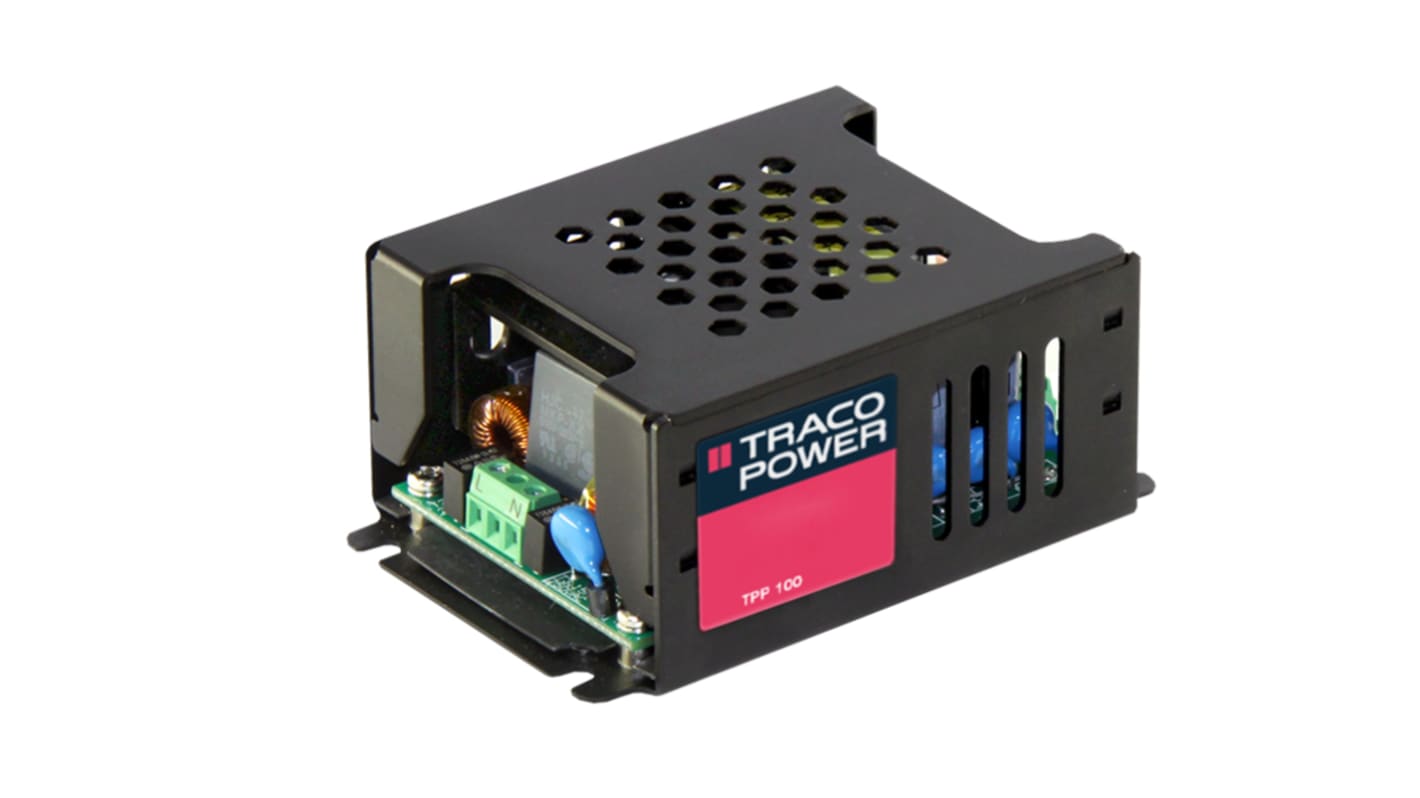

The Traco Power TPP 100 series of AC-DC power supplies feature reinforced double I/O isolation system, according to the latest medical safety standards. This Power supply has an excellent efficiency up to 92% which allows high power density for the standard packaging format. The full load operating temperature range of this AC-DC power supply is -25°C to 50°C with 50% load derating.
The TPP 100 series of power supplies comes with active power factor correction and EMC characteristic dedicated for applications in industrial and domestic fields. The power supplies are built using industrial quality grade components and excellent thermal management, which guarantees their reliability. Ideal applications of the TPP series of Power supplies are in medical devices and for demanding safety and space critical applications.

Highest power density encased 100 W power supply
Highest efficiency 91 to 92% across 10% – 100% load range
Active power factor correction (>95)
Protection class II prepared
Operating up to 5000m altitude
Adjustable output voltage

2 x MOPP Medical safety according to AAMI/ANSI ES 60601-1:2005(R) and IEC/EN 60601-1 3rd edition

This switching power supply is engineered for high efficiency and consistent performance, providing a power rating of 100W. With a compact enclosed design measuring 91.4mm x 62mm x 39.2mm, it is suitable for chassis mounting. The power supply supports an input voltage range of 120 to 370V DC and 85 to 264V AC, allowing for effective operation in various environments.

• Medical approved design enhances safety for medical applications
• Efficiency of 91% reduces power consumption
• Operating temperature range from -25 to +80°C for versatility
• Reinforced double I/O isolation meets safety standards
• Compact chassis mount format conserves installation space
• Earth leakage current below 75μA suitable for body floating applications

• Powering medical devices
• Industrial machinery power supply solutions

Yes, it operates effectively from -25°C to +80°C.

Yes, it features screw terminal connections for easy installation.

Switch Mode - Traco TPP Series
