- RS Stock No.:
- 753-8044
- Mfr. Part No.:
- O/P 3
- Brand:
- Vox Power
267 In stock - FREE next working day delivery available
36 available from Europe for delivery within 1 working day(s).
Added
Price Each
£62.00
(exc. VAT)
£74.40
(inc. VAT)
Units | Per unit |
1 - 4 | £62.00 |
5 - 9 | £60.14 |
10 - 24 | £58.28 |
25 - 49 | £56.42 |
50 + | £54.56 |
- RS Stock No.:
- 753-8044
- Mfr. Part No.:
- O/P 3
- Brand:
- Vox Power
Legislation and Compliance
Product Details

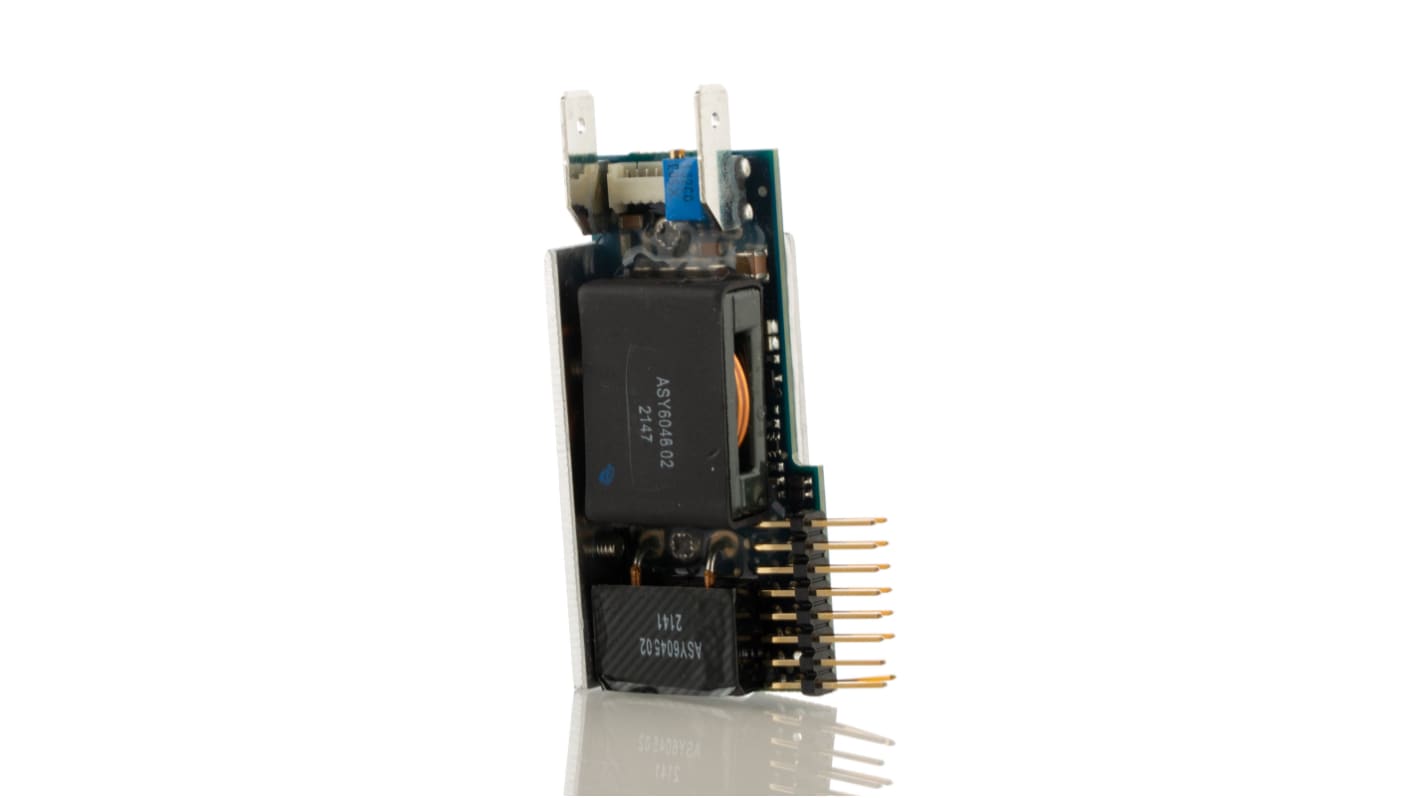

Vox Power Isolated Modular Power Supply
The Vox Power output-3 series 150W single-output isolated modular power supply has an output current rating of 7.5A. It has an isolated 24V output module for use with AC-DC front-end input module. The single output isolated module can be connected in parallel and series within the same chassis to achieve higher output current or voltage. By selecting the required output modules, a custom power solution can be configured offering high-power density and efficiencies of up to 89%.
Features and Benefits
Output voltage ranging between 9V to 30V
Power configurable product output module
Used with Nevo+600 and Nevo+1200 front ends
Power configurable product output module
Used with Nevo+600 and Nevo+1200 front ends
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Output Current | 7.5A |
Power Rating | 150W |
Number of Outputs | 1 |
Mounting Type | Rack Mount |
Package Type | Open Frame |
Length | 60mm |
Width | 35mm |
Depth | 17mm |
Series | O/P 3 |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Weight | 60g |
