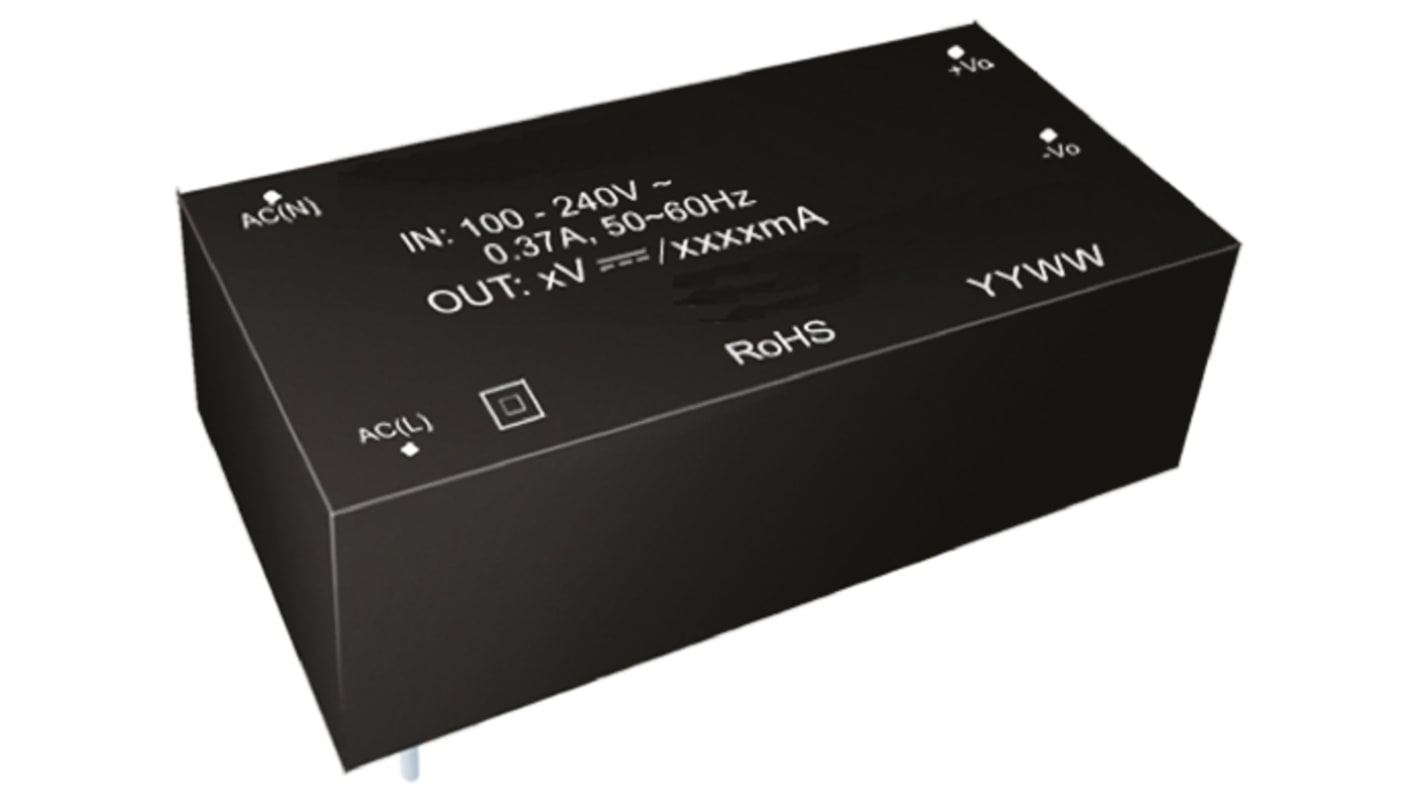

RS PRO Switching Power Supply, 5V dc, 3.6A, 18W, 1 Output, 120 → 370 V dc, 85 → 264 V ac Input Voltage

View all Switching Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
751-1406
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Output Voltage

5V dc

Output Current

3.6A

Power Rating

18W

Number of Outputs

1

Input Voltage

120 → 370 V dc, 85 → 264 V ac

Mounting Type

PCB Mount

Package Type

Encapsulated

Length

53.5mm

Width

28.5mm

Depth

23.5mm

Efficiency

78%

Weight

50g

Minimum Temperature

-40°C

Maximum Temperature

+70°C

Priced to Clear

Yes

COO (Country of Origin):
CN

RS 18W and 20W Single Output AC-DC Encapsulated PCB Mount Power Supply


18W and 20W single output AC-DC encapsulated PCB mount power supplies with a compact design, universal input voltage and low power consumption. These AC-DC encapsulated PCB mount power supplies also have a low ripple and noise, high efficiency and good EMC performance. Typical applications for these AC-DC encapsulated PCB mount power supplies include industrial, medical, instrumentation and telecommunications.

Universal input, safety class II
Low ripple and noise, 0.5W max standby power
Compact design
High efficiency
Output short circuit, over-currnet and over-voltage protection
EMC Compliance: EN 55022 Class B

Note

Power Derates: above 40°C

Standards

IEC60950, EN60950, UL60950
