RAC series 6W, universal input, single/dual output AC / DC converter power supply with a compact design. These universal input, single/dual output AC / DC converters are PCB mounting, low cost and have a high efficiency.

Wide input voltage range
Compact design
Low 250 mW standby power consumption
3kVAC isolation
Low ripple and noise output
Short circuit, overload, overvoltage and overtemperature protection
EMC compliance to EN 55022: 2006 + A1: 2007 / Class B
Harmonic current compliance to EN 61000-3-2:2006 Class A

MTBF to MIL-HDBK-217F
Power derates above 65°C

EN-60950-1, UL-60950-1, C22.2 No. 60950-1-07

cULus

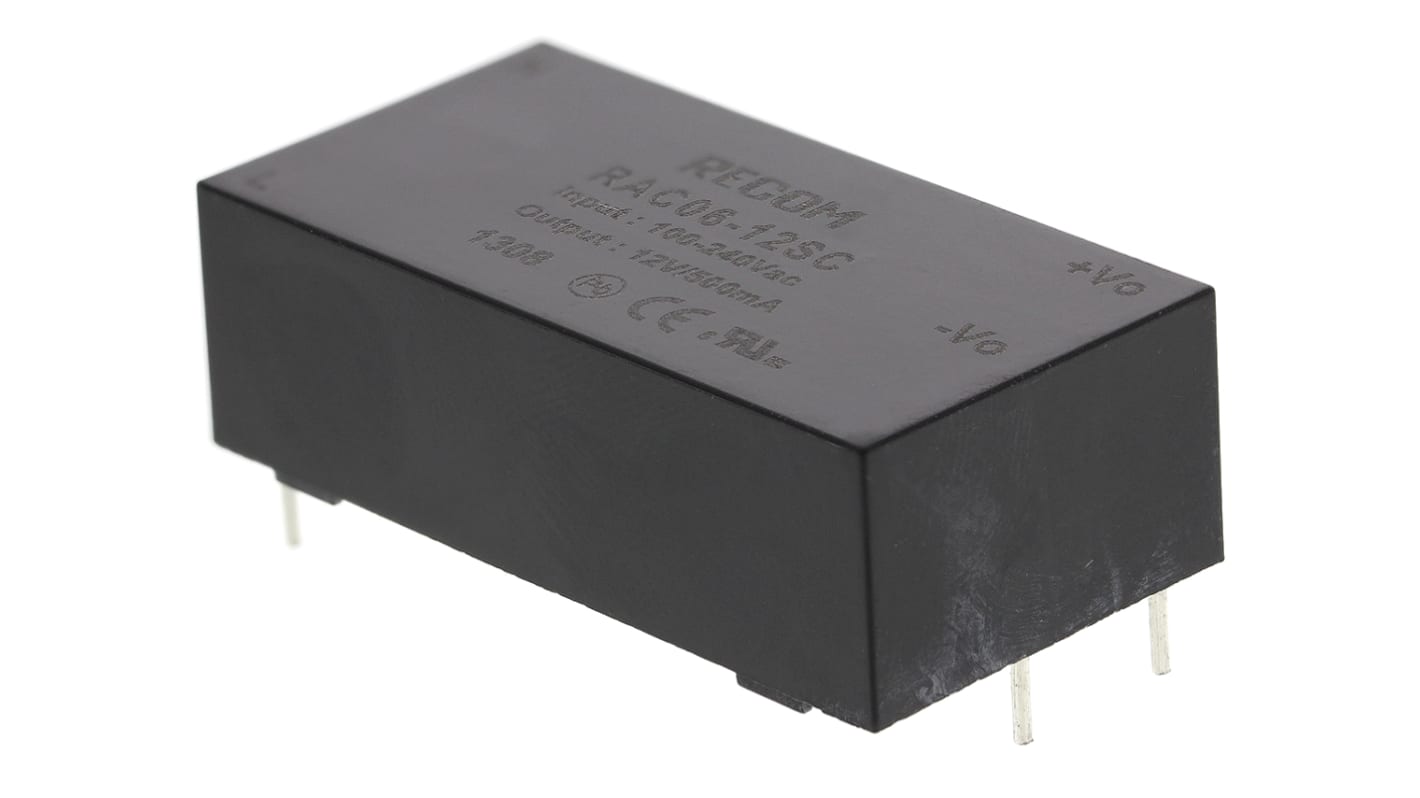

This compact encapsulated switching power supply from RECOM is an efficient solution that converts AC power input to DC output. The unit features both hiccup and automatic restart short-circuit protection modes that either fix or protect the supply until the fault is fixed. Without derating, this component has an operating temperature range between -25°C and +55°C. With cooling, you can use it in temperatures up to +75°C, so it's suitable for industrial use.

• Input voltage range of 80 to 264V AC to suit battery, mains and generator power supplies
• PCB mounting style makes it easy to install in your existing system
• 12V DC output suits smaller devices
• Dimensions of 53.5 (L) x 27.8 (W) x 15.6mm (H) are ideal for compact setups

• Domestic appliances
• Medical sector
• Laboratory equipment
• Manufacturing industry

Electrical devices need a specific and stable supply voltage in order to operate properly. By using this unit, you can ensure the input supply is efficiently converted to the right output.

Encapsulated units offer higher levels of electrical protection, so are suitable for sensitive medical or military machinery.
