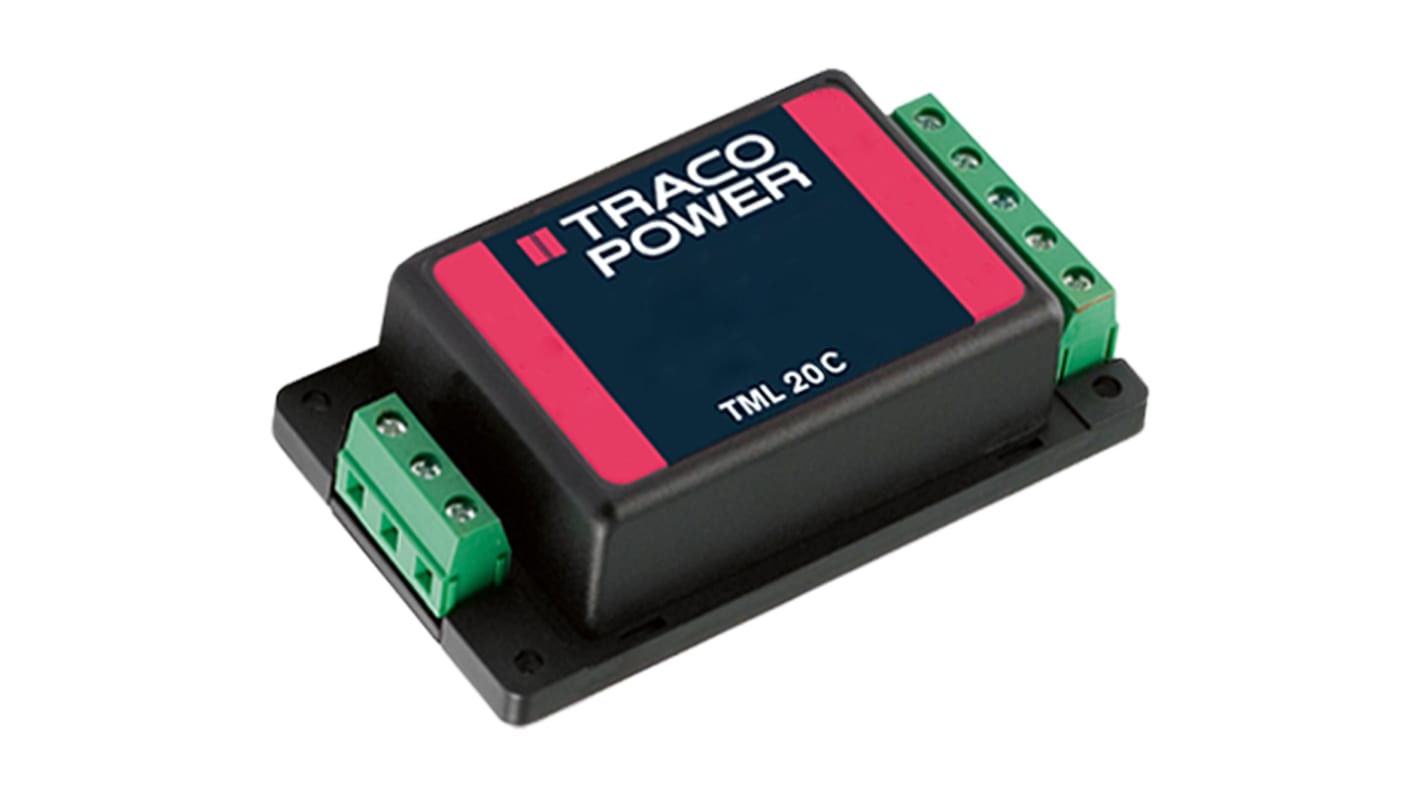

TRACOPOWER Switching Power Supply, TML 20212C, ±12V dc, 833mA, 20W, Dual Output, 100 → 375 V dc, 90 → 264
- RS Stock No.:
- 706-6149
- Mfr. Part No.:
- TML 20212C
- Brand:
- TRACOPOWER
45 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£52.83
(exc. VAT)
£63.40
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £52.83 |
| 5 - 9 | £51.25 |
| 10 - 24 | £49.66 |
| 25 - 49 | £47.55 |
| 50 + | £45.43 |
- RS Stock No.:
- 706-6149
- Mfr. Part No.:
- TML 20212C
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 14.9W to 40W, PCB/Chassis Mount, Encapsulated, Switch Mode AC-DC Power Supply - TML Series
Ultra compact fully encapsulated power supplies with increased power density
PCB mount with solder pins or chassis mount with screw terminals
EMI meets EN 55022, class B and FCC, level B
Safety Class I (Class II, TML40 models only)
Short circuit and overload protection
PCB mount with solder pins or chassis mount with screw terminals
EMI meets EN 55022, class B and FCC, level B
Safety Class I (Class II, TML40 models only)
Short circuit and overload protection
Note
Chassis mounting types available, see Manufacturer Part numbers with a 'C' suffix.
Power derating above 50°C is 3% per °C.
MTBF to MIL-HDBK-217F (25°C).
Power derating above 50°C is 3% per °C.
MTBF to MIL-HDBK-217F (25°C).
Standards
UL 60950-1, IEC 60950-1, EN 60950-1
Approvals
UL Recognised Component for Canada & US
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±12V dc |
| Output Current | 833mA |
| Power Rating | 20W |
| Number of Outputs | 2 |
| Input Voltage | 100 → 375 V dc, 90 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Encapsulated |
| Length | 96mm |
| Width | 54.6mm |
| Depth | 27.6mm |
| Efficiency | 75 → 84% |
| Minimum Temperature | -25°C |
| Maximum Temperature | +60°C |
| Weight | 155g |
