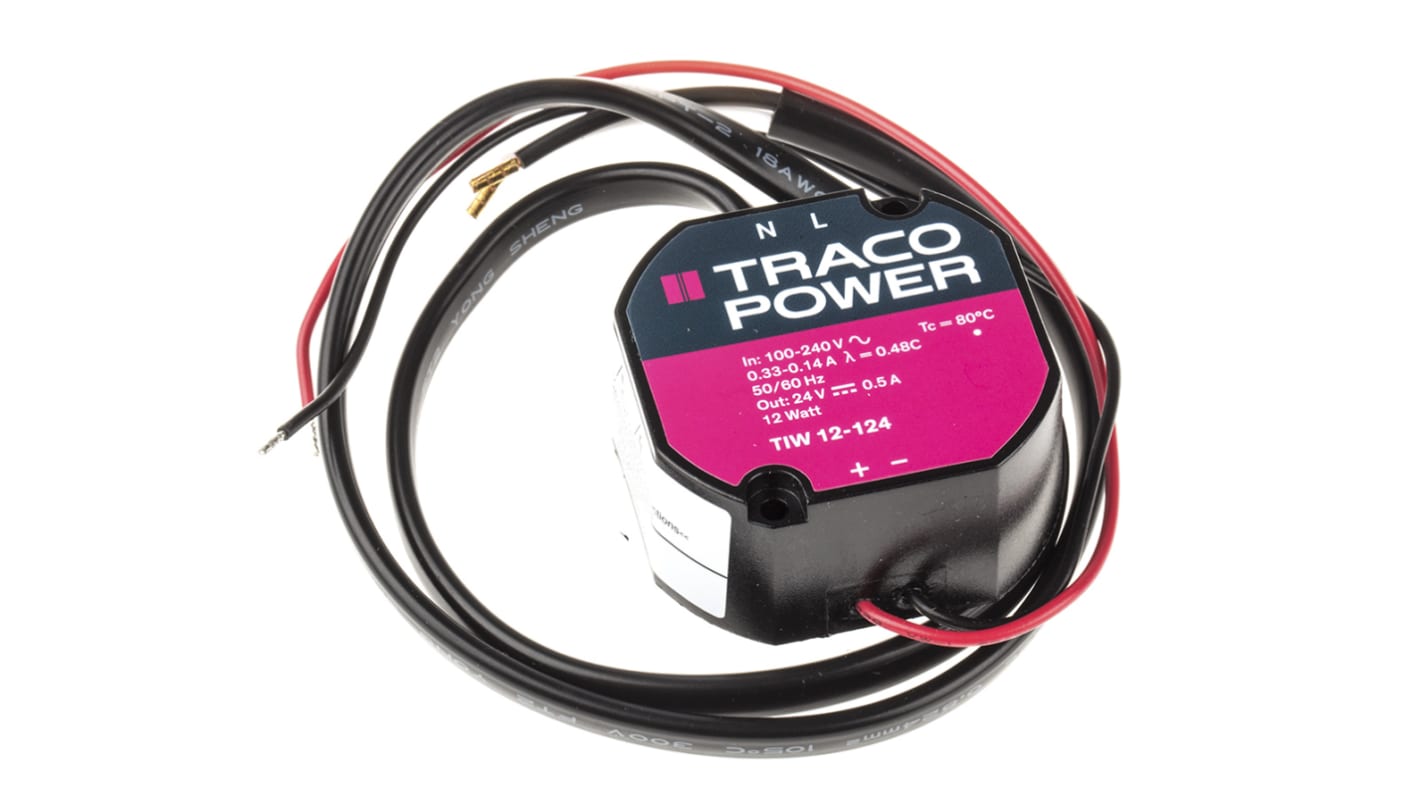

TRACOPOWER Switching Power Supply, TIW 12-124, 24V dc, 500mA, 12W, 1 Output, 93 → 264V ac Input Voltage
- RS Stock No.:
- 706-5950
- Distrelec Article No.:
- 169-60-858
- Mfr. Part No.:
- TIW 12-124
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£39.65
(exc. VAT)
£47.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 98 unit(s) ready to ship
- Plus 125 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £39.65 |
5 - 9 | £38.46 |
10 - 24 | £37.27 |
25 - 49 | £35.68 |
50 + | £34.10 |
*price indicative
- RS Stock No.:
- 706-5950
- Distrelec Article No.:
- 169-60-858
- Mfr. Part No.:
- TIW 12-124
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 24V dc | |
Output Current | 500mA | |
Power Rating | 12W | |
Number of Outputs | 1 | |
Input Voltage | 93 → 264V ac | |
Mounting Type | Surface Mount | |
Package Type | Encapsulated | |
Length | 50.2mm | |
Width | 48mm | |
Depth | 23.6mm | |
Efficiency | 80% | |
Maximum Temperature | +50°C | |
Minimum Temperature | -25°C | |
Weight | 80g | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Output Current 500mA | ||
Power Rating 12W | ||
Number of Outputs 1 | ||
Input Voltage 93 → 264V ac | ||
Mounting Type Surface Mount | ||
Package Type Encapsulated | ||
Length 50.2mm | ||
Width 48mm | ||
Depth 23.6mm | ||
Efficiency 80% | ||
Maximum Temperature +50°C | ||
Minimum Temperature -25°C | ||
Weight 80g | ||
- COO (Country of Origin):
- CN
Traco Power Switching Power Supply, 48 (W) x 50.2mm (L), 80% Efficiency - TIW Series - TIW 12-124
Want to take your electrical inputs to a different level? Choose this switching power supply from Traco Power. It takes an input voltage between 93 and 264V AC and converts it to a smooth 24V DC output. With a high efficiency rating of 80%, the unit produces little heat, so you get the best out of your energy use. Thanks to its surface mounting style, installation onto walls and standard flush boxes is as easy as ABC. To boost safety, the device comes with short-circuit protection, so minimises the risk of electrical fires.
Features & Benefits
• IP67 rating indicates resistance to dust and water
• Overload protection prevents damage to circuits
• Light weight of 80g for minimal strain on the mounting surface
• Power rating of 12W makes it suitable for low-powered applications
• Overload protection prevents damage to circuits
• Light weight of 80g for minimal strain on the mounting surface
• Power rating of 12W makes it suitable for low-powered applications
Applications
• Consumer electronics
• Telecommunications networks
• Renewable energy systems
• Telecommunications networks
• Renewable energy systems
Is this device suitable for industrial conditions?
Yes, a broad operating temperature range between -25°C and +50°C makes it ideal for use in challenging environments.
How durable is this switching power supply?
This unit has a fully encapsulated plastic housing, which offers impact resistance and supports a long service life.
