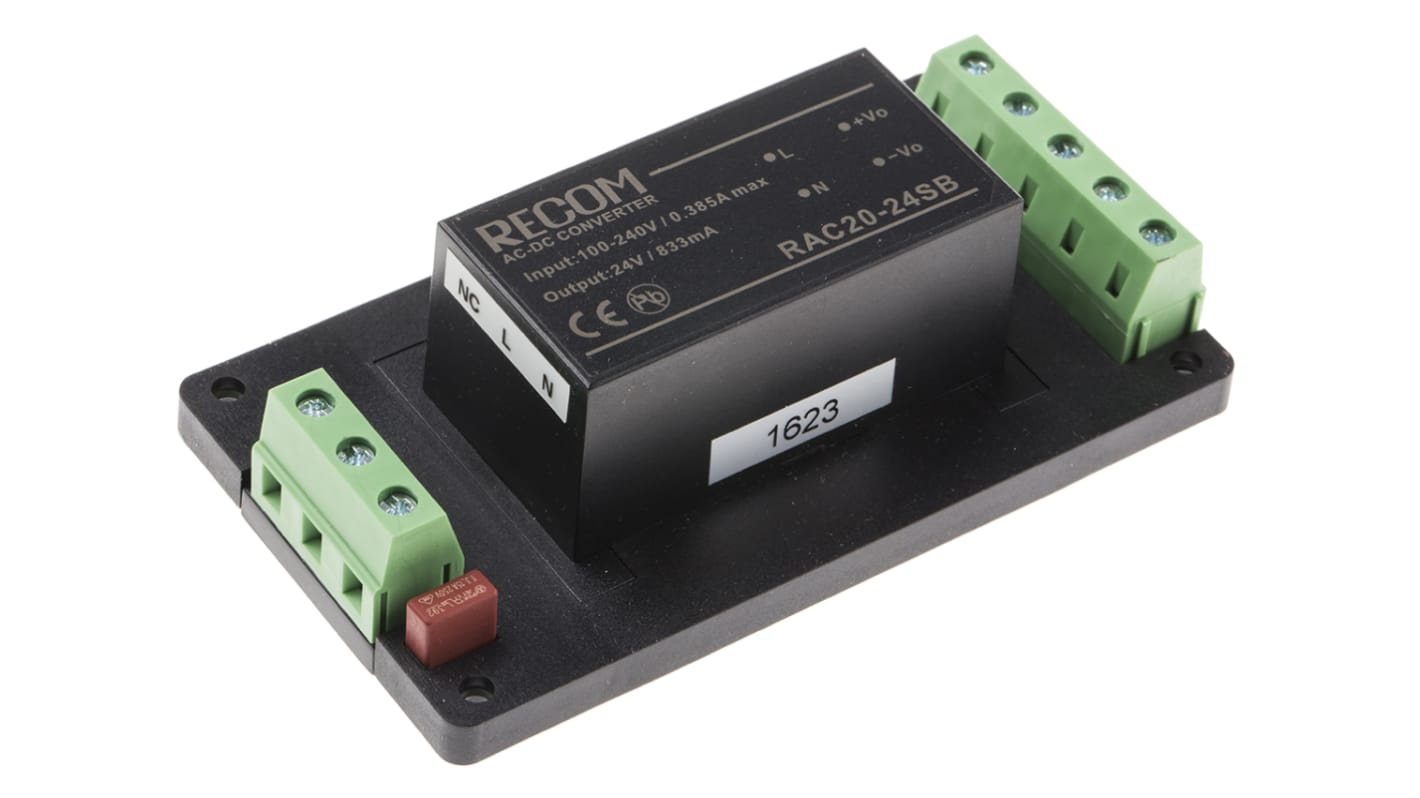

Recom Embedded Switch Mode Power Supply SMPS, RAC20-24SB-ST, 24V dc, 833mA, 20W, 1 Output, 90 → 264V ac Input
- RS Stock No.:
- 706-3544
- Mfr. Part No.:
- RAC20-24SB-ST
- Brand:
- Recom
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 706-3544
- Mfr. Part No.:
- RAC20-24SB-ST
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 24V dc | |
| Output Current | 833mA | |
| Power Rating | 20W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Encapsulated | |
| Length | 96mm | |
| Width | 53.9mm | |
| Depth | 29.1mm | |
| Efficiency | 83% | |
| Weight | 59g | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 24V dc | ||
Output Current 833mA | ||
Power Rating 20W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Encapsulated | ||
Length 96mm | ||
Width 53.9mm | ||
Depth 29.1mm | ||
Efficiency 83% | ||
Weight 59g | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- TW
Recom 20W, Screw Terminal Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC Series
Compact AC-DC power supply
Screw terminal module package
3kVac isolation
Low output ripple and noise
EMC designed to meet EN 55022 Class B / EN 55024
Short circuit protected
Low temperature operation
Anti vibration fixing
DIN-Rail mounting kit available for screw terminal modules, see stk no. 675-5119
Screw terminal module package
3kVac isolation
Low output ripple and noise
EMC designed to meet EN 55022 Class B / EN 55024
Short circuit protected
Low temperature operation
Anti vibration fixing
DIN-Rail mounting kit available for screw terminal modules, see stk no. 675-5119
Note
MTBF to MIL-HDBK-217F (+25°C).
Derate output power above 45°C (40°C for 5V model).
Derate output power above 45°C (40°C for 5V model).
Approvals
UL Recognised Component
