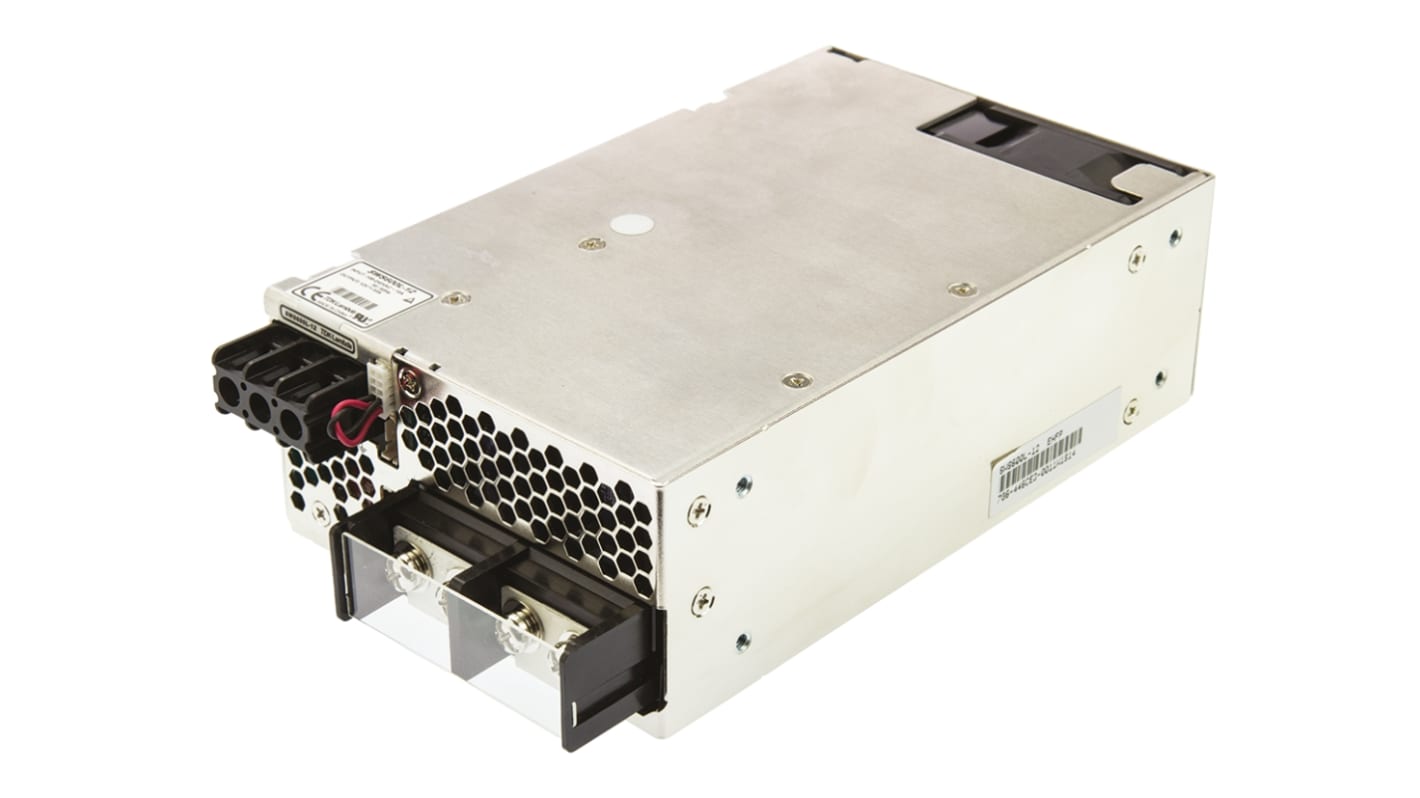

TDK-Lambda Switching Power Supply, SWS600L-12, 12V dc, 53A, 636W, 1 Output, 120 → 350 V dc, 85 → 265 V ac
- RS Stock No.:
- 680-2833
- Mfr. Part No.:
- SWS600L-12
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£288.08
(exc. VAT)
£345.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £288.08 |
5 - 9 | £280.59 |
10 - 24 | £273.39 |
25 - 49 | £266.76 |
50 + | £260.42 |
*price indicative
- RS Stock No.:
- 680-2833
- Mfr. Part No.:
- SWS600L-12
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Output Voltage | 12V dc | |
Output Current | 53A | |
Power Rating | 636W | |
Number of Outputs | 1 | |
Input Voltage | 120 → 350 V dc, 85 → 265 V ac | |
Mounting Type | Chassis Mount | |
Package Type | Enclosed | |
Length | 215mm | |
Width | 120mm | |
Medical Approved | Yes | |
Depth | 61mm | |
Weight | 1.6kg | |
Maximum Temperature | +74°C | |
Minimum Temperature | -20°C | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Output Voltage 12V dc | ||
Output Current 53A | ||
Power Rating 636W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 350 V dc, 85 → 265 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 215mm | ||
Width 120mm | ||
Medical Approved Yes | ||
Depth 61mm | ||
Weight 1.6kg | ||
Maximum Temperature +74°C | ||
Minimum Temperature -20°C | ||
600 to 1000W, Universal Input, Single Output, SWSL Series
Low profile
Quiet temperature controlled fan
Wide operating temperature range
Active power factor correction meets EN61000-3-2 Class A
Over current/voltage/temperature protection
Remote sense
Conducted and radiated EMI - EN55011 / EN55022-B, FCC Class B
Medical Approvals (SWS1000L)
Quiet temperature controlled fan
Wide operating temperature range
Active power factor correction meets EN61000-3-2 Class A
Over current/voltage/temperature protection
Remote sense
Conducted and radiated EMI - EN55011 / EN55022-B, FCC Class B
Medical Approvals (SWS1000L)
Note
Load derates linearly to 50% above 50°C.
Standards
EN 60950-1, EN50178, EN 60601-1 & UL60601-1 (1000W only), IEC61010-1 (600W only)
Approvals
UL, CSA
Switch Mode - TDK-Lambda
