MEAN WELL Switching Power Supply, RSP-1500-15, 15V dc, 100A, 1.5kW, 1 Output, 127 → 370 V dc, 90 → 264 V

View all Switching Power Supplies

Subtotal (1 unit)*

£368.41

(exc. VAT)

£442.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£368.41

*price indicative

RS Stock No.:
678-3865
Distrelec Article No.:
303-86-467
Mfr. Part No.:
RSP-1500-15
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

15V dc

Output Current

100A

Power Rating

1.5kW

Number of Outputs

1

Input Voltage

127 → 370 V dc, 90 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

278mm

Width

127mm

Depth

83.5mm

Efficiency

87%

Weight

3kg

Maximum Temperature

+70°C

Minimum Temperature

-20°C

COO (Country of Origin):
TW

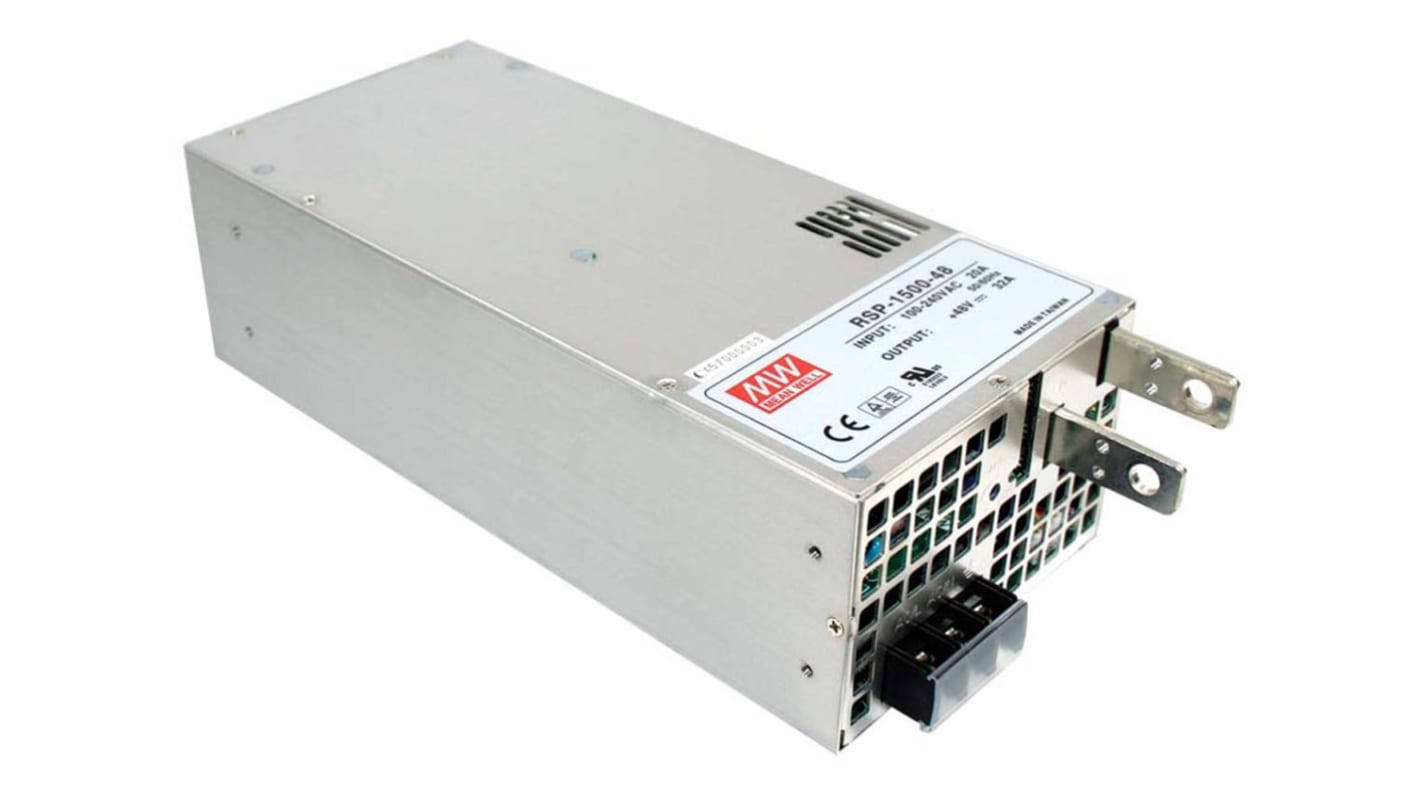

Mean Well Power Switch Mode Power Supply


The Mean Well RSP-1500 series 1500W single output AC to DC embedded switch mode power supply has an output current rating of 100A at 15VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 370VDC.
Note:
Derate output 2% per °C above 45°C (12V), 50°C (24, 27, 48V). The depth excludes terminal block.

Features and Benefits


high-efficiency up to 87%
Long life and high reliability
Built-in fan
Remote sense
Remote ON-OFF control
Alarm signal output
Current sharing up to 6000W (3+1)
LED indicator for power on
Easy installation, input screw terminals and output 2xM8 bolts (supplied)
Adjustable output voltage (±10%)
Short circuit protection
Overload protection
Overvoltage and over temperature protection

Applications


Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
Digital broadcasting
RF application

Certifications


EN 60950
UL 60950
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) / EN55011 (CISPR11)
EN55032 (CISPR32) / EN55011 (CISPR11)
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11

Note

Available on EPLAN.
