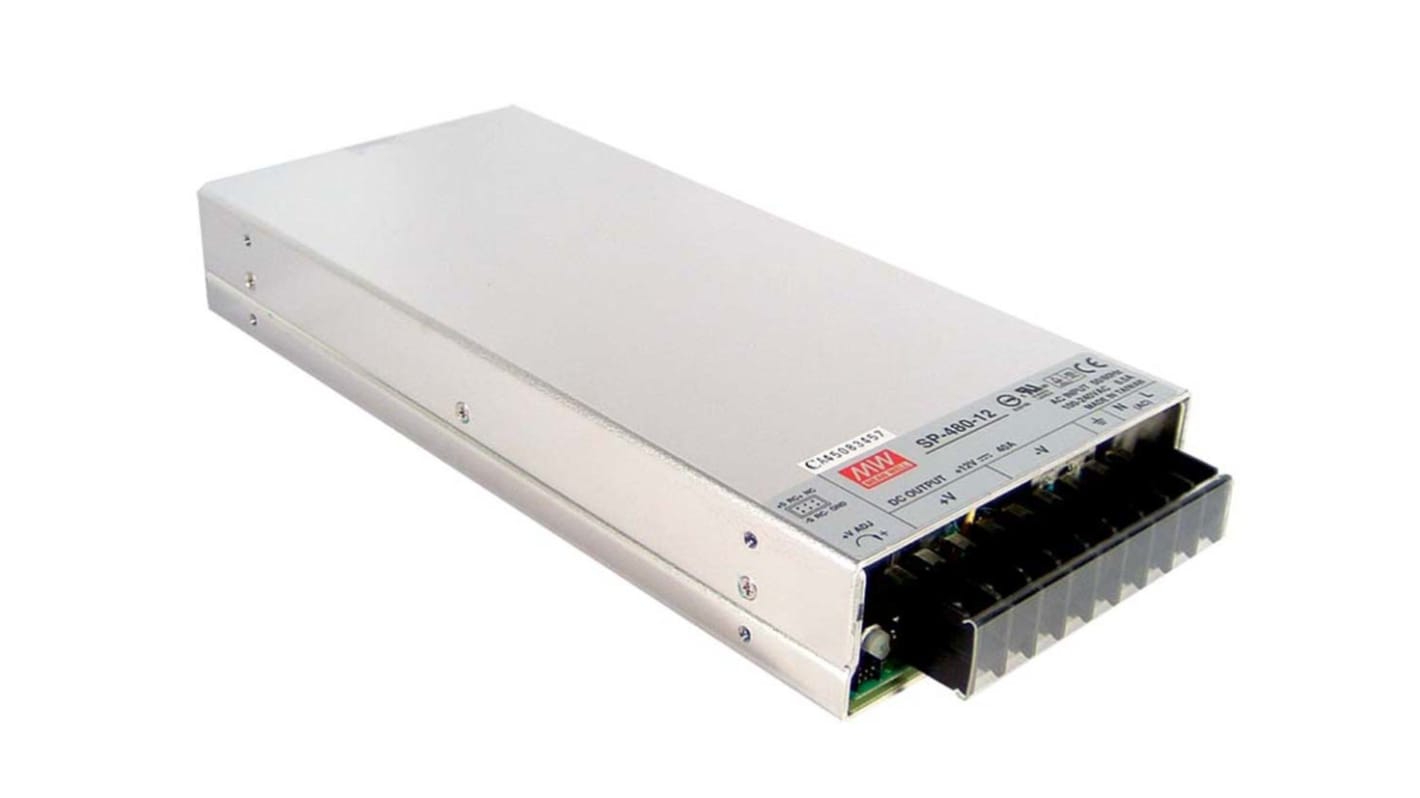

RS PRO Embedded Switch Mode Power Supply SMPS, 3.3V dc, 85A, 280.5W, 1 Output, 120 → 370 V dc, 85 → 264 V
- RS Stock No.:
- 678-3846
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£392.85
(exc. VAT)
£471.42
(inc. VAT)
- RS Stock No.:
- 678-3846
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Voltage | 3.3V dc | |
| Output Current | 85A | |
| Power Rating | 280.5W | |
| Number of Outputs | 1 | |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 278mm | |
| Width | 127mm | |
| Depth | 43mm | |
| Efficiency | 73% | |
| Weight | 1.7kg | |
| Minimum Temperature | -20°C | |
| Maximum Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Voltage 3.3V dc | ||
Output Current 85A | ||
Power Rating 280.5W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 278mm | ||
Width 127mm | ||
Depth 43mm | ||
Efficiency 73% | ||
Weight 1.7kg | ||
Minimum Temperature -20°C | ||
Maximum Temperature +60°C | ||
- COO (Country of Origin):
- TW
SP-480 Series Single Output Power Supply With PFC Function
High efficiency, long life and high reliability
High power density
Low profile - 43mm high
Built-in fan
Easy installation - screw terminals
Adjustable output voltage (-5% to +10%)
Remote ON-OFF control
Remote sense
Power factor correction to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, over-load, over-voltage and over-temperature protection
High power density
Low profile - 43mm high
Built-in fan
Easy installation - screw terminals
Adjustable output voltage (-5% to +10%)
Remote ON-OFF control
Remote sense
Power factor correction to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, over-load, over-voltage and over-temperature protection
Note
De-rate above 55°C operating temperature.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Standards
EN 60950-1, UL 60950-1
Approvals
TUV, CB, UL recognised component for Canada & US
