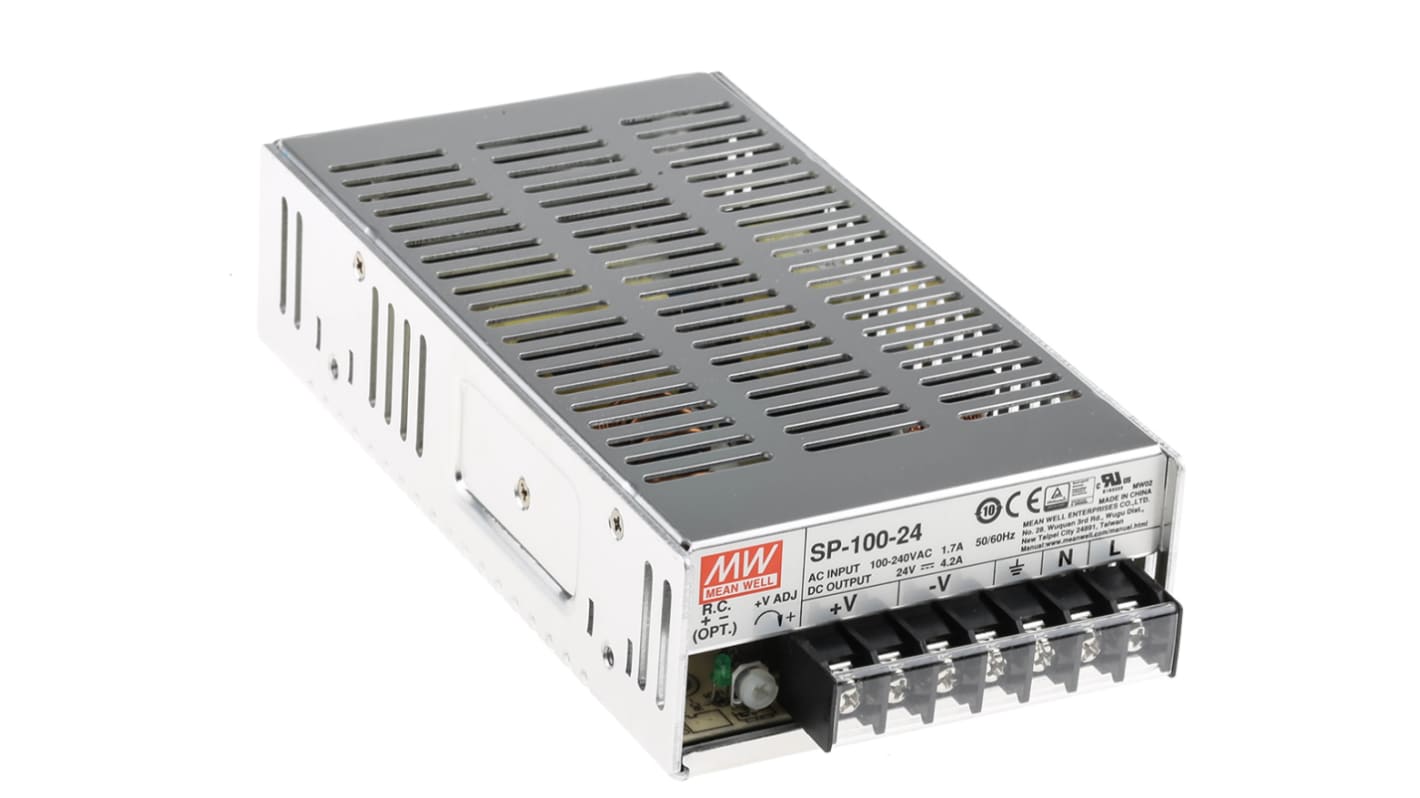

Mean Well Switching Power Supply, SP-100-24, 24V dc, 4.2A, 100.8W, 1 Output, 120 → 370 V dc, 85 → 264 V

View all Switching Power Supplies
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
MEAN WELL Switching Power Supply, RSP-100-24, 24V dc, 4.2A, 100.8W, 1 Output, 120 → 370 V dc, 85 → 264 V
RS Stock No.
815-7450

Each

£62.15

(exc. VAT)

£74.58

(inc. VAT)

RS Stock No.:
678-3809
Mfr. Part No.:
SP-100-24
Brand:
Mean Well
Find similar products by selecting one or more attributes.
Select all

Brand

Mean Well

Output Voltage

24V dc

Output Current

4.2A

Power Rating

100.8W

Number of Outputs

1

Input Voltage

120 → 370 V dc, 85 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

179mm

Width

99mm

Depth

45mm

Efficiency

84%

Weight

660g

Maximum Temperature

+60°C

Minimum Temperature

-10°C

COO (Country of Origin):
CN

SPC-100 Series Single Output with PFC Function


Universal AC input / full range
Built-in active PFC function, PF>0.93
Protections: Short circuit, Overload, Over voltage
Built-in constant current limiting circuit
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz

Note

De-rating 4% per °C above 50°C for forced air cooling with 18CFM fan on horizontal mounting. MTBF to MIL-HDBK-217F.

Approvals

UL, TUV, CB.
