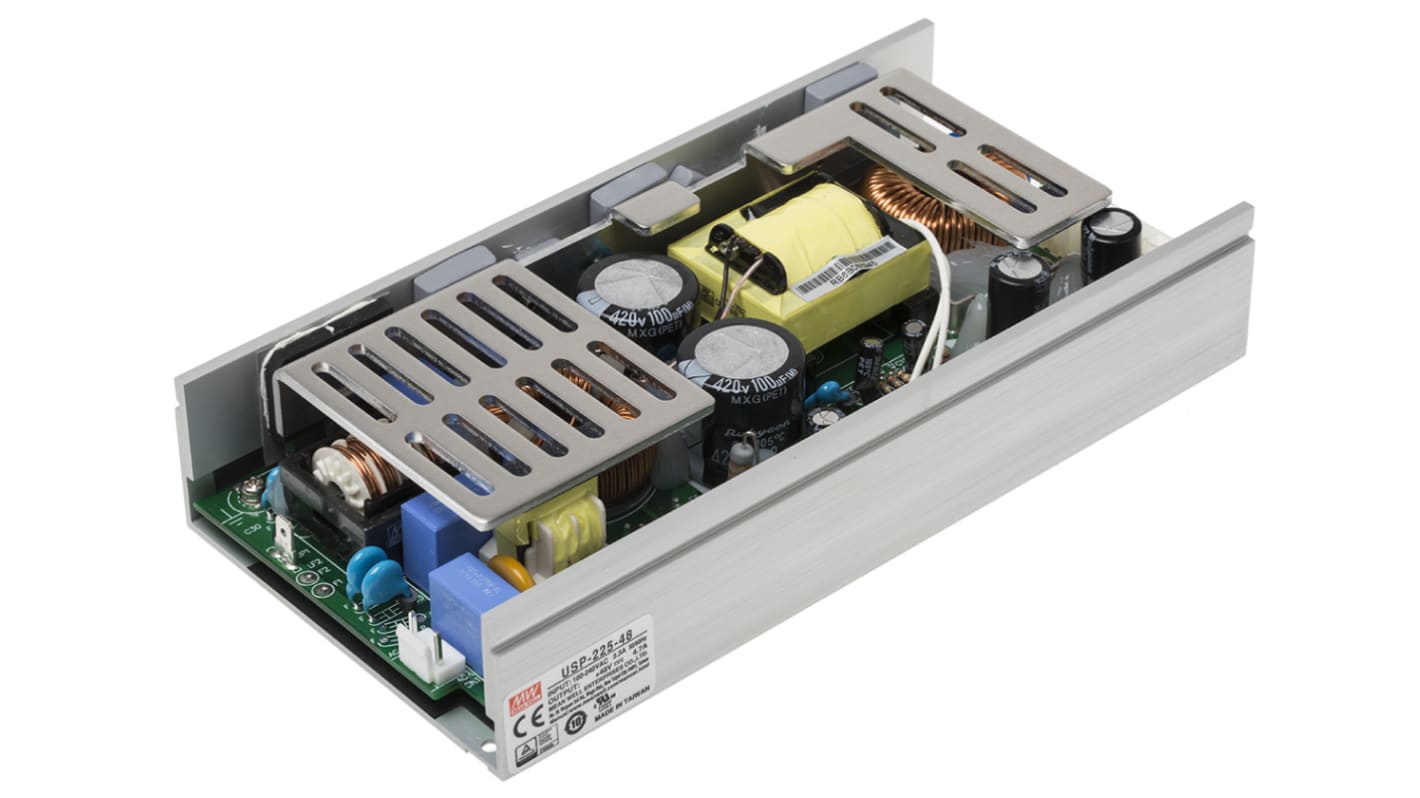

Mean Well Switching Power Supply, USP-225-48, 48V dc, 4.7A, 225.6W, 1 Output, 127 → 370 V dc, 90 → 264 V
- RS Stock No.:
- 678-3745
- Mfr. Part No.:
- USP-225-48
- Brand:
- Mean Well
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 678-3745
- Mfr. Part No.:
- USP-225-48
- Brand:
- Mean Well
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mean Well | |
| Output Voltage | 48V dc | |
| Output Current | 4.7A | |
| Power Rating | 225.6W | |
| Number of Outputs | 1 | |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | U Bracket | |
| Length | 202mm | |
| Width | 101.5mm | |
| Depth | 38mm | |
| Efficiency | 86% | |
| Weight | 850g | |
| Maximum Temperature | +65°C | |
| Minimum Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Mean Well | ||
Output Voltage 48V dc | ||
Output Current 4.7A | ||
Power Rating 225.6W | ||
Number of Outputs 1 | ||
Input Voltage 127 → 370 V dc, 90 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type U Bracket | ||
Length 202mm | ||
Width 101.5mm | ||
Depth 38mm | ||
Efficiency 86% | ||
Weight 850g | ||
Maximum Temperature +65°C | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- TW
225W, USP-225 Series, Universal Input, U-Bracket, Single Output
Universal AC input / Full range
Built in active PFC circuit compliance to EN61000-3-2
Protections: Short circuit, Overload, Over voltage, Over temperature
Free air convection for 150W and forced air convection for 225W
High power density 4.7W/in³
Active AC surge current limiting
U-bracket low profile:38mm
Built in active PFC circuit compliance to EN61000-3-2
Protections: Short circuit, Overload, Over voltage, Over temperature
Free air convection for 150W and forced air convection for 225W
High power density 4.7W/in³
Active AC surge current limiting
U-bracket low profile:38mm
Note
MTBF to MIL-HDBK-217F.
Approvals
UL, TUV, CB.
