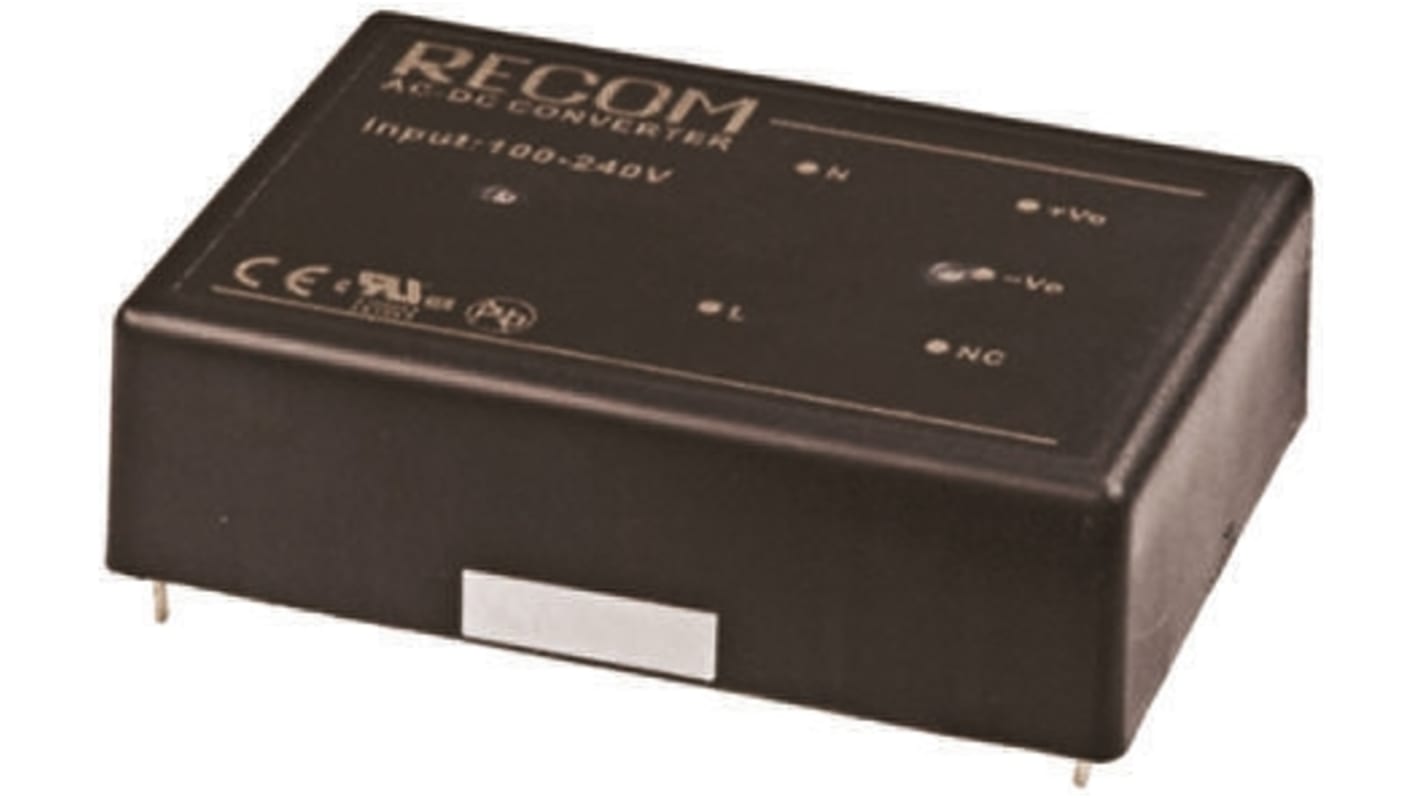

Recom Embedded Switch Mode Power Supply SMPS, RAC30-12SA, 12V dc, 2.5A, 30W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 675-5090
- Mfr. Part No.:
- RAC30-12SA
- Brand:
- Recom
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£51.35
(exc. VAT)
£61.62
(inc. VAT)
- RS Stock No.:
- 675-5090
- Mfr. Part No.:
- RAC30-12SA
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 12V dc | |
| Output Current | 2.5A | |
| Power Rating | 30W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 89mm | |
| Width | 63.5mm | |
| Depth | 25mm | |
| Efficiency | 82% | |
| Maximum Temperature | +70°C | |
| Weight | 212g | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 12V dc | ||
Output Current 2.5A | ||
Power Rating 30W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 89mm | ||
Width 63.5mm | ||
Depth 25mm | ||
Efficiency 82% | ||
Maximum Temperature +70°C | ||
Weight 212g | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- TW
Recom 30W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC Series
Compact PCB mount power supply
Universal Input 90-264Vac or 120-370Vdc
3000Vac isolation
Low output ripple and noise
EMC compliance to EN 55022 Class B
Short circuit protection
Universal Input 90-264Vac or 120-370Vdc
3000Vac isolation
Low output ripple and noise
EMC compliance to EN 55022 Class B
Short circuit protection
Note
MTBF to MIL-HDBK-217F.
Derate output power above 50°C.
Derate output power above 50°C.
Standards
UL-60950-1
Approvals
UL Recognised
