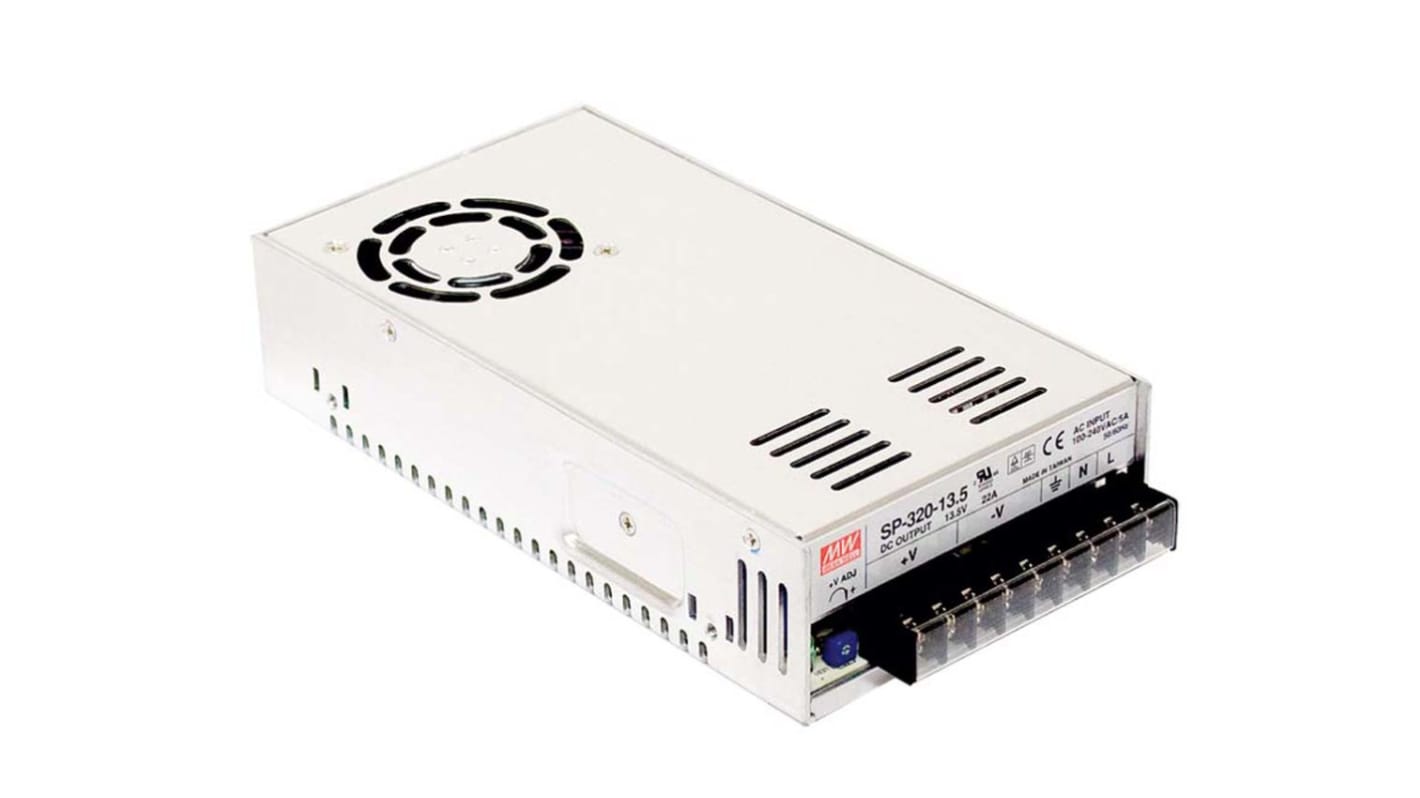

Mean Well Switching Power Supply, SP-320-13.5, 13.5V dc, 22A, 297W, 1 Output, 124 → 370 V dc, 88 → 264 V
- RS Stock No.:
- 644-8183
- Mfr. Part No.:
- SP-320-13.5
- Brand:
- Mean Well
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£51.17
(exc. VAT)
£61.40
(inc. VAT)
- RS Stock No.:
- 644-8183
- Mfr. Part No.:
- SP-320-13.5
- Brand:
- Mean Well
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mean Well | |
| Output Voltage | 13.5V dc | |
| Output Current | 22A | |
| Power Rating | 297W | |
| Number of Outputs | 1 | |
| Input Voltage | 124 → 370 V dc, 88 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 215mm | |
| Width | 115mm | |
| Depth | 50mm | |
| Efficiency | 86% | |
| Weight | 1.1kg | |
| Minimum Temperature | -20°C | |
| Maximum Temperature | +65°C | |
| Select all | ||
|---|---|---|
Brand Mean Well | ||
Output Voltage 13.5V dc | ||
Output Current 22A | ||
Power Rating 297W | ||
Number of Outputs 1 | ||
Input Voltage 124 → 370 V dc, 88 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 215mm | ||
Width 115mm | ||
Depth 50mm | ||
Efficiency 86% | ||
Weight 1.1kg | ||
Minimum Temperature -20°C | ||
Maximum Temperature +65°C | ||
- COO (Country of Origin):
- CN
SP-200 Series and SP-300 Series, Universal Input, Single Output
High efficiency, long life and high reliability
Built-in constant current limiting circuit, suitable for battery charging - SP-200 series only
Built-in fan with speed control
Remote ON-OFF control, SP-200 series (optional), SP-240 (built in)
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage
Power factor correction to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, over-load, over-voltage and over-temperature protection
Built-in constant current limiting circuit, suitable for battery charging - SP-200 series only
Built-in fan with speed control
Remote ON-OFF control, SP-200 series (optional), SP-240 (built in)
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage
Power factor correction to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, over-load, over-voltage and over-temperature protection
Note
Derate output 2% per °C above 50°C.
Depth does not include terminal block.
Depth does not include terminal block.
Standards
EN 60950, UL 60950
Approvals
UL recognised, TUV, CB
