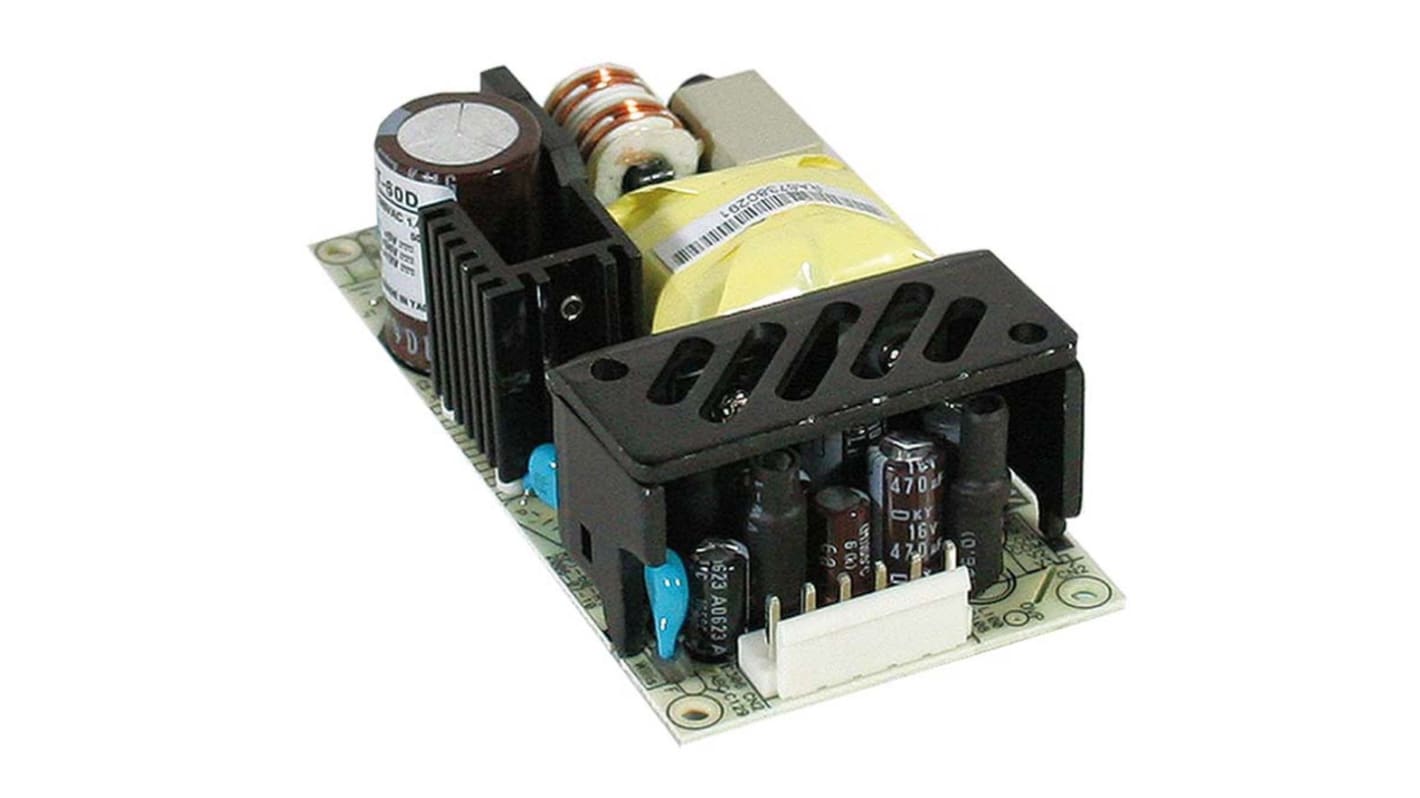

MEAN WELL Switching Power Supply, RPT-6003, 3.3 V dc, 5 V dc, 3 A, 5 A, 700mA, 39.9W, Triple Output, 127 → 370 V
- RS Stock No.:
- 644-7231
- Mfr. Part No.:
- RPT-6003
- Brand:
- MEAN WELL
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 644-7231
- Mfr. Part No.:
- RPT-6003
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 3.3 V dc, 5 V dc | |
| Output Current | 3 A, 5 A, 700mA | |
| Power Rating | 39.9W | |
| Number of Outputs | 3 | |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Open Frame | |
| Length | 101.6mm | |
| Width | 50.8mm | |
| Medical Approved | Yes | |
| Depth | 29mm | |
| Minimum Temperature | -20°C | |
| Weight | 150g | |
| Maximum Temperature | +65°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 3.3 V dc, 5 V dc | ||
Output Current 3 A, 5 A, 700mA | ||
Power Rating 39.9W | ||
Number of Outputs 3 | ||
Input Voltage 127 → 370 V dc, 90 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 101.6mm | ||
Width 50.8mm | ||
Medical Approved Yes | ||
Depth 29mm | ||
Minimum Temperature -20°C | ||
Weight 150g | ||
Maximum Temperature +65°C | ||
- COO (Country of Origin):
- CN
RPT-60 Series, Universal Input, 2x4inch, Triple Output
Miniature size 2x4 inch, high power density
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Medical safety approved
Low leakage current <200μA
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, overload and overvoltage protection
10% extra 'peak current' rating for 10 seconds, on all outputs
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Medical safety approved
Low leakage current <200μA
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, overload and overvoltage protection
10% extra 'peak current' rating for 10 seconds, on all outputs
Note
De-rating 2% per°C above 40°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Approvals
TUV, CB, UL recognised component for Canada & US
Standards
EN 60601-1, UL 60601-1
