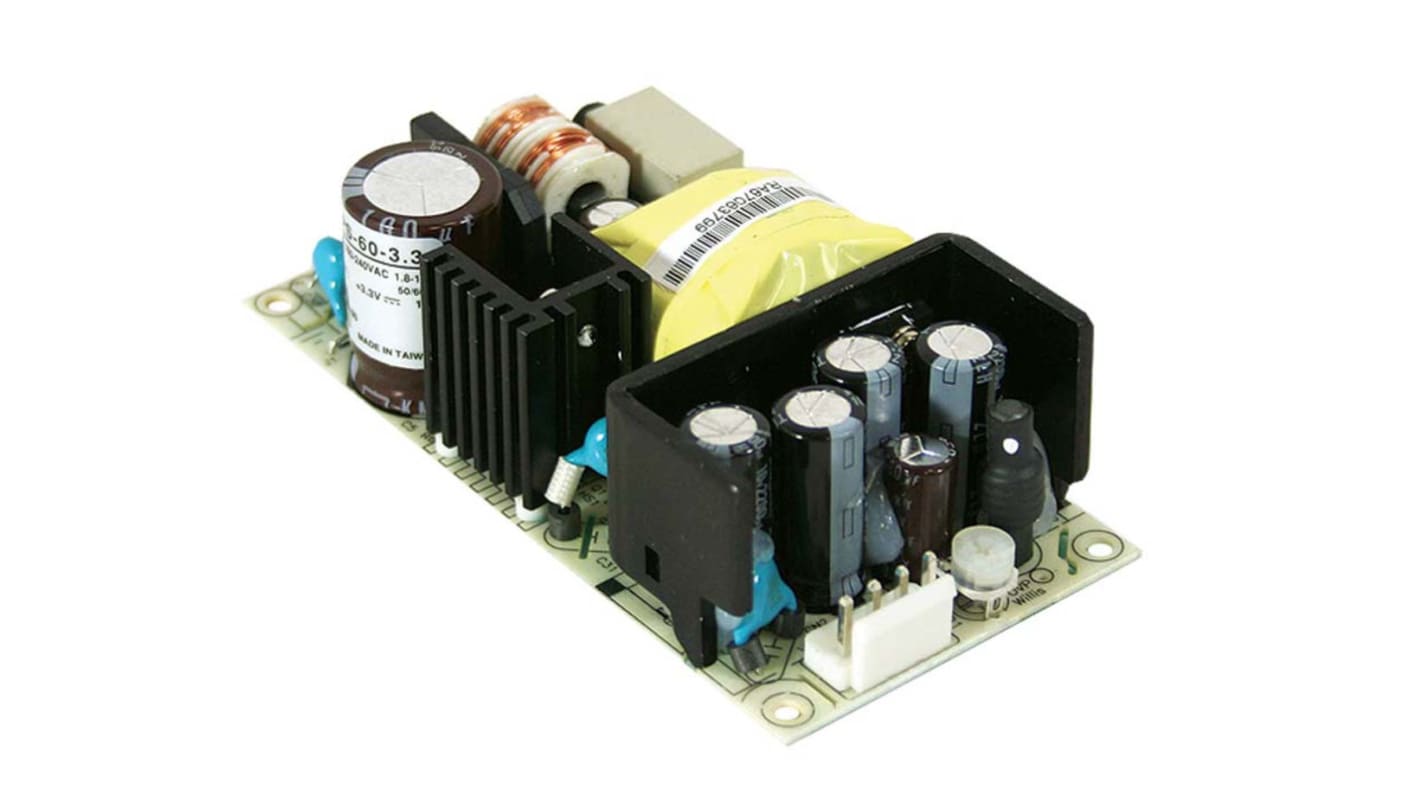

MEAN WELL Switching Power Supply, RPS-60-24, 24V dc, 2.5A, 60W, 1 Output, 127 → 370 V dc, 90 → 264 V ac
- RS Stock No.:
- 644-7180
- Mfr. Part No.:
- RPS-60-24
- Brand:
- MEAN WELL
30 In stock - FREE next working day delivery available
17 available from Europe for delivery within 1 working day(s).
Added
Price Each
£19.56
(exc. VAT)
£23.47
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £19.56 |
| 5 - 9 | £19.07 |
| 10 - 24 | £18.60 |
| 25 - 49 | £18.11 |
| 50 + | £16.62 |
- RS Stock No.:
- 644-7180
- Mfr. Part No.:
- RPS-60-24
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RPS-60 Series, Universal Input, 2x4inch, Single Output
Miniature size 2x4 inch, high power density
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Energy saving power supply
No load power consumption <0.75W
Medical safety approved
Low leakage current <200μA
Adjustable output voltage (-5 to +10%)
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, overload and overvoltage protection
10% extra 'peak current' rating for 10 seconds
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Energy saving power supply
No load power consumption <0.75W
Medical safety approved
Low leakage current <200μA
Adjustable output voltage (-5 to +10%)
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, overload and overvoltage protection
10% extra 'peak current' rating for 10 seconds
Note
De-rating 2% per °C above 50°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Approvals
TUV, CB, UL recognised component for Canada & US
Standards
EN 60601-1, UL 60601-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 2.5A |
| Power Rating | 60W |
| Number of Outputs | 1 |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 101.6mm |
| Width | 50.8mm |
| Medical Approved | Yes |
| Depth | 29mm |
| Minimum Temperature | -20°C |
| Maximum Temperature | +70°C |
| Weight | 150g |
- RS Stock No.:
- 644-7180
- Mfr. Part No.:
- RPS-60-24
- Brand:
- MEAN WELL
