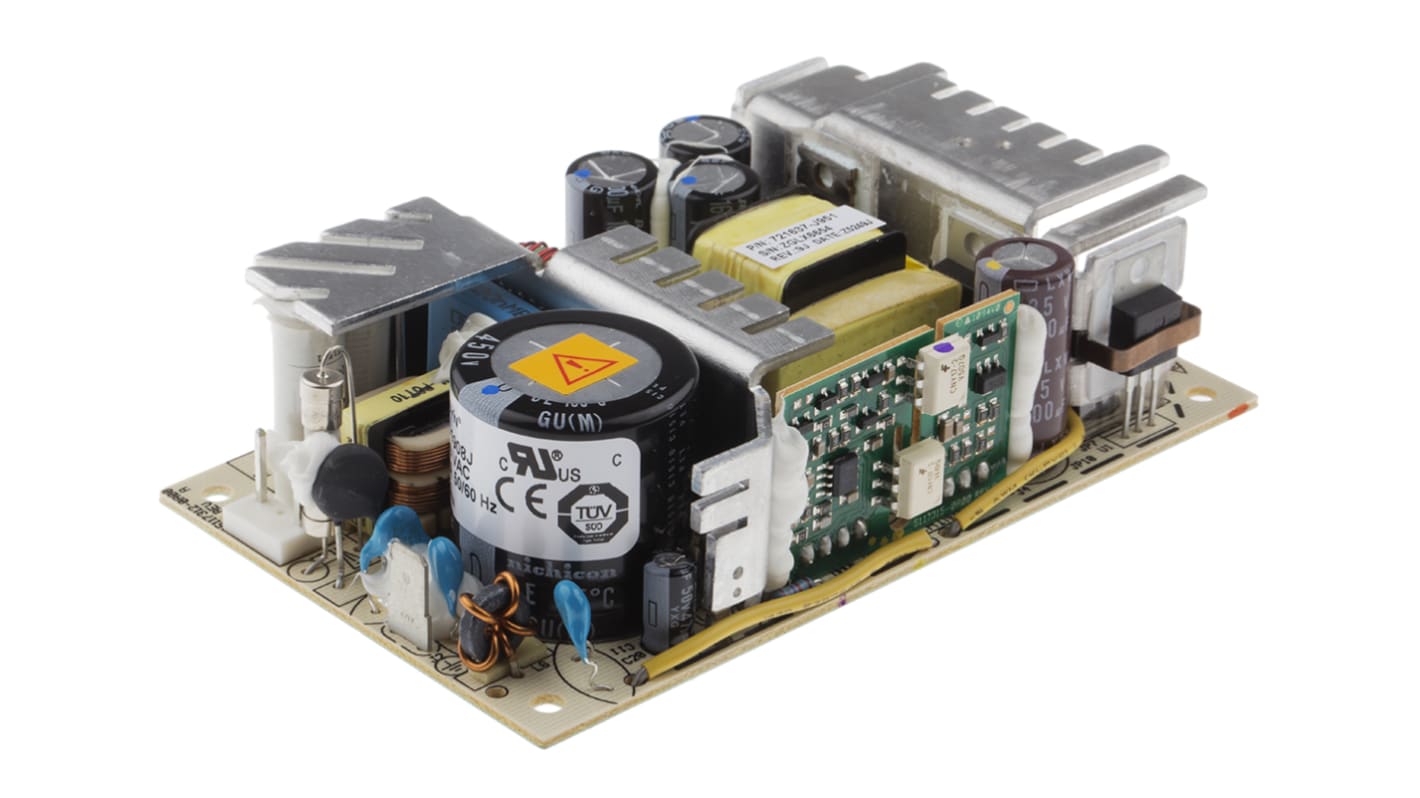

Artesyn Embedded Technologies Switching Power Supply, NLP65-9908J, 5 V dc, ±12 V dc, 2.5 A, 7 A, 500mA, 65W, Triple
- RS Stock No.:
- 629-5816
- Mfr. Part No.:
- NLP65-9908J
- Brand:
- Artesyn Embedded Technologies
Bulk discount available
Subtotal (1 unit)*
£56.31
(exc. VAT)
£67.57
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 9 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £56.31 |
| 5 - 9 | £54.06 |
| 10 - 24 | £52.37 |
| 25 - 49 | £49.55 |
| 50 + | £46.17 |
*price indicative
- RS Stock No.:
- 629-5816
- Mfr. Part No.:
- NLP65-9908J
- Brand:
- Artesyn Embedded Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Artesyn Embedded Technologies | |
| Output Voltage | 5 V dc, ±12 V dc | |
| Output Current | 2.5 A, 7 A, 500mA | |
| Power Rating | 65W | |
| Number of Outputs | 3 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Open Frame | |
| Length | 127mm | |
| Width | 76.2mm | |
| Depth | 32mm | |
| Efficiency | 72% | |
| Weight | 283g | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand Artesyn Embedded Technologies | ||
Output Voltage 5 V dc, ±12 V dc | ||
Output Current 2.5 A, 7 A, 500mA | ||
Power Rating 65W | ||
Number of Outputs 3 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 127mm | ||
Width 76.2mm | ||
Depth 32mm | ||
Efficiency 72% | ||
Weight 283g | ||
Maximum Temperature +70°C | ||
Minimum Temperature 0°C | ||
65W Universal Input, Single/Multi Output NLP Medical Series
Full medical safety approvals
Small size - high power density
Long life - MTBF >150000 hours
EN55022-A conducted and radiated noise
Over voltage & short circuit protection
Ideal for use in medical, laboratory and dental applications, such as centrifuges, incubators and infusion pumps
Small size - high power density
Long life - MTBF >150000 hours
EN55022-A conducted and radiated noise
Over voltage & short circuit protection
Ideal for use in medical, laboratory and dental applications, such as centrifuges, incubators and infusion pumps
Note
MTBF to MIL-HDBK-217F.
Standards
EN60601, UL2601, CSA 22.2 No.125
Approvals
VDE, UL recognised, CSA certified
