Cosel Switching Power Supply, PBW50F-15-N, ±15V dc, 1.7A, 51W, Dual Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 603-1167
- Mfr. Part No.:
- PBW50F-15-N
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£87.31
(exc. VAT)
£104.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £87.31 |
| 5 - 9 | £84.69 |
| 10 - 24 | £82.95 |
| 25 - 49 | £81.19 |
| 50 + | £79.44 |
*price indicative
- RS Stock No.:
- 603-1167
- Mfr. Part No.:
- PBW50F-15-N
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | ±15V dc | |
| Output Current | 1.7 A, 2.4A | |
| Power Rating | 51W | |
| Number of Outputs | 2 | |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 136.5mm | |
| Width | 34.5mm | |
| Depth | 82.5mm | |
| Efficiency | 81 %, 83 % | |
| Minimum Temperature | -10°C | |
| Weight | 280g | |
| Maximum Temperature | +71°C | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage ±15V dc | ||
Output Current 1.7 A, 2.4A | ||
Power Rating 51W | ||
Number of Outputs 2 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 136.5mm | ||
Width 34.5mm | ||
Depth 82.5mm | ||
Efficiency 81 %, 83 % | ||
Minimum Temperature -10°C | ||
Weight 280g | ||
Maximum Temperature +71°C | ||
- COO (Country of Origin):
- JP

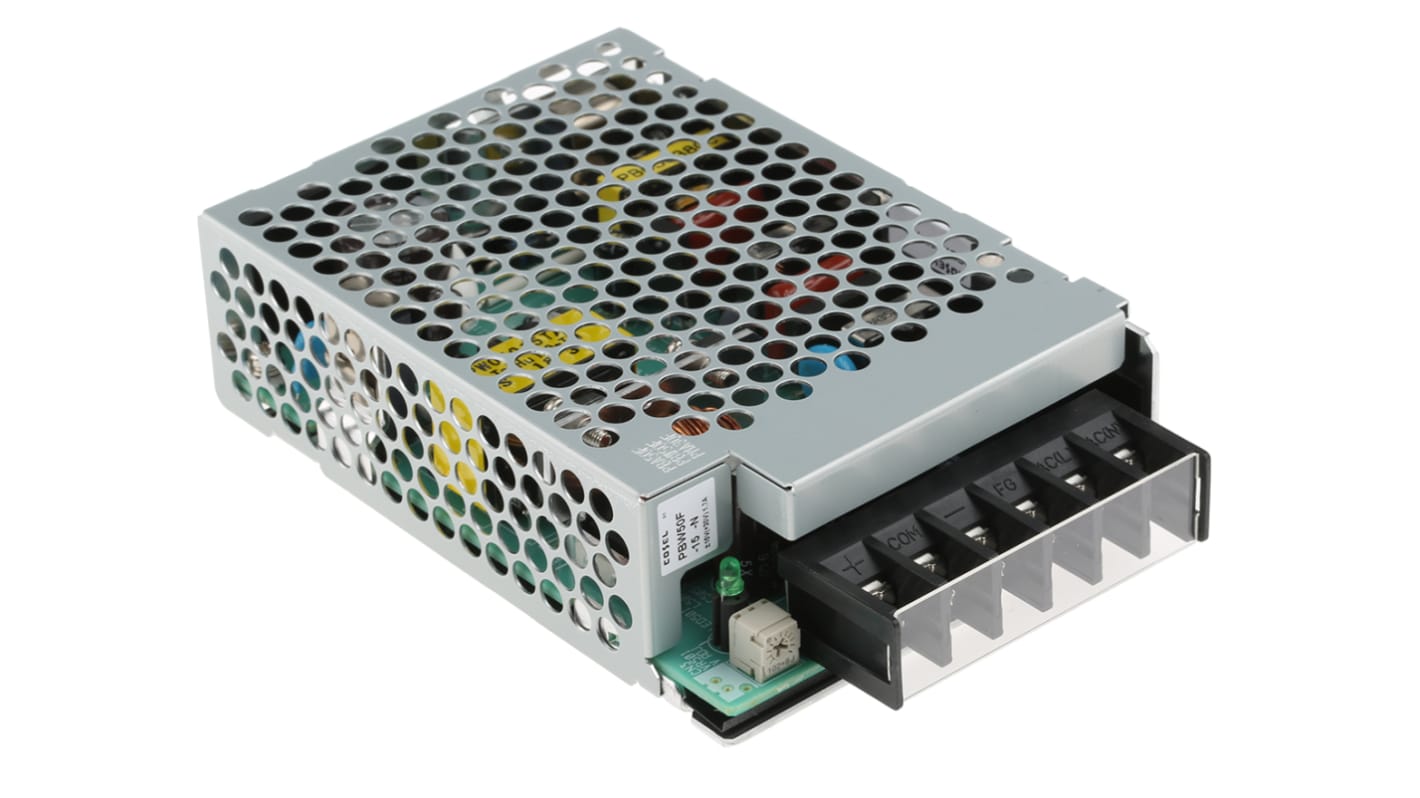

Cosel Embedded Switch Mode Power Supply
The Cosel PBW series 51W dual output AC to DC embedded switch-mode power supply has an output current of 1.7A at 15VDC and 2.4A at -15VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC or 120VDC to 370VDC.
Note:
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations.
Note:
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations.
Features and Benefits
Lightweight and incredibly compact
Harmonic attenuator built-in overcurrent protection
PFC function
Parallel operation and parallel redundancy
Convection cooled
Enclosed package type
Chassis mount
Harmonic attenuator built-in overcurrent protection
PFC function
Parallel operation and parallel redundancy
Convection cooled
Enclosed package type
Chassis mount
Certifications
UL60950-1 (at only AC input)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)
