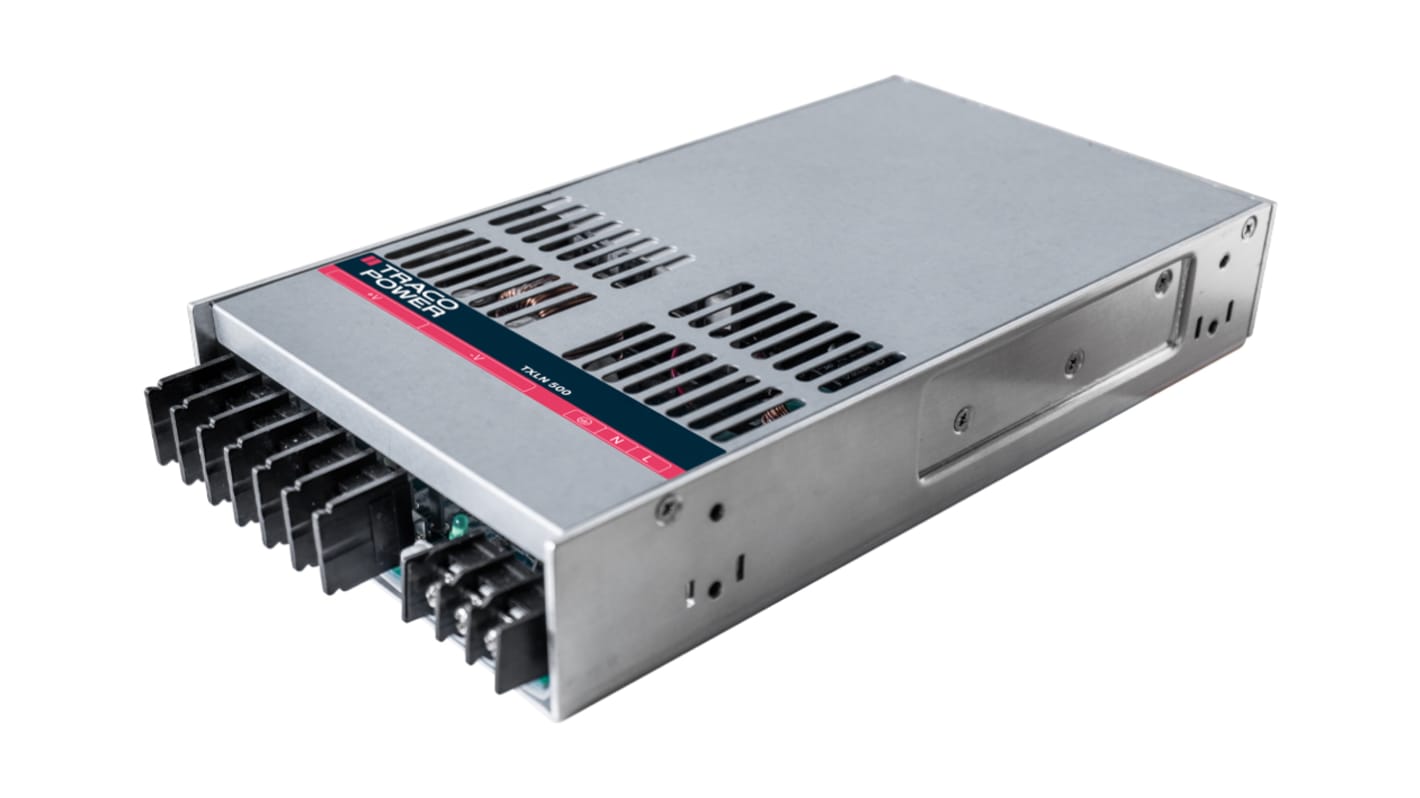

TRACOPOWER Power Supply, TXLN 500-105 5V dc, 41700 mA, 500 W, Input 85V ac to 264V ac
- RS Stock No.:
- 284-7790
- Distrelec Article No.:
- 302-25-061
- Mfr. Part No.:
- TXLN 500-105
- Brand:
- TRACOPOWER
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 284-7790
- Distrelec Article No.:
- 302-25-061
- Mfr. Part No.:
- TXLN 500-105
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Power Supply | |
| Maximum Output Voltage | 5V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 500W | |
| SMPS Output Current | 41700 mA | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Weight | 1110g | |
| Standards/Approvals | IEC 62368-1, EN 62368-1, UL 62368-1 | |
| Maximum Input Voltage | 264V ac | |
| Series | TXLN 500 | |
| Efficiency | 91% | |
| Output Current | 90A | |
| Minimum Input Voltage | 85V ac | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Power Supply | ||
Maximum Output Voltage 5V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 500W | ||
SMPS Output Current 41700 mA | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Weight 1110g | ||
Standards/Approvals IEC 62368-1, EN 62368-1, UL 62368-1 | ||
Maximum Input Voltage 264V ac | ||
Series TXLN 500 | ||
Efficiency 91% | ||
Output Current 90A | ||
Minimum Input Voltage 85V ac | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- TW
The TRACOPOWER family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive
Compact metal case with screw terminal block
High efficiency
Short circuit, overvoltage and overload protection
Remote On or Off and Remote Sense
